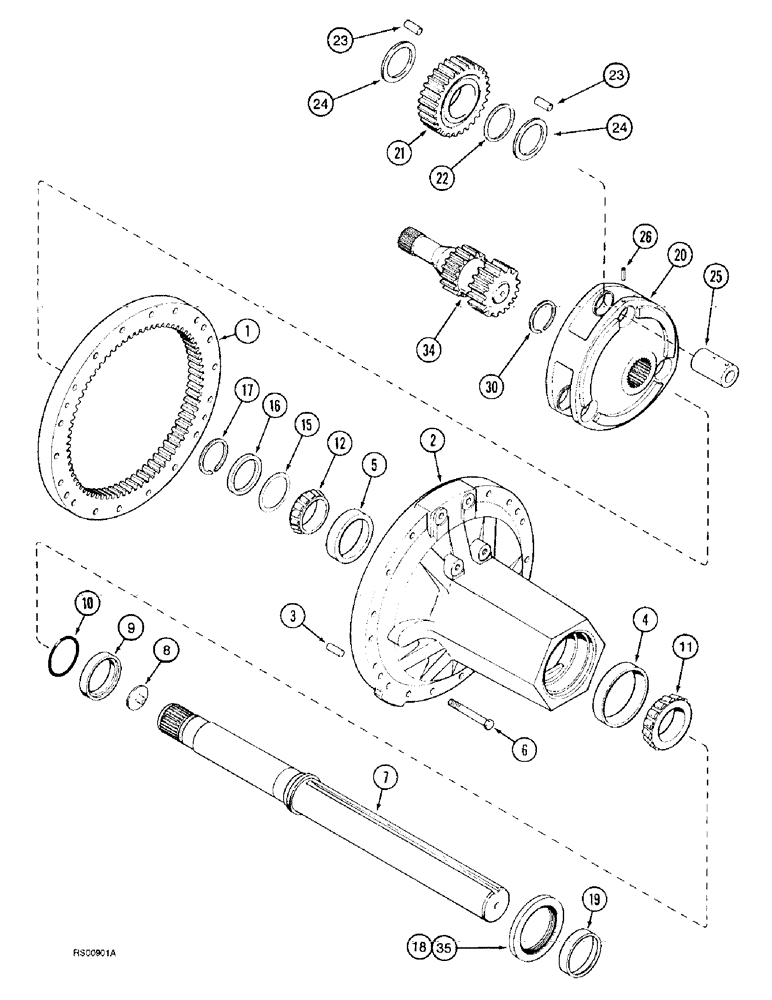

Запчасти Case IH 8920 (6-068) - REAR AXLE AND CARRIER, 4 X 96 INCH AND 4 X 112 INCH AXLE (06) - POWER TRAIN

1

120942C2

GEAR

ring, 72 teeth

2шт.

2

1968489C1

CARRIER

ASSEMBLY - axle, Includes: Ref. 3 thru 5

2шт.

3

837-16040

DOWEL,M16 x 40

PIN dowel, 16 x 40 mm, hardened

2шт.

4

630899C1

BEARING CUP

CUP tapered roller, bearing

2шт.

5

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

CUP tapered roller, bearing

2шт.

6

813-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 - 2.0 x 120 mm

32шт.

7

1968339C3

SHAFT ASSY.

AXLE ASSEMBLY - rear, 4 x 96 inch, Includes: Ref. 8 and 9

2шт.

7

1968338C4

SHAFT

AXLE ASSEMBLY - rear, 4 x 112 inch, Includes: Ref. 8 and 9

2шт.

8

1981270C1

INSERT

rear axle

1шт.

9

1968334C1

BUSHING,100.41mm ID x 119.85mm OD x 19.5mm L

bearing spacer

1шт.

10

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

2шт.

11

630874C1

ROLLER BEARING,99.99mm ID x 41mm W

CONE tapered roller, bearing

2шт.

12

123869R1

ROLLER BEARING,95.263 mm ID x 36.535 mm

CONE tapered roller, bearing

2шт.

15

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

Bearing 0.760mm Thk

1шт.

15

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

Bearing 0.300mm Thk

1шт.

15

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

bearing, 0.18 mm

1шт.

15

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

Bearing 0.100mm Thk

1шт.

15

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

Bearing (0.06 to 0.09 mm) 0.076mm Thk

1шт.

16

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

thrust

2шт.

17

1277020C2

RING

retaining

2шт.

94547C1

SEAL KIT

KIT seal and sleeve, axle, Includes: Ref. 18 and 19

2шт.

18

92689C1

SEAL

oil, over size

1шт.

19

92687C1

SLEEVE

wear

1шт.

20

1349355C1

PINION CARRIER

CARRIER gear

1шт.

21

1349354C2

PINION

GEAR - planet, 27 teeth

6шт.

22

1349348C1

THRUST RING

RING thrust

6шт.

23

1349353C1

NEEDLE BEARING

BEARING needle

348шт.

24

1997886C1

THRUST WASHER

WASHER, thrust

12шт.

25

1349352C1

SHAFT

bearing

6шт.

26

838-3826

PIN,M8 x 26, Coiled

6шт.

30

101-11350

SNAP RING,#350, Ext

RING, SNAP, #350, Ext

2шт.

34

1981238C1

SHAFT

sun gear

2шт.

35

84842C1

OIL SEAL,120mm ID x 160.23mm OD x 12mm Thk

SEAL oil

2шт.
