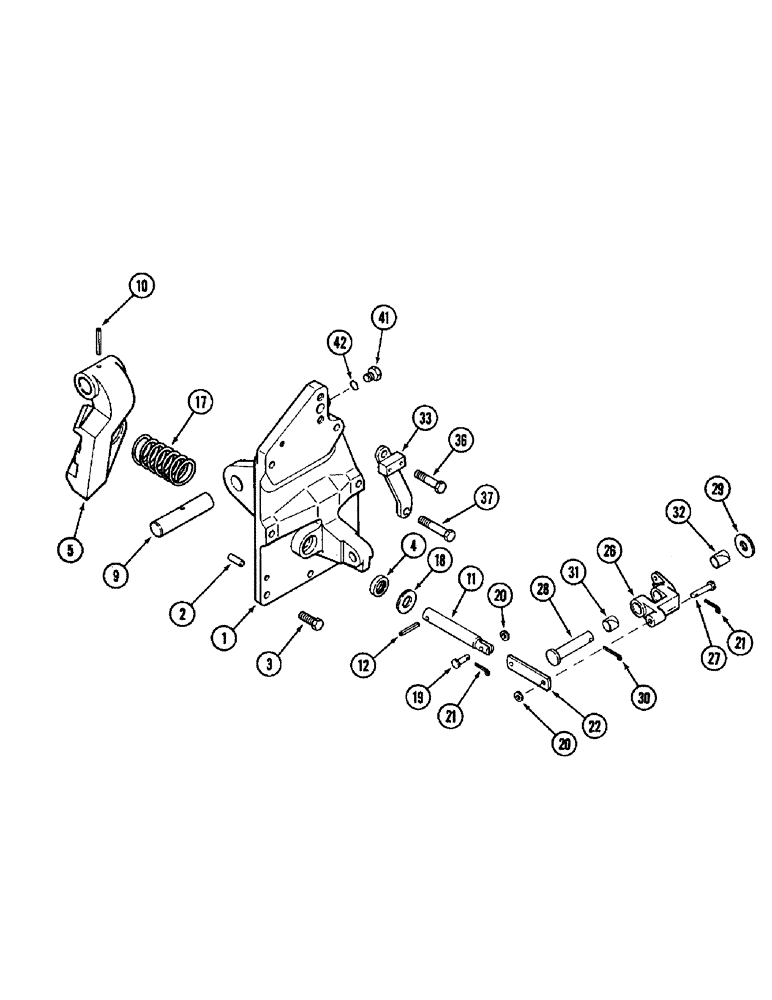

Запчасти Case IH 8920 (6-052) - TRANSMISSION, PARK LOCK (06) - POWER TRAIN

1

94809C3

COVER ASSY

COVER ASSEMBLY, lock, park, Includes: Ref. 2

1шт.

2

837-10025

DOWEL,M10 x 25

PIN - dowel, 10 x 25 mm, hardened

2шт.

3

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 30 mm

3шт.

3

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm

2шт.

4

G105118

OIL SEAL

oil

1шт.

5

94811C3

LEVER

pawl, lock

1шт.

9

148740C1

SHAFT

- pawl, lock

1шт.

10

838-3645

PIN,M6 x 45, Coiled

roll, 6 x 45 mm

1шт.

11

94813C1

ROD

ASSEMBLY - pull, lever, Includes: Ref. 12

1шт.

12

838-3640

PIN,M6 x 40, Coiled

Roll 6 x 40 mm

1шт.

17

1968499C1

SPRING

holddown lock

1шт.

18

495-11081

WASHER,3/4", SAE

1шт.

19

527-201

CLEVIS PIN,8mm OD x 25mm L

PIN clevis, 8 x 25 mm

1шт.

21

732-2016

COTTER PIN,M2 x 16

PIN cotter, 2 x 16 mm

2шт.

22

148743C1

BAR

LINK - overcenter, lock

1шт.

26

1954042C2

DRIVE, ANGLE

BELLCRANK - overcenter

1шт.

27

729-835

CLEVIS PIN,M8 x 35

PIN clevis, 8 x 35 mm, hardened

1шт.

28

728-1680

CLEVIS PIN,M16 x 80

PIN clevis, 16 x 80 mm, hardened

1шт.

29

495-81175

WASHER,21/32" x 1" x .120"

flat, 21/32 x 1 x 7/64 inch

1шт.

30

732-4025

COTTER PIN,M4 x 25

PIN cotter, 4 x 25 mm

1шт.

31

94795C1

STRIP

BEARING bellcrank

1шт.

32

94796C1

BUSHING

bellcrank

1шт.

33

1334342C1

BRACKET

cable

1шт.

36

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm

1шт.

37

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

41

76349

PLUG,9/16" - 18 ORB

Incl. Ref 42 Hex Hd, 9/16"-18 ORB

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
