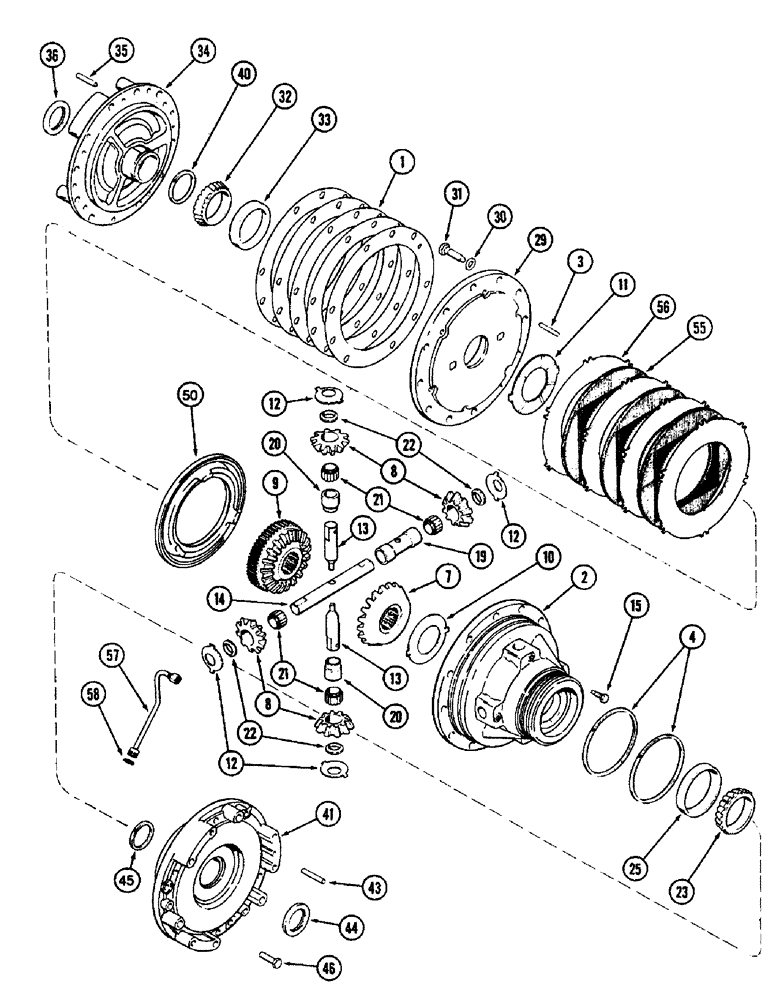

Запчасти Case IH 8920 (6-050) - TRANSMISSION, DIFFERENTIAL, 1997705C1 CASE (06) - POWER TRAIN

1

120513C2

SHIM,290mm ID x 388mm OD x 0.08mm Thk

retainer, 0.09 mm

1шт.

1

120512C2

SHIM

retainer, 0.1 mm

1шт.

1

120509C2

SHIM

retainer, 0.18 mm

1шт.

1

120510C2

SHIM

retainer, 0.31 mm

1шт.

1

120511C2

SHIM

retainer, 0.74 mm

1шт.

2

1997705C1

CAGE

CASE - differential, right

1шт.

3

137023A1

DOWEL

PIN dowel, 10 x 60 mm, hardened

6шт.

4

148939C1

SEALING RING,OD 200.60 mm

RING seal

2шт.

7

1264796C2

GEAR

bevel, differential, 20 teeth

1шт.

8

92905C1

PINION

GEAR - differential, 10 teeth

4шт.

9

1264795C2

GEAR

lock, 20 teeth, bevel

1шт.

10

92767C1

THRUST WASHER,82mm ID x 142mm OD x 1.6mm Thk

thrust

1шт.

11

92768C1

THRUST WASHER,88mm ID x 160mm OD x 1.6mm Thk

thrust

1шт.

12

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

thrust

4шт.

13

92906C1

SHORT SHAFT

SHAFT pinion, long

2шт.

14

92907C1

SHAFT

pinion, short

1шт.

15

1997421C1

BOLT

- pin

2шт.

19

1289349C1

SPACER

pinion, long

1шт.

20

1289350C1

SPACER

pinion, short

2шт.

21

1270697C1

NEEDLE BEARING

BEARING needle

112шт.

22

1289348C1

RING

thrust

4шт.

23

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE tapered roller

1шт.

25

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP tapered roller

1шт.

29

229593A1

COVER

case, differential, Replaces: P/N 92800C2

1шт.

30

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

31

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

12шт.

32

67250C1

ROLLER BEARING,89.99mm ID x 35mm W

CONE tapered roller, bearing

1шт.

33

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

CUP tapered roller, bearing

1шт.

34

92892C1

BEARING CAP

bearing, left

1шт.

35

136433A1

DOWEL,M12 x 65mm, HDN

PIN dowel, 12 x 65 mm, hardened

5шт.

36

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

oil

1шт.

40

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

seal

2шт.

41

1997368C1

RETAINER

bearing, right

1шт.

43

136433A1

DOWEL,M12 x 65mm, HDN

PIN dowel, 12 x 65 mm, hardened

5шт.

44

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

oil

1шт.

45

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

seal

1шт.

46

613-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

3шт.

46

613-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

3шт.

50

1997422C1

PISTON

lock, differential

1шт.

55

120679C1

PLATE

friction

3шт.

56

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

separator

4шт.

57

1264894C1

HYD TUBE,9.52 mm OD, 212, 64 mm Length

TUBE pressure, lock

1шт.

58

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
