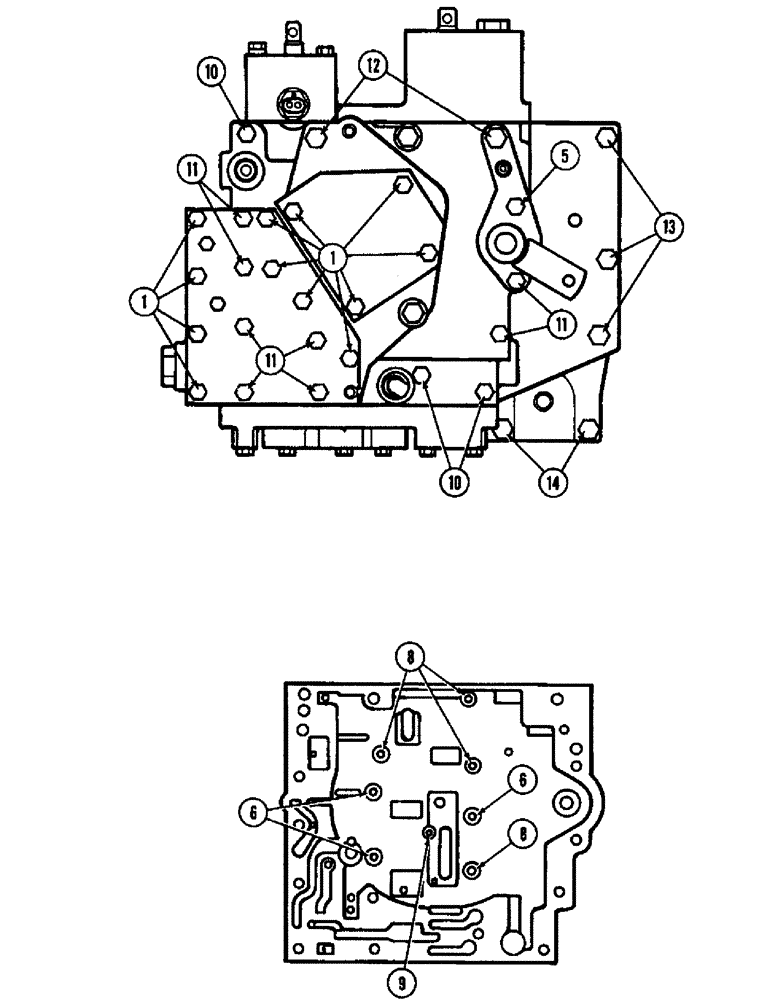

Запчасти Case IH 8920 (6-038) - TRANSMISSION CONTROL VALVE ASSEMBLY, VALVE BOLTS AND PATTERN (06) - POWER TRAIN

103182A1

VALVE, CONTROL

VALVE ASSEMBLY - transmission control without creeper, Includes: Ref. 1 thru 6

1шт.

103183A1

VALVE, CONTROL

VALVE ASSEMBLY - transmission control, with creeper, Includes: Ref. 1 thru 6

1шт.

1

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

12шт.

5

828-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

- hex, 8 - 1.25 x 120 mm, class 10.9, without manual shuttle shift

1шт.

5

828-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 10.9

- hex, 8 - 1.25 x 140 mm, class 10.9 with manual shuttle shift

1шт.

6

862-8055

HEX SOC SCREW,M8 x 55mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 55 mm, class 12.9

3шт.

8

861-8070

HEX SOC SCREW,M8 x 70mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 70 mm, class 12.9

4шт.

9

862-6070

HEX SOC SCREW,M6 x 70mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 70 mm, class 12.9

1шт.

10

828-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

- hex, 8 - 1.25 x 120 mm, class 10.9

3шт.

11

828-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 10.9

- hex, 8 - 1.25 x 140 mm, class 10.9

8шт.

12

814-10175

SCREW,Hex, M10 x 1.5 x 175mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 175 mm

2шт.

13

813-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

- hex, 10 - 1.5 x 65 mm

3шт.

14

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

- hex, 10 - 1.5 x 55 mm

4шт.
