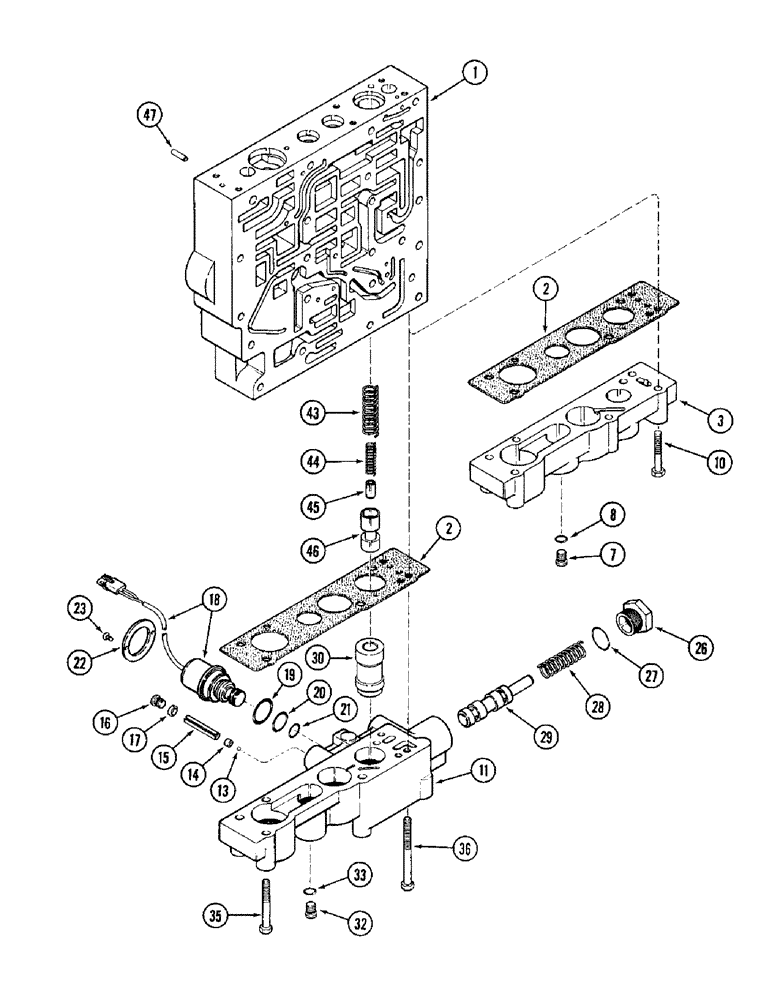

Запчасти Case IH 8920 (6-034) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION, CREEPER VALVE BODY AND LOWER PLATE (06) - POWER TRAIN

103182A1

VALVE, CONTROL

VALVE ASSEMBLY - transmission control, without creeper, Includes: Ref. 1 thru 47

1шт.

103183A1

VALVE, CONTROL

VALVE ASSEMBLY - transmission control, with creeper, Includes: Ref. 1 thru 47

1шт.

1

1543207C3

BODY

ASSEMBLY - transmission control valve, see Figure 6-030

1шт.

2

1968260C3

GASKET,1.02mm Thk

lower plate and valve body

1шт.

3

1981070C1

PLATE ASSY.

PLATE lower, without creeper

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Without creeper, Includes Ref. 8 Hex Soc, 3/8"-24 ORB

2шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

10

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8)

6шт.

1981301C2

VALVE

ASSEMBLY - creeper, Includes: body assembly and Ref. 11 thru 33

1шт.

1968248C3

BODY

ASSEMBLY - creeper valve, Includes: Ref. 11 thru 17

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - creeper valve

1шт.

13

211-1007

BALL,7/32" Dia

- chrome alloy steel, 7/32", Gr 24

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - check valve

1шт.

15

38-11622

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

1шт.

16

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 17 Hex Soc, 3/8"-24 ORB

7шт.

17

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

18

1958159C2

SOLENOID VALVE

SOLENOID ASSEMBLY - drive, creeper, Includes: Ref. 19 thru 21

1шт.

19

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

20

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

1шт.

21

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

22

1968281C1

RETAINER

solenoid valve

1шт.

23

940-148

SCREW,Pan Cross Recess, M4 x 8mm, Cl 4.8

machine, pan Phillips, 4 - .7 x 8 mm

2шт.

26

1963881C1

PLUG

hex, 1-1/16-12 inch

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

28

1968250C2

COMPRESSION SPRING

SPRING compression

1шт.

29

1981127C3

SPOOL

creeper valve

1шт.

30

1981071C1

PLUG

valve body, with creeper

1шт.

32

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 33 Hex Soc, 3/8"-24 ORB

2шт.

33

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

35

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8)

3шт.

36

813-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 - 1.25 x 80 mm, creeper only

3шт.

43

1963814C1

SPRING

compression, creeper only

1шт.

44

1963815C1

SPRING

compression, creeper only

1шт.

45

1981089C1

STOP

spool, creeper only

1шт.

46

1981068C1

SPOOL

blocker, creeper only

1шт.

47

837-6016

DOWEL,M6 x 16

PIN dowel, 6 x 16 mm, hardened, without creeper

1шт.
