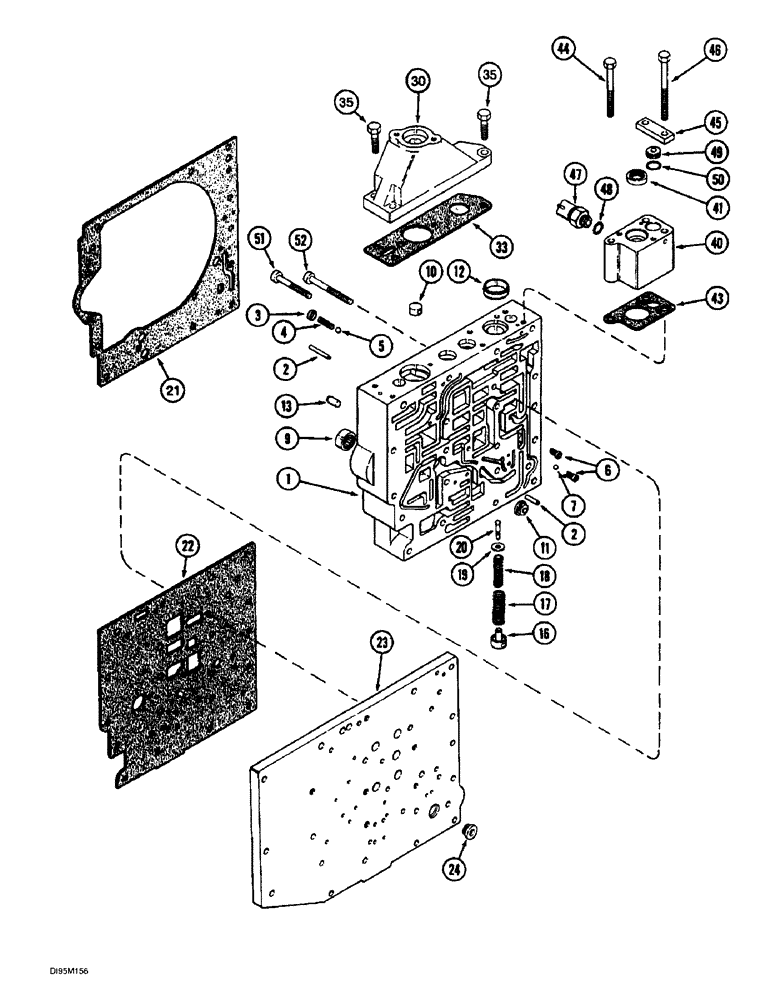

Запчасти Case IH 8920 (6-030) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION AND BODY PLATE (06) - POWER TRAIN

103182A1

VALVE, CONTROL

VALVE ASSEMBLY - transmission control, without creeper, Includes: body assembly and Ref. 1 thru 52

1шт.

103183A1

VALVE, CONTROL

VALVE ASSEMBLY - transmission control, with creeper, Includes: body assembly and Ref. 1 thru 52

1шт.

1543207C3

BODY

ASSEMBLY - transmission control valve, Includes: Ref. 1 thru 20

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

837-6035

DOWEL,M6 x 35

PIN dowel, 6 x 35 mm, hardened

2шт.

3

41-108

PLUG,Cup, 1/2"

cup, 1/2 inch diameter

1шт.

4

92972C3

SPRING

relief

1шт.

5

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24

1шт.

6

133519C1

SCREEN

filter

2шт.

7

511-1060

BALL,6mm Dia

6 mm, grade 28, chrome alloy steel

2шт.

9

D65128

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 9.53mm W

BEARING needle

1шт.

10

1286222C1

STOP

spool

1шт.

11

1994615C2

VALVE, CHECK

VALVE check

1шт.

12

1963809C1

SPACER

spring

1шт.

13

37-1610

PIN,3/8" x 5/8"

- dowel, 3/8 x 5/8 inch, hardened

2шт.

1963844C1

STOP

ASSEMBLY - spool, Includes: Ref. 16 thru 20

1шт.

16

NSS

NOT SOLD SEPARAT

STOP - spool

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - outer, detent

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - inner, detent

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - retaining, spring

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - retaining, spring

1шт.

21

1986857C1

GASKET,0.53mm Thk

, Serial Range: housing-body

1шт.

22

1994584C2

GASKET,0.53mm Thk

, Serial Range: body-plate

1шт.

23

117731A2

LARGE PLATE

PLATE ASSEMBLY - body, aluminum, Includes: Ref. 24

1шт.

24

1994615C2

VALVE, CHECK

VALVE check

1шт.

30

1543349C2

HOUSING ASSY.

HOUSING ASSEMBLY control, clutch, Includes: Ref. 31

1шт.

31

1963807C1

SEAL,15.88mm ID x 31.85mm OD x 6.35mm Thk

stem

1шт.

33

1286180C6

GASKET,0.88mm Thk

housing

1шт.

35

615-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 30 mm

3шт.

40

94806C3

HOUSING ASSY.

HOUSING ASSEMBLY, spool, Includes: Ref. 41

1шт.

41

1963843C1

SEAL,14.28mm ID x 25.5mm OD x 6.35mm Thk

spool

1шт.

43

93053C3

GASKET,0.79mm Thk

housing

1шт.

44

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

1шт.

45

94797C1

LARGE PLATE

PLATE housing

1шт.

46

813-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 - 1.25 x 80 mm

2шт.

47

1983218C2

SWITCH

neutral start, Includes: Ref. 48

1шт.

49

94799C1

PLUG

housing

1шт.

50

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

51

862-8055

HEX SOC SCREW,M8 x 55mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 55 mm, class 12.9, see Figure 6-038

3шт.

52

861-8070

HEX SOC SCREW,M8 x 70mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 70 mm, class 12.9, see Figure 6-038

4шт.

52

862-6070

HEX SOC SCREW,M6 x 70mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 70 mm, class 12.9, see Figure 6-038

1шт.

48

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
