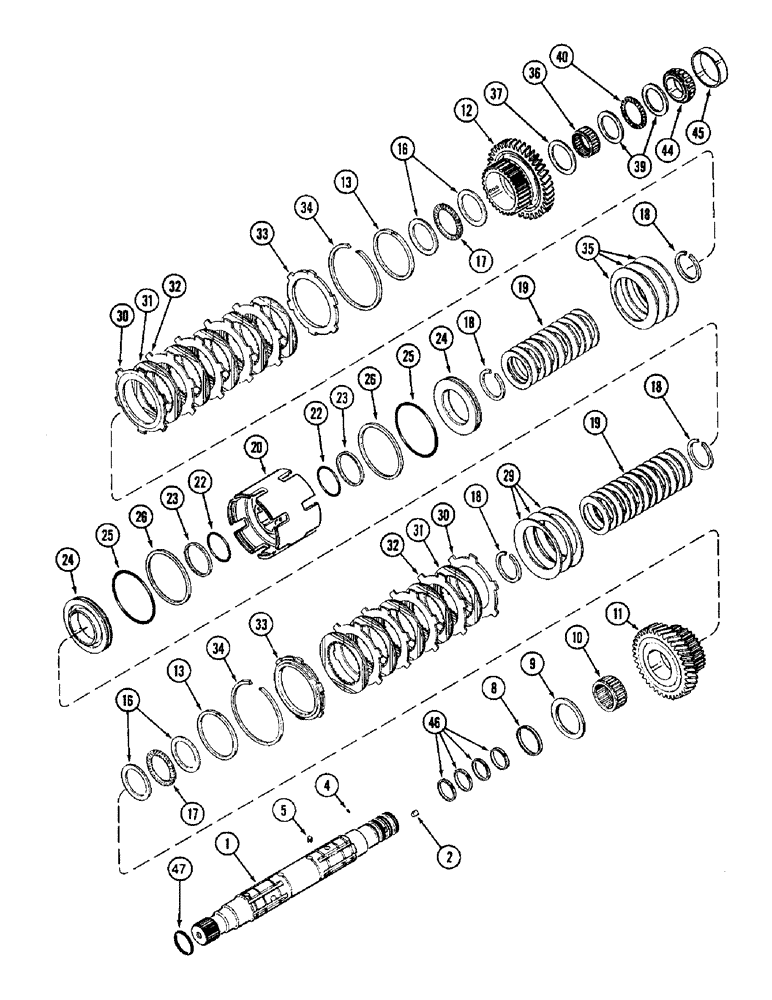

Запчасти Case IH 8920 (6-014) - TRANSMISSION SPEED, OUTPUT SHAFT AND FRONT CLUTCH (06) - POWER TRAIN

1

230135A1

SHAFT

ASSEMBLY - output, Includes: Ref. 2, 4 and 5

1шт.

2

1342852C1

PLUG

sealing, 12 mm

3шт.

4

38-3605

PIN,3/32" x 5/16", Coiled

6шт.

5

1963875C1

COTTER PIN

PIN slotted spring

4шт.

8

1286040C2

SEAL,63.6mm ID x 69.8mm OD x 6.5mm Thk

support

1шт.

9

1997888C1

THRUST WASHER,70.25mm ID x 95mm OD x 3.13mm Thk

WASHER thrust

1шт.

10

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

BEARING needle, caged

1шт.

11

1285985C1

GEAR

GEAR odd/even clutch and fifth, 34 teeth

1шт.

12

1285987C1

PINION

GEAR - driven, reverse, 39 teeth

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal

2шт.

16

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER thrust

4шт.

17

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING needle, thrust

2шт.

18

93350C1

RING

retaining

4шт.

19

1286012C2

BELLEVILLE WASHER

Belleville spring

24шт.

20

93304C2

CLUTCH HOUSING

CARRIER - clutch

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING piston, low clutch, inner

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

piston, clutch

2шт.

24

1285998C1

PISTON

clutch

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING piston, low clutch, outer

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift

2шт.

29

93129C1

BELLEVILLE WASHER

Belleville spring

3шт.

30

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction

2шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction

10шт.

32

92934C2

DISC

separator

8шт.

33

1342854C2

DISC

backing

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

RING retaining

2шт.

35

93129C1

BELLEVILLE WASHER

Belleville spring

3шт.

36

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

BEARING needle, caged

1шт.

37

1342513C1

SPACER

bearing

1шт.

39

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

WASHER thrust

2шт.

40

K620185

THRUST BEARING

BEARING needle, thrust

1шт.

44

219530H1

BEARING ASSY,49.99mm ID x 24.71mm W

CONE tapered, roller, bearing

1шт.

45

ST964

BEARING CUP,2.063" ID x 3.626" OD x 0.9768"

CUP tapered, roller, bearing

1шт.

46

1286024C1

SEALING RING,Locking, 46.61mm ID x 50.61mm OD x 2.87mm Thk

seal

4шт.

47

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1-3/4 ID x 1/8 inch wide

1шт.
