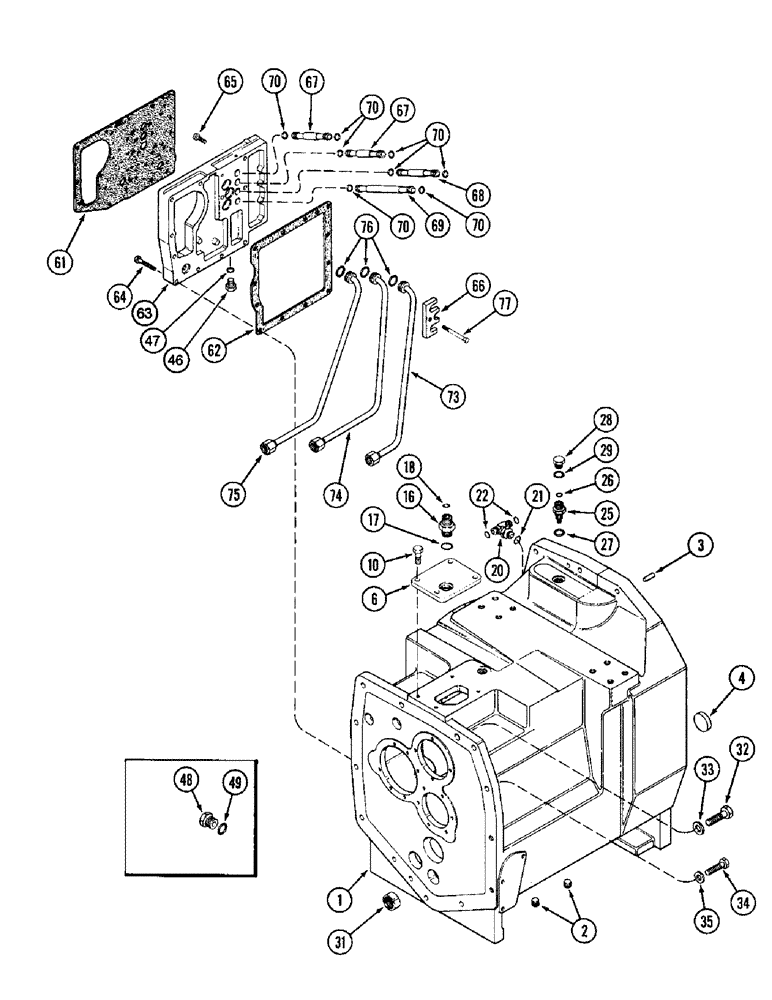

Запчасти Case IH 8920 (6-002) - CLUTCH HOUSING (06) - POWER TRAIN

1

93356C6

HOUSING

ASSEMBLY - clutch, Includes: Ref. 2 thru 4

1шт.

2

217-442

PLUG,3/4" - 14

hex socket headless, 3/4 inch PT, without MFD

1шт.

2

192792A1

PLUG

- square countersunk, 3/4 - 14 inch thread, with MFD

2шт.

3

837-12030

DOWEL,M12 x 30mm OAL

2шт.

4

30357R1

PLUG,M50, Tapered

tapered cup, 50 mm, without MFD

1шт.

6

1981205C1

COVER

lube

1шт.

10

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

16

131165A1

FITTING

lube, Includes: Ref. 17 thru 18

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 ID x 3/32 inch wide

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

9/16-18 adj O-ring boss branch x 11/16-16 inch face seal x face seal, Includes: Ref. 21 and 22

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

25

93105C1

UNION

ADAPTER - bulkhead, 13/16-16 face x 3/4-16 inch O-ring, with creep

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

214389

PLUG,3/4" - 16 ORB

without creep, Includes Ref. 29 Hex Hd, 3/4"-16 ORB

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

31

38834

ROLLER BEARING,Needle, 34.92mm ID x 41.29mm OD x 19.05mm W

BEARING needle

1шт.

32

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 20 - 2.5 x 60 mm, class 10.9, If used

1шт.

32

828-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

- hex, 20 - 2.5 x 90 mm, class 10.9, if used

1шт.

33

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, hardened, 22 x 37 x 4 mm

1шт.

34

813-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

replaces 813-16055 Hex, M16 x 60, 8.8, Full Thd

8шт.

34

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

35

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

9шт.

46

76349

PLUG,9/16" - 18 ORB

Incl. Ref 47 Hex Hd, 9/16"-18 ORB

3шт.

48

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 49 Hex Hd, 1 1/16"-12 ORB

1шт.

49

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

61

1994583C2

GASKET,0.53mm Thk

body plate to mounting plate

1шт.

62

144143C2

GASKET,0.79mm Thk

mounting plate to clutch housing

1шт.

63

1994609C2

LARGE PLATE

PLATE ASSEMBLY - mounting, transmission control valve, see Figure 6-026

1шт.

64

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

- hex, 10 - 1.5 x 55 mm

4шт.

65

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

2шт.

66

1286093C3

RETAINER

tube

1шт.

67

1963936C1

TUBE,12.95 mm ID, 17 mm OD

first, second, third and fourth speed

2шт.

68

1963937C1

TUBE,12.95 mm ID, 17 mm OD

fifth and sixth speed

1шт.

69

1963938C1

TUBE,12.95 mm ID, 17 mm OD

reverse

1шт.

70

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

8шт.

73

1286090C1

HYD TUBE

TUBE clutch, front low

1шт.

74

1286091C1

HYD TUBE,0.625" OD, 505.7, 141 mm Length

TUBE clutch, front medium

1шт.

75

1286092C1

HYD TUBE

TUBE clutch, front high

1шт.

76

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

3шт.

77

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

47

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
