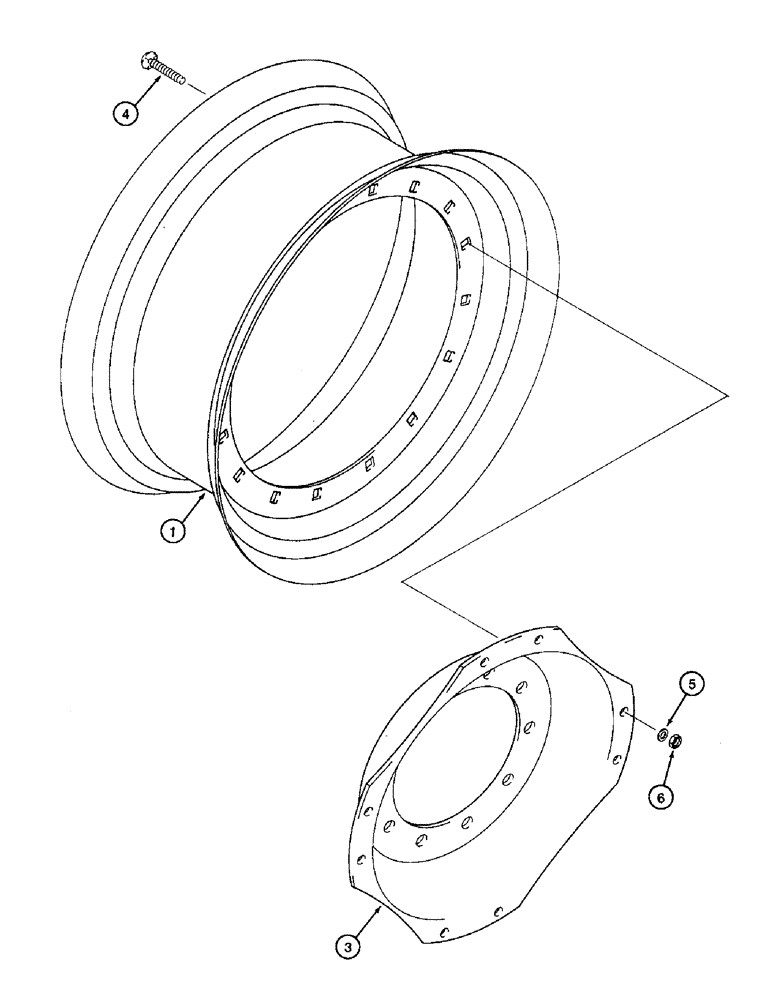

Запчасти Case IH 8920 (5-042) - FRONT WHEELS, MFD TRACTOR (05) - STEERING

239546A1

WHEEL ASSY.

WHEEL ASSEMBLY front, W15L x 26, for 16.9 and 18.4 x 26 tire, order from Machinery Price List

2шт.

1

231029A1

RIM

wheel, Replaces: P/N 240678A1

1шт.

3

240685A1

FLANGE

DISC - wheel

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT - special

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Replaces P/N 240675A1 M17.5 x 30 x 4, HT

8шт.

6

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10, Replaces: P/N 240674A1

8шт.

259365A1

WHEEL ASSY.

WHEEL ASSEMBLY front, W12L x 28, for 13.6 and 14.9 x 28 tire, order from Machinery Price List

2шт.

1

188326A1

RIM

wheel, Replaces: P/N 225408A1

1шт.

3

240677A1

WHEEL DISC

DISC - wheel

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT - special

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Replaces P/N 240675A1 M17.5 x 30 x 4, HT

8шт.

6

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10, Replaces: P/N 240674A1

8шт.

259366A1

WHEEL ASSY.

WHEEL ASSEMBLY front, W15L x 28, for 16.9 x 28 and 480/70R28 tire, order from Machinery Price List

2шт.

1

188333A1

RIM

wheel, Replaces: P/N 240680A1

1шт.

3

240677A1

WHEEL DISC

DISC - wheel

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT - special

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Replaces P/N 240675A1 M17.5 x 30 x 4, HT

8шт.

6

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10, Replaces P/N 240674A1

8шт.

259367A2

WHEEL

ASSEMBLY - front, DW18L x 28, for 600/65R28 tire, order from Machinery Price List

2шт.

1

188350A1

RIM

wheel, Replaces: P/N 240681A1

1шт.

3

240677A1

WHEEL DISC

DISC - wheel

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT - special

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Replaces P/N 240675A1 M17.5 x 30 x 4, HT

8шт.

6

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10, Replaces: P/N 240674A1

8шт.

259368A1

WHEEL ASSY

WHEEL ASSEMBLY front, DW13L x 30, for 14.9 x 30 tire, order from Machinery Price List

2шт.

1

188338A1

RIM

wheel Replaces: P/N 225412A1

1шт.

3

240677A1

WHEEL DISC

DISC - wheel

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT - special

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Replaces P/N 240675A1 M17.5 x 30 x 4, HT

8шт.

6

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10, Replaces: P/N 240674A1

8шт.

259369A1

WHEEL ASSY.

WHEEL ASSEMBLY front, DW15L x 30, for 16.9 x 30 and 480/70R30 tire, order from Machinery Price List

2шт.

1

188341A1

RIM

wheel, Replaces: P/N 240683A1

1шт.

3

240677A1

WHEEL DISC

DISC - wheel

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT - special

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Replaces P/N 240675A1 M17.5 x 30 x 4, HT

8шт.

6

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10, Replaces: P/N 240674A1

8шт.

228229A2

WHEEL ASSY.

WHEEL ASSEMBLY front, W10 x 34, order from Machinery Price List

2шт.

1

258255A1

RIM

wheel

1шт.

3

259373A1

WHEEL DISC

DISC - wheel

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT - special

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10

8шт.
