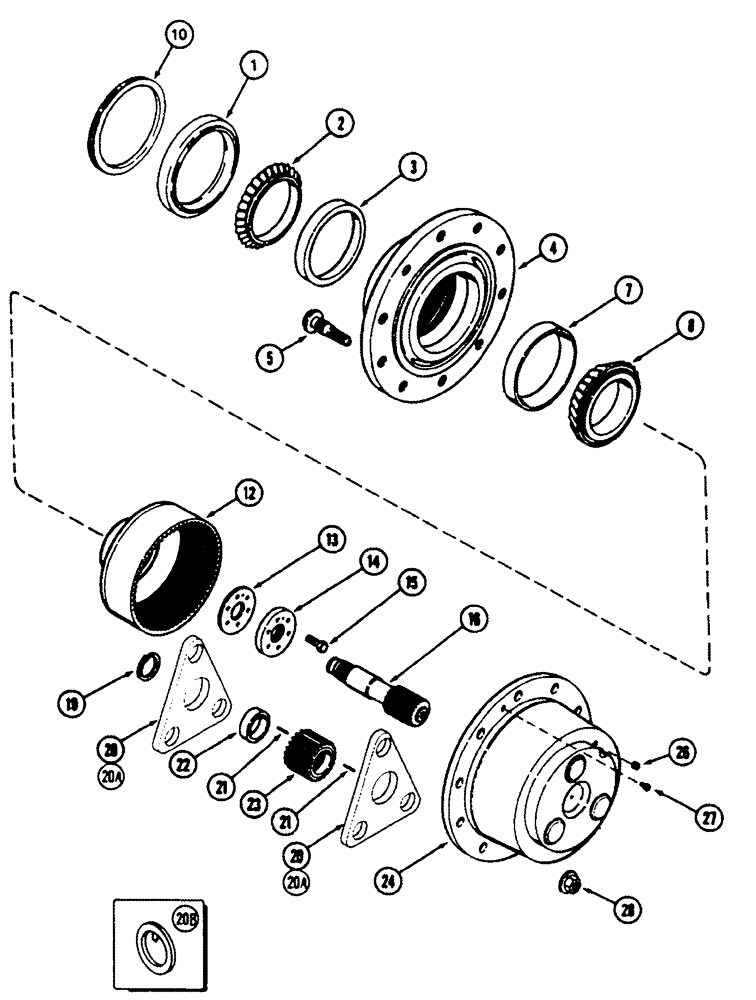

Запчасти Case IH 8920 (5-036) - FRONT AXLE PLANETARIES AND HUB, MFD TRACTOR (05) - STEERING

243302A1

AXLE, FRONT

AXLE ASSEMBLY - 30 kph, 4:10 ratio, see Figure 5-028 thru 5-038, If used, Includes: Ref. 1 thru 27

1шт.

243302A2R

REMAN-FRT AXLE wo DL

REMAN-FRONT Axle Remanfactured - Axle - 8910/20 11/96 Production Starting SN JJA0072001 30 KPH

1шт.

243302A2C

CORE-FRONT AXLE

Return Part Number

1шт.

243301A1

AXLE, FRONT

AXLE ASSEMBLY - 40 kph, 3:73 ratio, see Figure 5-028 thru 5-038, If used, Includes: Ref. 1 thru 27

1шт.

243301A2R

REMAN-AXLE

REMAN - Axle - 7210/20 Production 2/92 & 2/96. 7210/20 Prod. 2/97 & 8910/20 11/96 Starting S/N JJA0072001 40 KPH

1шт.

243301A2C

CORE-AXLE

Return Part Number

1шт.

1

128648A1

OIL SEAL

SEAL oil, wheel hub

2шт.

2

1277343C1

ROLLER BEARING,107.963 mm ID x 158.763 mm OD x 23.122 mm

CONE tapered roller, inner

2шт.

3

1277344C1

BEARING CUP

CUP tapered roller, inner

2шт.

4

231022A1

HUB

HUB front wheel

2шт.

5

231023A1

STUD,M20 x 1.5 x 67mm, Class 8.8

BOLT - wheel

20шт.

7

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

CUP tapered roller bearing, outer

2шт.

8

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

CONE tapered roller, outer

2шт.

10

1349339C1

SEAL,171mm ID x 187mm OD x 12mm Thk

SEAL V-ring

2шт.

12

1277250C1

GEAR, RING

RING, GEAR GEAR planetary ring

2шт.

252358A1

SHIM KIT

KIT - wheel end, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.001 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.002 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.005 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.010 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.020 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.030 inch (Set of 5)

1шт.

14

251190A1

LARGE PLATE

PLATE, LARGE PLATE retaining, planet carrier

2шт.

15

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 40, 10.9, Full Thd

12шт.

16

250728A1

SUN GEAR,Planetary Drive

GEAR planetary drive

2шт.

16

250728A1R

REMAN-GEAR

GEAR planetary drive

2шт.

16

250728A1C

CORE-GEAR

RETURN NUMBER

2шт.

249415A1

WHEEL GEAR

GEAR ASSEMBLY - drive, planetary, planetary gears retained by two P/N 1342869C1 spacers, no longer available, order P/N 322436A1 gear assembly, Includes: Ref. 19 thru 26

2шт.

291058A1

PINION

GEAR ASSEMBLY - drive, planetary, planetary gears reatined by one P/N 1342869C1 spacer and three P/N 291066A1 keyed washers, no longer available, order P/N 322436A1 gear assembly, Includes: Ref. 19 thru 26

2шт.

322436A1

GEAR WHEEL

GEAR ASSEMBLY - drive, planetary, planetary gears retained by two P/N 322432A1 spacers, Replaces: P/N 249415A1 and P/N 291058A1 gear assemblies, Includes: Ref. 19 thru 26

2шт.

19

102-12175

SNAP RING,#175, 1.673", Ext Spiral

RING external spiral retaining, No. 175

3шт.

20

1342869C1

SPACER

SPACER flat, 2 pieces used with P/N 249414A1 carrier, one piece used with P/N 291055A1 carrier

1-2шт.

20a

322432A1

SPACER

SPACER flat, one piece used with P/N 291055A1 carrier, 2 pieces used with P/N 322434A1 carrier

1-2шт.

20b

291066A1

WASHER

WASHER keyed, no longer available, order one piece of P/N 322432A1 spacer

3шт.

21

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

BEARING

476шт.

22

1277371C1

SPACER

SPACER bearing

3шт.

23

1349038C1

PINION

GEAR - planetary

3шт.

24

249414A1

FLANGE

CARRIER - planetary gears, no longer available, order P/N 322436A1 gear assemblies

1шт.

24

291055A1

FLANGE

CARRIER - planetary gears, no longer available, order P/N 322434A1 carrier below and two pieces of P/N 322432A1 spacer

1шт.

24

322434A1

FLANGE

CARRIER - planetary gears

1шт.

26

221-887

PLUG

PLUG square socket, 3/4 inch PT

1шт.

27

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

SCREW - hex, socket, 6 - 1.0 x 20 mm, class 12.9

4шт.

28

230856A1

FLANGE NUT

NUT hex, flange, wheel

20шт.
