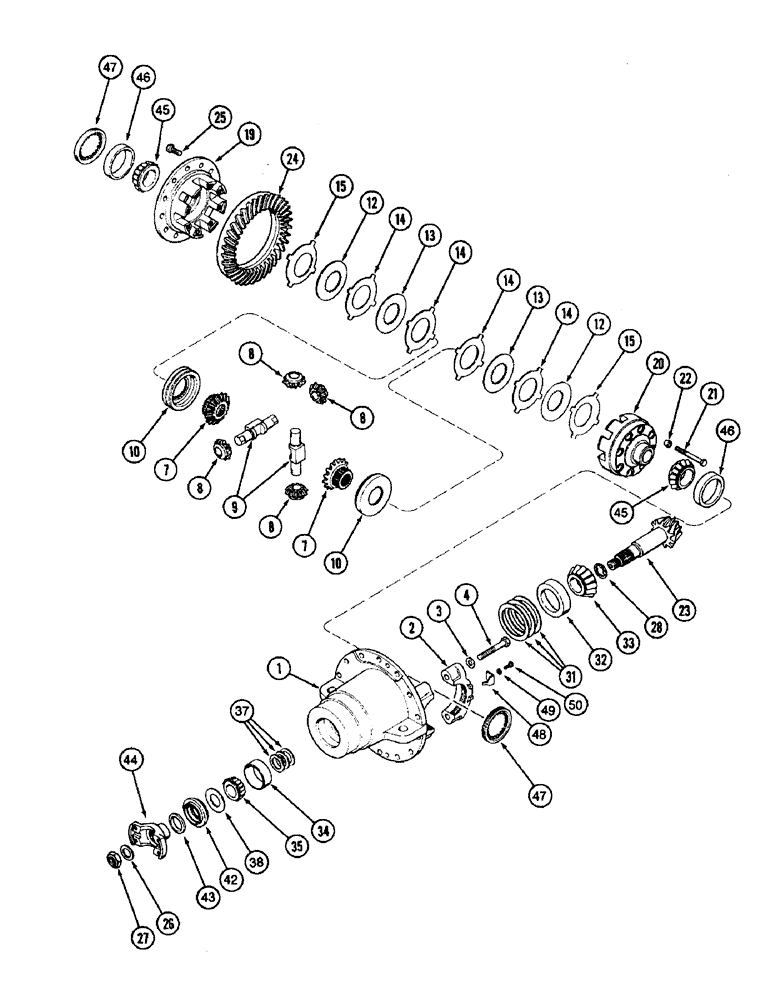

Запчасти Case IH 8920 (5-032) - CARRIER AND DIFFERENTIAL, MFD TRACTOR (05) - STEERING

243302A1

AXLE, FRONT

AXLE ASSEMBLY front, 30 kph, 4:10 ratio, see Figures 5-028 thru 5-038, If used, Includes: carrier assemblies and Ref. 1 thru 50

1шт.

243302A2R

REMAN-FRT AXLE wo DL

REMAN-FRONT Axle Remanufactured - Axle - 8910/20 11/96 Production Starting SN JJA0072001 30 KPH

1шт.

243302A2C

CORE-FRONT AXLE

Return Part Number

1шт.

243301A1

AXLE, FRONT

Axle Assembly front, 40 kph, 3:73 ratio, see Figures 5-028 thru 5-038, If used, Includes: carrier assemblies and Ref. 1 thru 50

1шт.

243301A2R

REMAN-AXLE

REMAN - Axle - 7210/20 Production 2/92 & 2/96. 7210/20 Prod. 2/97 & 8910/20 11/96 Starting S/N JJA0072001 40 KPH

1шт.

243301A2C

CORE-AXLE

Return Part Number

1шт.

231012A1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle differential, for axle assembly P/N 243302A1, 30 kph, 4:10 ratio, Includes: carrier assembly and Ref. 1 thru 50

1шт.

247613A1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle differential, for axle assembly P/N 243301A1, 40 kph, 3:73 ratio, Includes: carrier assembly and Ref. 1 thru 50

1шт.

231013A1

HOUSING

CARRIER ASSEMBLY - differential, Includes: Ref. 1 thru 4

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing, differential

2шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

WASHER flat, hardened, 17.5 x 30 x 4 mm

4шт.

4

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

BOLT - hex, 16 - 2.0 x 90 mm, class 10.9

4шт.

1277225C2

DIFFERENTIAL

DIFFERENTIAL ASSEMBLY - front axle, Includes: kit and Ref. 7 thru 22

1шт.

1277402C1

KIT

KIT differential, gear, Includes: Ref. 7 thru 15

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - side

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR - pinion

4шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - differential

2шт.

10

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

2шт.

1968294C1

KIT

KIT disc and plate, differential, Includes: Ref. 12 thru 15

1шт.

12

NSS

NOT SOLD SEPARAT

DISC - dished

2шт.

13

NSS

NOT SOLD SEPARAT

DISC - flat

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - flat

4шт.

15

NSS

NOT SOLD SEPARAT

PLATE - dished

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - gear half, differential

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - half, differential

1шт.

21

1997853C1

BOLT

BOLT - special, differential case

8шт.

22

NSS

NOT SOLD SEPARAT

ADAPTER - bolt

8шт.

1968293C1

BEVEL GEAR

SET gear ring and pinion, differential, for axle assembly P/N 243302A1, 4:10 ratio, Includes: Ref. 23 and 24

1шт.

128864A1

GEAR-SET

SET gear, ring and pinion, differential, for axle assembly P/N 243302A1, 3:73 ratio, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

24

NSS

NOT SOLD SEPARAT

GEAR - ring, front differential

1шт.

25

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

BOLT - hex head

12шт.

26

H224501

WASHER

WASHER flat, special, 7/8 inch

1шт.

27

232-46114

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

28

251189A1

SPACER

SPACER pinion gear

1шт.

1277229C1

PACKAGE

KIT - shim, pinion adjusting, Includes: Ref. 31

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.003 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.005 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.010 inch

5шт.

32

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

CUP tapered roller

1шт.

33

1968296C1

TAPERED BEARING

CONE tapered roller

1шт.

34

1968289C1

BEARING ASSY

CUP tapered roller

1шт.

35

1968288C1

BEARING ASSY

CONE tapered roller

1шт.

37

1961745C1

KIT

KIT shim, pinion adjustment, includes 0.003 inch, 0.005 inch, 0.010 inch and 0.030 inch shims listed below

1шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.003 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.005 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.010 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.030 inch

5шт.

38

912712R1

WASHER

WASHER pinion oil seal

1шт.

42

H758326

OIL SEAL

SEAL oil, pinion shaft

1шт.

43

345427C1

SLINGER

RING - dust shield

1шт.

44

1961747C1

YOKE

UNIVERSAL JOINT YOKE YOKE pinion, shaft

1шт.

45

1968291C1

ROLLER BEARING

CONE - tapered roller, differential mounting

2шт.

46

1968292C1

BEARING

CUP - tapered roller, 4-1/8 inch OD, differential mounting

2шт.

47

1277233C1

RING NUT,14T

RING differential, bearing, adjust

2шт.

48

1277234C1

CLIP

CLIP bearing, adjusting, ring

2шт.

49

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER flat, hardened, 11/32 x 11/16 x 3/32 inch

2шт.

50

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.
