Запчасти Case IH 8920 (5-030) - FRONT AXLE SHAFT, MFD TRACTOR (05) - STEERING

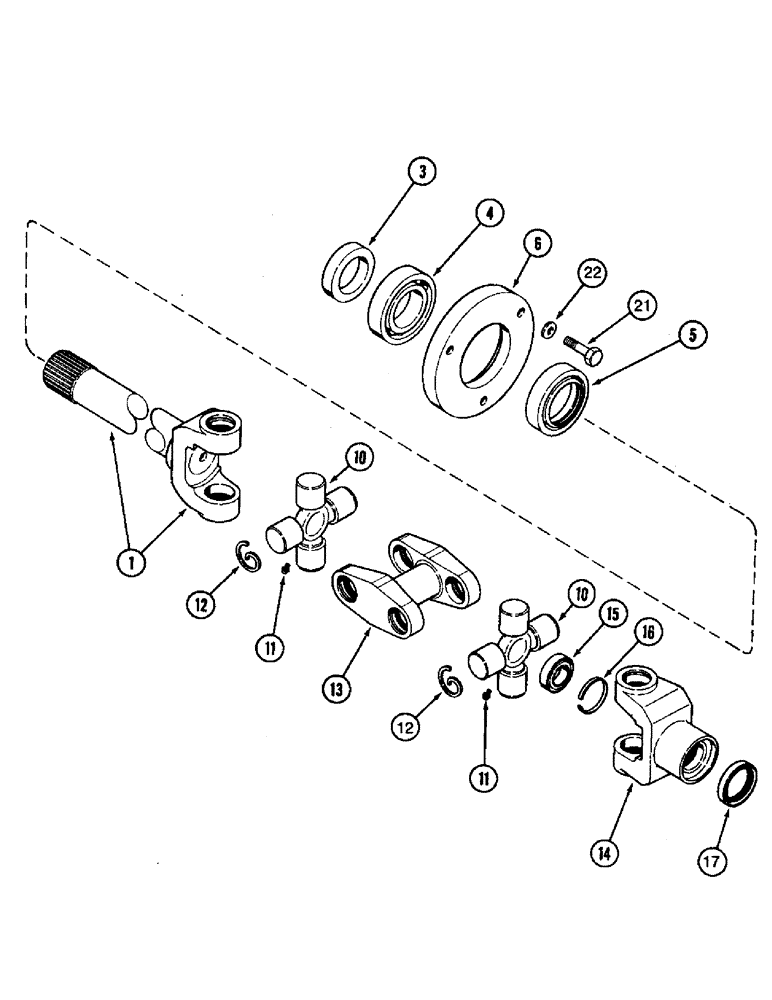

Схема запчастей Case IH 8920 - (5-030) - FRONT AXLE SHAFT, MFD TRACTOR (05) - STEERING
12
15
12
6
10
5
22
21
10
16
3
11
14
13
11
4
1
17

Артикул

Название

Примечание

Количество

243302A1

AXLE, FRONT

AXLE ASSEMBLY - front, 30 kph, 4:10 ratio, see Figures 5-028 thru 5-038, If used, Includes: Ref. 1 thru 22

1шт.

243302A2R

REMAN-FRT AXLE wo DL

REMAN-FRONT Axle Remanufactured - Axle - 8910/20 11/96 Production Starting SN JJA0072001 30 KPH, 3 PIN MFD

1шт.

243302A2C

CORE-FRONT AXLE

Return Part Number

1шт.

243301A1

AXLE, FRONT

AXLE ASSEMBLY front, 40 kph, 3:73 ratio, see Figures 5-028 thru 5-038, If used, Includes: Ref. 1 thru 22

1шт.

243301A2R

REMAN-AXLE

REMAN - Axle - 7210/20 Production 2/92 & 2/96. 7210/20 Prod. 2/97 & 8910/20 11/96 Starting S/N JJA0072001 40 KPH

1шт.

243301A2C

CORE-AXLE

Return Part Number

1шт.

1

250732A1

YOKE

UNIVERSAL JOINT YOKE SHAFT ASSEMBLY - axle, left, Includes: Ref. 1 thru 6

1шт.

1

250733A1

YOKE

UNIVERSAL JOINT YOKE SHAFT ASSEMBLY - axle, right, shown, Includes: Ref. 1 thru 6

1шт.

1277253C1

PACKAGE

KIT - bearing and seal, axle, Includes: Ref. 3 thru 5

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

5

A76014

OIL SEAL

SEAL oil

1шт.

6

247297A1

RETAINER

RETAINER axle

1шт.

10

247298A1

BEARING ASSY

KIT cross, bearing, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

FITTING - grease

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

13

231020A1

YOKE

UNIVERSAL JOINT YOKE YOKE center, front axle

2шт.

14

231021A1

YOKE

UNIVERSAL JOINT YOKE YOKE ASSEMBLY - outer, front axle, Includes: 15 thru 17

2шт.

15

1961753C1

SEAL

SEAL yoke, inner

1шт.

16

1277405C1

RING

RING retaining

1шт.

17

1287608C1

SEAL

SEAL yoke, outer

1шт.

21

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

BOLT - hex, 10 - 1.5 x 40 mm, class 10.9

6шт.

22

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER flat, hardened, 13/32 x 13/16 x 3/32 inch

6шт.

Выбрано товаров: 23
