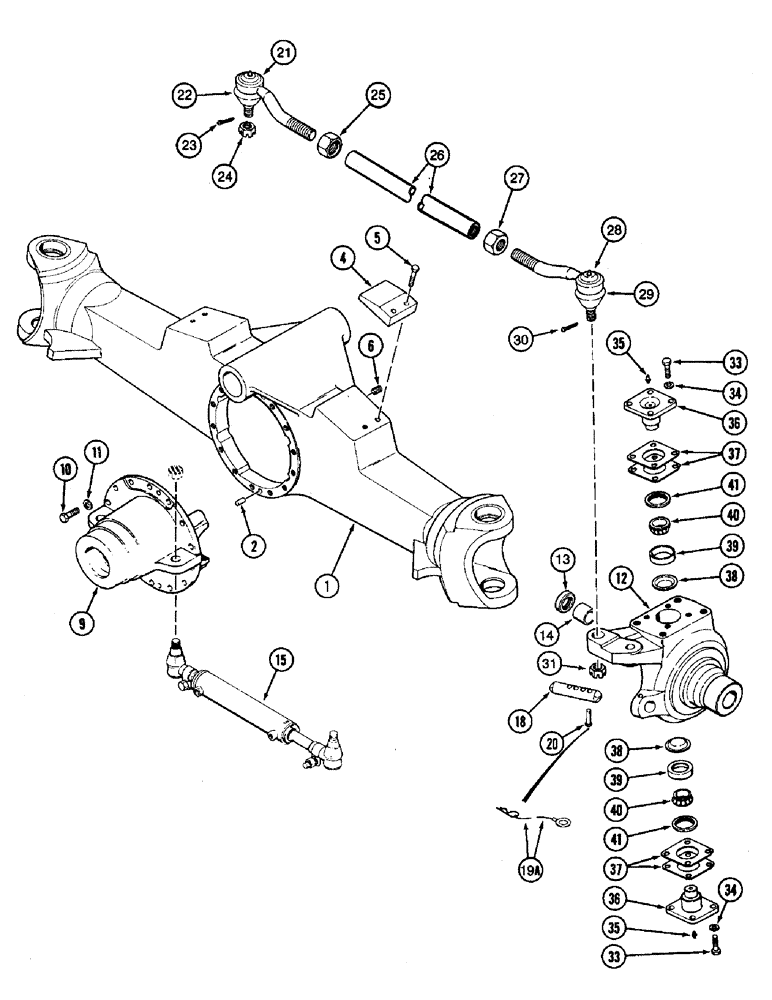

Запчасти Case IH 8920 (5-028) - FRONT AXLE HOUSING, STEERING KNUCKLE AND TIE ROD, MFD TRACTOR (05) - STEERING

243302A1

AXLE, FRONT

AXLE ASSEMBLY - front, 30 kph, 4:10 ratio, see Figures 5-028 thru 5-038, If used, Includes: Ref. 1 thru 41

1шт.

243302A2R

REMAN-FRT AXLE wo DL

REMAN-FRONT AXLE REMAN - Axle - 8910/20 11/96 Production Starting SN JJA0072001 30 KPH, 3 PIN MFD

1шт.

243302A2C

CORE-FRONT AXLE

Return Part Number

1шт.

243301A1

AXLE, FRONT

AXLE ASSEMBLY - front, 40 kph, 3:73 ratio, see Figures 5-028 thru 5-038, If used, Includes: Ref. 1 thru 41

1шт.

243301A2R

REMAN-AXLE

REMAN - Axle - 7210/20 Production 2/92 & 2/96. 7210/20 Prod. 2/97 & 8910/20 11/96 Starting S/N JJA0072001 40 KPH

1шт.

243301A2C

CORE-AXLE

Return Part Number

1шт.

1

231004A1

CENTER AXLE

HOUSING ASSEMBLY - front axle

1шт.

2

37-1816

DOWEL,1/2" x 1"

PIN hardened, 1/2 x 1 inch

2шт.

4

1969527C1

PLATE

PLATE stop, front axle

2шт.

5

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 50 mm, class 10.9

4шт.

6

221-887

PLUG

PLUG square socket, 3/4 inch PT

2шт.

9

REF

INSTRUCTION

CARRIER ASSEMBLY - front axle differential, see Figure 5-032

1шт.

10

628-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 14 - 2.0 x 40 mm, class 10.9

16шт.

11

247661A1

WASHER

WASHER flat

16шт.

12

248232A1

STEERING KNUCKLE

KNUCKLE ASSEMBLY - left-hand, Includes: Ref. 13 and 14

1шт.

12

248233A1

STEERING KNUCKLE,RH

KNUCKLE ASSEMBLY - right-hand, shown, Includes: Ref. 13 and 14

1шт.

13

128647A1

OIL SEAL

SEAL oil, 1-9/16 x 2-1/8 x 1/2 inch

1шт.

14

235628A1

BUSHING

BUSHING spindle

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering axle, see Figure 5-038

1шт.

18

247305A1

STOP

ROD - steering, standard

2шт.

18

247306A1

STOP

ROD - steering, optional

2шт.

19

139217A1

SPLIT PIN/SAFETY PIN

CLIP - retainer

2шт.

20

427-12267

CLEVIS PIN,19.05mm OD x 72.95mm L

PIN clevis, 3/4 x 2-43/64 inch

2шт.

231015A1

TIE-ROD

ROD ASSEMBLY - tie, front axle, complete, Includes: joint assemblies and Ref. 21 thru 31

1шт.

128609A1

BALL JOINT

JOINT ASSEMBLY - left-hand thread, Includes: Ref. 21 thru 24

1шт.

21

NSS

NOT SOLD SEPARAT

JOINT - ball, left-hand thread

1шт.

22

1342940C1

BOOT

BOOT dust, ball joint

1шт.

23

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

24

429-1314

NUT,7/8"-14, G8

NUT hex, 7/8 inch NF, grade 8

1шт.

25

128591A1

NUT

NUT hex, special, left-hand thread

1шт.

26

247290A1

TIE-ROD

ROD, tie front axle

1шт.

27

128589A1

NUT

NUT hex, special, right-hand thread

1шт.

128604A1

BALL JOINT

JOINT ASSEMBLY - right-hand thread, Includes: Ref. 28 thru 31

1шт.

28

NSS

NOT SOLD SEPARAT

JOINT - ball, right-hand thread

1шт.

29

1342940C1

BOOT

BOOT dust, ball joint

1шт.

30

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

31

429-1314

NUT,7/8"-14, G8

NUT hex, 7/8 inch NF, grade 8

1шт.

33

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 40, 10.9, Full Thd

16шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

WASHER, M13.5 x 24.5 x 3, HT

16шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

4шт.

36

231014A1

CAP

CAP king, pin

4шт.

37

473001C1

SHIM

SHIM king pin, .005 inch

1шт.

37

78810C1

SHIM

SHIM king pin, .01 inch

1шт.

38

1277271C1

RETAINER

RETAINER grease

4шт.

39

671033R1

BEARING, CUP

CUP bearing

4шт.

40

671032R1

TAPERED BEARING,33.34mm ID x 22.33mm W

CONE BEARING

4шт.

41

1277270C1

OIL SEAL

SEAL, king pin

4шт.
