Запчасти Case IH 8910 (5-018) - HYDRAULIC OIL COOLER (05) - STEERING

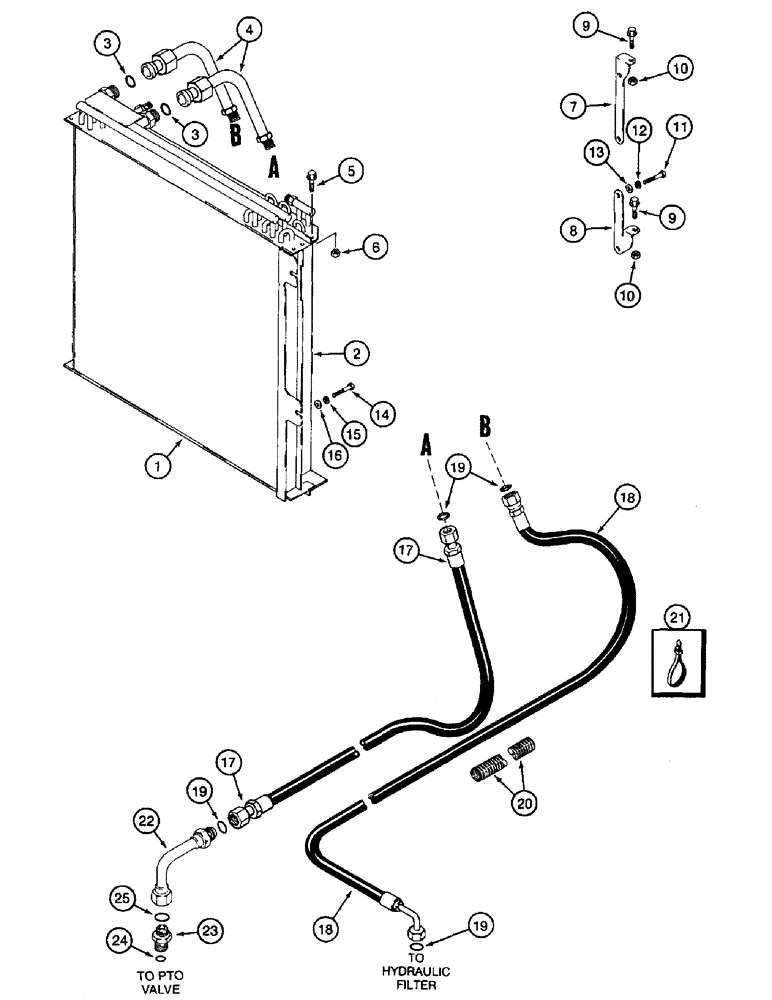

Схема запчастей Case IH 8910 - (5-018) - HYDRAULIC OIL COOLER (05) - STEERING
16
2
15
9
13
1
5
3
17
11
22
19
3
8
12
18
19
4
24
10
7
21
18
14
23
10
20
25
6
17
19
9

Артикул

Название

Примечание

Количество

1

181582A2

COOLER, OIL

COOLER hydraulic, oil

1шт.

2

181583A1

CONDENSER

air conditioning

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

224497A2

HYD TUBE,19.05 mm OD

TUBE - oil cooler to tranmission hoses

2шт.

5

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

7

182351A2

SUPPORT

BRACKET - upper, pivot

1шт.

8

224081A1

SUPPORT

BRACKET - lower

1шт.

9

844-8018

BOLT,Hvy Hex, M8 x 18mm, Cl 8.8

hex, 8 - 1.25 x 16 mm, Replaces: P/N 844-8020

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

2шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16") 5/16", SAE

2шт.

17

225398A2

HOSE,19.05mm ID x 3340mm L, SAE 100R1

cooler supply, 3340 mm (131-1/2 inch) long

1шт.

18

225399A2

HOSE,19.05mm ID x 3632mm L, SAE 100R1

3632 mm (143 inch) long, cooler return

1шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

20

1334592C4

PIPE

SLEEVE - corrugated, bulk, 41 (1-5/8) x 49 (1-15/16) x 585 mm (23-1/32 inch) long

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch

1шт.

22

1348391C1

HYD TUBE,0.75" OD, 106.1, 85 mm Length

TUBE cooler, supply

1шт.

23

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 24 and 25 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 25
