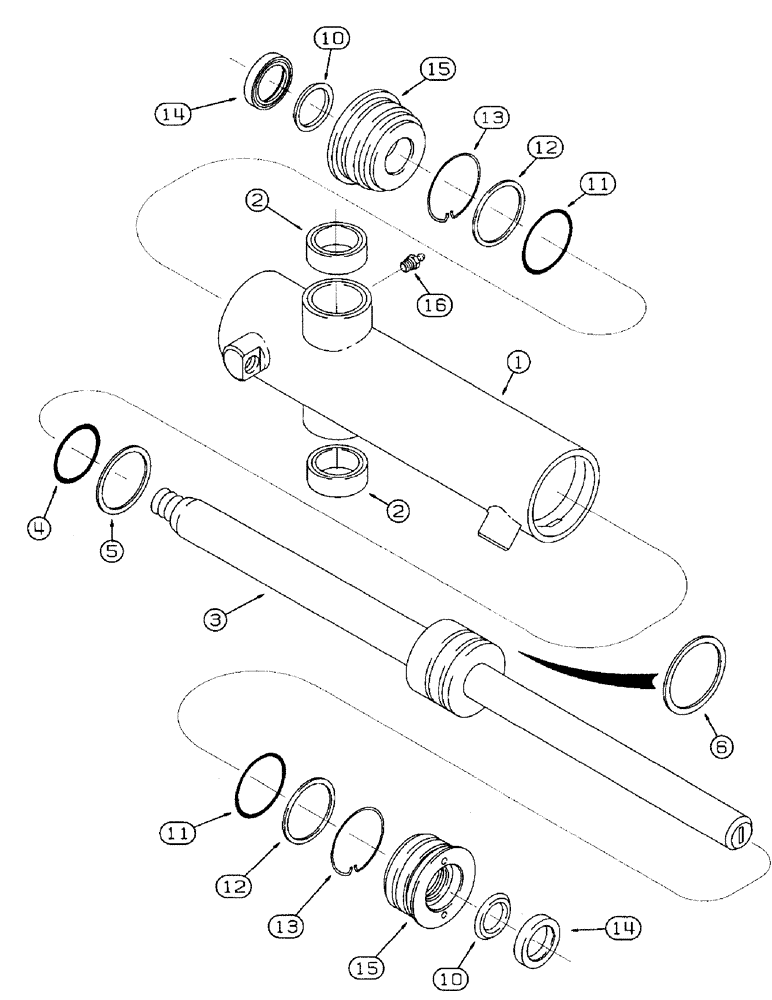

Запчасти Case IH 8910 (5-016) - STEERING CYLINDER, TWO WHEEL DRIVE TRACTOR (05) - STEERING

93194C8

STEERING CYLINDER

CYLINDER ASSEMBLY - 67 (2-5/8) ID x 246 mm (9-3/4 inch) stroke, Includes: Ref. 1 thru 15

1шт.

93194C9R

REMAN-HYD CYLINDER

8910, 8920, Both CASE IH MAGNUM TRACTOR, CYLINDER ASSEMBLY - 67 (2-5/8) ID x 246 mm (9-3/4 inch) stroke (1/97-12/98), Reman For New PN 93194C8

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1

1954124C4

HYD CYL SLEEVE

TUBE - cylinder, Includes: Ref. 2

1шт.

2

1255304C1

BUSHING

pivot

2шт.

3

1255306C5

PISTON ROD

ROD piston

1шт.

80448C2

SEAL KIT

KIT seal

1шт.

4

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

5

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

SEAL piston

1шт.

6

NSS

NOT SOLD SEPARAT

BEARING - piston

1шт.

10

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

piston, rod

2шт.

11

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

12

1255311C1

WASHER

backup

2шт.

13

1255312C1

RETAINING WIRE

WIRE - retaining, 205 mm (8-1/16 inch) long, cut from P/N 140600C1 bulk wire

2шт.

14

D95141

WIPER SEAL

WIPER - piston rod

2шт.

15

1255310C1

HEAD (CYLINDER)

GLAND - cylinder, end

2шт.

16

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.
