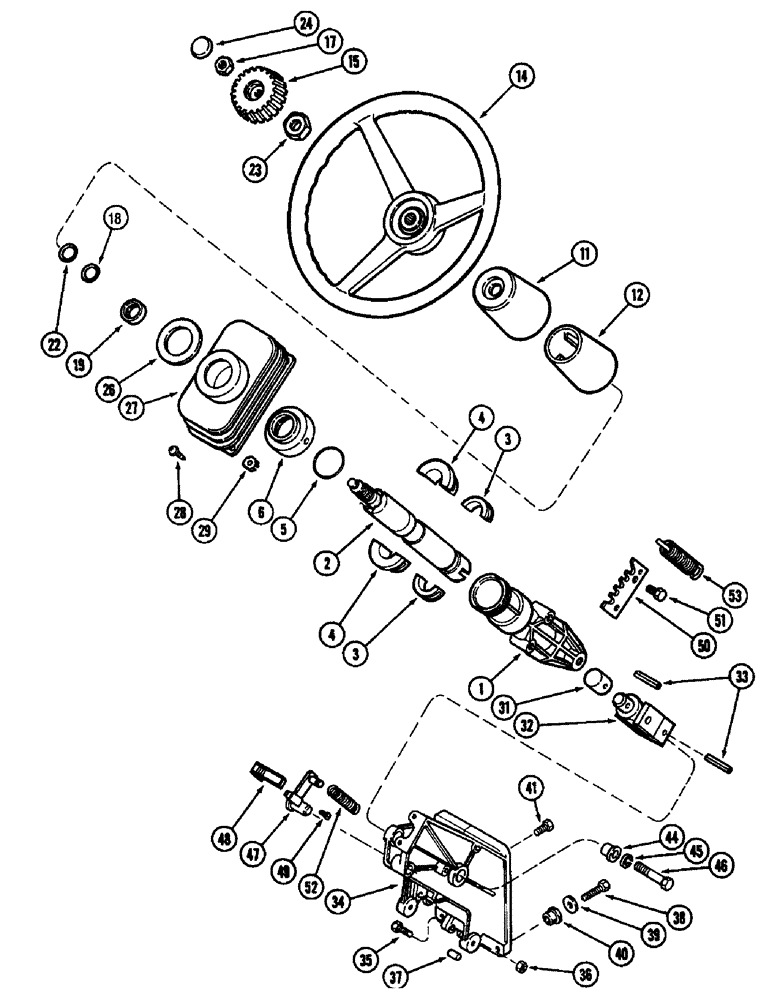

Запчасти Case IH 8910 (5-002) - STEERING WHEEL AND COLUMN (05) - STEERING

1

1989917C1

HOUSING

support, steering

1шт.

2

139202A2

SHAFT

telescoping

1шт.

3

148424C2

BUSHING,19.1mm ID x 35.05mm OD x 19.05mm L

lower, steering tube

2шт.

4

103985C1

BUSHING,35.05mm ID x 50.9mm OD x 38.1mm L

upper, steering tube

2шт.

5

1348393C1

O-RING,1.984" ID x 0.139" Width

steering column cap

1шт.

6

148921C1

CAP

column

1шт.

11

1954245C1

SHIELD

outer

1шт.

12

1954244C1

PROTECTOR

SHIELD - inner

1шт.

14

A65544

STEERING WHEEL

1шт.

15

138969A1

CAP

KNOB - lock, wheel

1шт.

17

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

1шт.

18

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

1шт.

19

228340A1

WASHER

rubber, snubber, 7/8 inch ID

1шт.

22

100-1587

SNAP RING,#87, Ext, Crescent

Ring, Snap, #87, Ext, Crescent

1шт.

23

F19646

LOCK NUT,13/16"-20, Thin

NUT lock, steering wheel retaining

1шт.

24

1342054C1

PLASTIC PLUG

INSERT - plastic, black

1шт.

26

1954246C1

WASHER

shield

1шт.

27

1974720C2

BOOT

column

1шт.

28

1975919C1

SELF-TAP SCREW

special

4шт.

29

104036C1

NUT

expansion

4шт.

31

104008C1

RUBBER INSULATOR

INSULATOR vibration

1шт.

32

148431C1

JOINT

universal

1шт.

33

323101A1

COILED PIN

PIN roll, 9.3 (3/8) OD x 44.5 mm (1-3/4 inch) long, Replaces: P/N 438-32428

2шт.

34

148426C2

SUPPORT ASSY.

SUPPORT column, Includes: Ref. 35 thru 37

1шт.

35

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

37

837-10016

DOWEL,M10 x 16

PIN dowel, hardened, 10 x 16 mm

2шт.

38

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

39

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

flat, hardened, 13/32 x 1-1/16 x 3/32 inch

3шт.

40

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

vibration damper

3шт.

41

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

(Without manual shuttle shift) Hex, M10 x 20, 8.8, Full Thd

2шт.

41

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

Hex, Full Threads, 10 - 1.5 x 50 mm, With Manual Shuttle Shift

2шт.

44

148920C1

BUSHING

pivot

2шт.

45

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

46

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

47

97109C1

LEVER

release, tilt

1шт.

48

97111C4

HANDLE

lever

1шт.

49

170-101

SCREW,Sl Pan Hd, #8 - 32 x 5/16"

No. 8 x 5/16 inch

1шт.

50

96972C1

PLATE ASSY.

PLATE ASSEMBLY, detent, tilt

1шт.

51

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

52

538321R1

SPRING

detent

1шт.

53

148480C1

SPRING

support

1шт.
