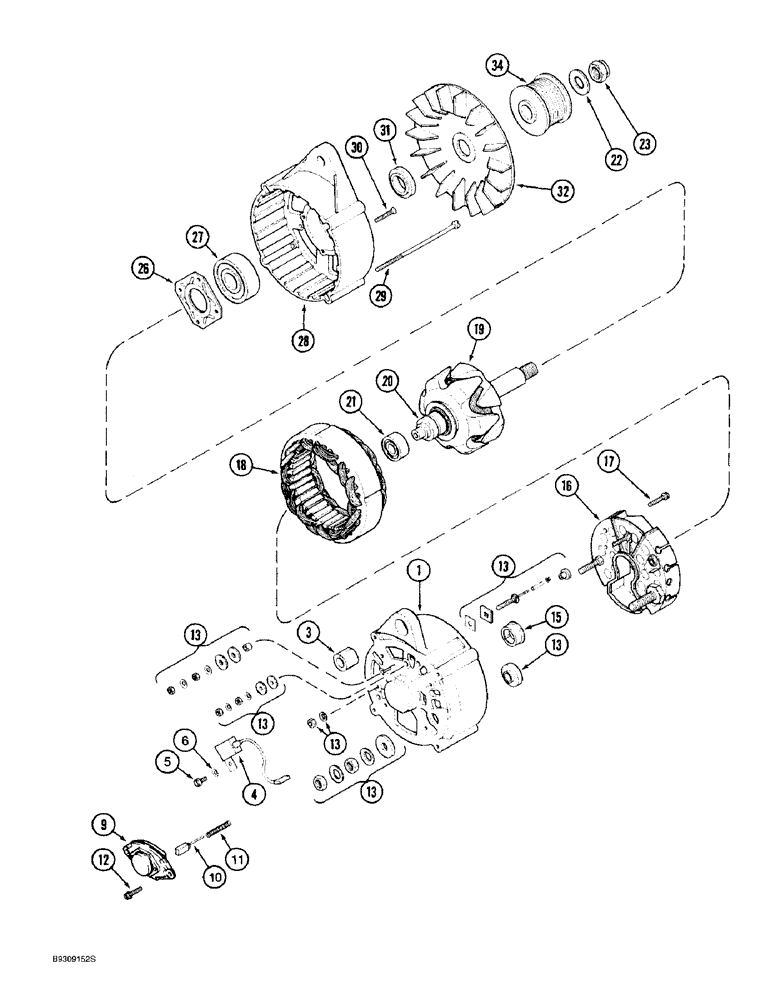

Запчасти Case IH 8910 (4-036) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
91448C2
ALTERNATOR
ALTERNATOR ASSEMBLY - engine, 110 amp, Includes: Ref. 1 thru 32
1шт.
91448C2R
REMAN-ALTERNATOR
Reman for New PN 91448C2
1шт.
91448C2C
CORE-ALTERNATOR
Return Part Number
1шт.
91448C2GV
ALTERNATOR
Value, 110 Amp
1шт.
125849A1R
REMAN-ALTERNATOR
Remanufactured ALTERNATOR, 12 volt 135 ampere
1шт.
125849A1C
CORE-ALTERNATOR
Return Part Number
1шт.
125849A1GV
ALTERNATOR
Value, 12 Volt, 135 Amp
1шт.
1
1964731C1
HOUSING
HOUSING collector ring end
1шт.
3
1964737C1
BUSHING,13.5mm ID x 20mm OD x 20mm L
BUSHING expansion
1шт.
5
684857C1
SCREW
SCREW fillister head, capacitor retaining
1шт.
6
A186196
WASHER
WASHER special
1шт.
9
111899A1
REGULATOR
REGULATOR voltage
1шт.
10
3079394R91
BRUSH SET
SET brush
1шт.
11
1964734C1
SPRING
SPRING compression
2шт.
12
A186194
SCREW,M4 x 18mm
BOLT hex, flange, special, regulator
2шт.
13
1964738C1
REPAIR KIT
KIT, REPAIR, Terminal hardware
1шт.
15
1546477C1
SLEEVE
RING - sleeve, housing ball bearing
1шт.
17
A187504
SCREW
BOLT hex flange, special, rectifier bridge
2шт.
18
1964735C1
STATOR
STATOR alternator
1шт.
19
1964728C1
ROTOR
ROTOR alternator
1шт.
20
3079410R1
RING
RING collector
1шт.
21
1964730C1
BALL BEARING,12mm ID x 32mm OD x 14mm W
BEARING ball
1шт.
22
495-51066
WASHER,9/16" x 1 1/4" x .1"
WASHER flat, 21/32 x 1-1/4 x 3/32 inch
1шт.
23
231-46010
LOCK NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
1шт.
26
1964727C1
PLATE
PLATE bearing retaining
1шт.
27
1964726C1
BALL BEARING,22.2mm ID x 56mm OD x 21mm W
BEARING ball, drive end
1шт.
28
1964725C1
HOUSING
HOUSING drive end
1шт.
29
1964748C1
SCREW
BOLT - fillister head, special, alternator
4шт.
30
1964750C1
SCREW
SCREW machine, flat head, special, retaining
4шт.
31
1964729C1
SPACER
SPACER ring
1шт.
32
1964736C1
FAN
FAN alternator
1шт.
34
A189616
PULLEY
PULLEY alternator
1шт.
Выбрано товаров: 34
