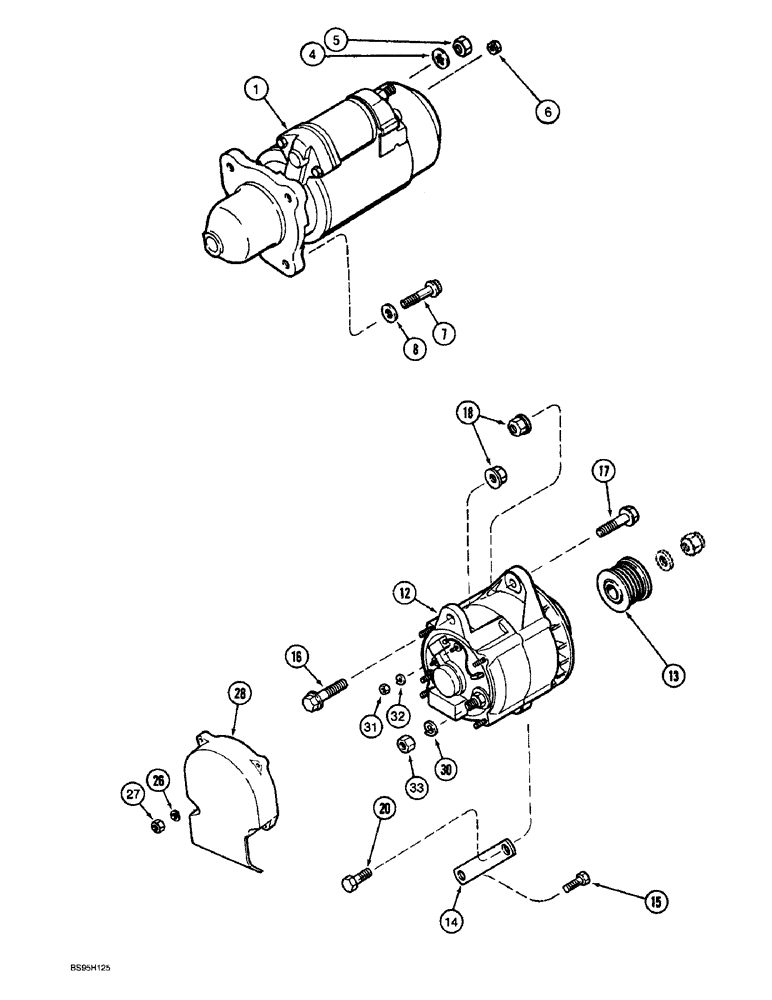

Запчасти Case IH 8910 (4-030) - STARTER MOUNTING PRIOR TO P.I.N. JJA0076314 AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, see Figure 4-032, starter mounting, Serial Range: -JJA0076314

1шт.

1

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

1

AC187728

CORE-STARTER

Return Part Number

1шт.

1

A187728GV

STARTER MOTOR

Value

1шт.

4

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER internal tooth lock, 1/2 inch, battery terminal, starter mounting, Serial Range: -JJA0076314

1шт.

5

425-148

JAM NUT,Jam, 1/2"-13, G5

NUT hex, jam, 1/2 inch NC, Starter mounting, Serial Range: -JJA0076314

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

NUT hex, with external tooth lock washer, No. 10 NF, switch terminal, starter mounting, Serial Range: -JJA0076314

1шт.

7

868-12040

12 PT SCREW,M12 x 40mm, Cl 12.9

BOLT - 12 point flange, 12 - 1.75 x 40 mm, class 12.9, starter mounting, Serial Range: -JJA0076314

3шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

WASHER, , Starter Mounting M13.5 x 24.5 x 3, HT, Serial Range: -JJA0076314

3шт.

12

91448C2

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 110 amp, see Figure 4-036, alternator mounting

1шт.

12

91448C2R

REMAN-ALTERNATOR

Reman For New P/N 91448C2

1шт.

12

91448C2C

CORE-ALTERNATOR

Return Part Number

1шт.

13

A189616

PULLEY

PULLEY alternator, alternator mounting

1шт.

14

J911485

SUPPORT

BRACE - alternator, mounting

1шт.

15

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex, Full Thd, 8 - 1.25 x 30 mm, Brace to engine, Alternator mounting

1шт.

16

854-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 60 mm, class 10.9, Alternator mounting

1шт.

17

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

BOLT, , Alternator mounting Hex Flg, M12 x 50, 10.9

1шт.

18

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

NUT hex flange, 12 mm - 1.75, class 10, alternator mounting

2шт.

20

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

BOLT, , Alternator mounting Hex, 1/2"-13 x 1 1/4", G8, Full Thd

1шт.

26

892-11005

LOCK WASHER,M5

WASHER, LOCK, , Alternator mounting M5

4шт.

27

824-1405

NUT,M5, Cl 5

NUT, , Alternator mounting M5, Cl 5

4шт.

28

1968023C1

PROTECTOR

SHIELD - alternator, mounting

1шт.

30

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Alternator mounting 7/16"

1шт.

31

825-1404

NUT,M4, Cl 8

NUT, , Alternator mounting M4, Cl 8

1шт.

32

892-11004

LOCK WASHER,M4

WASHER, LOCK, , Alternator mounting M4

1шт.

33

425-147

JAM NUT,Jam, 7/16"-14, G5

NUT hex, jam, 7/16 inch NC, alternator mounting

1шт.
