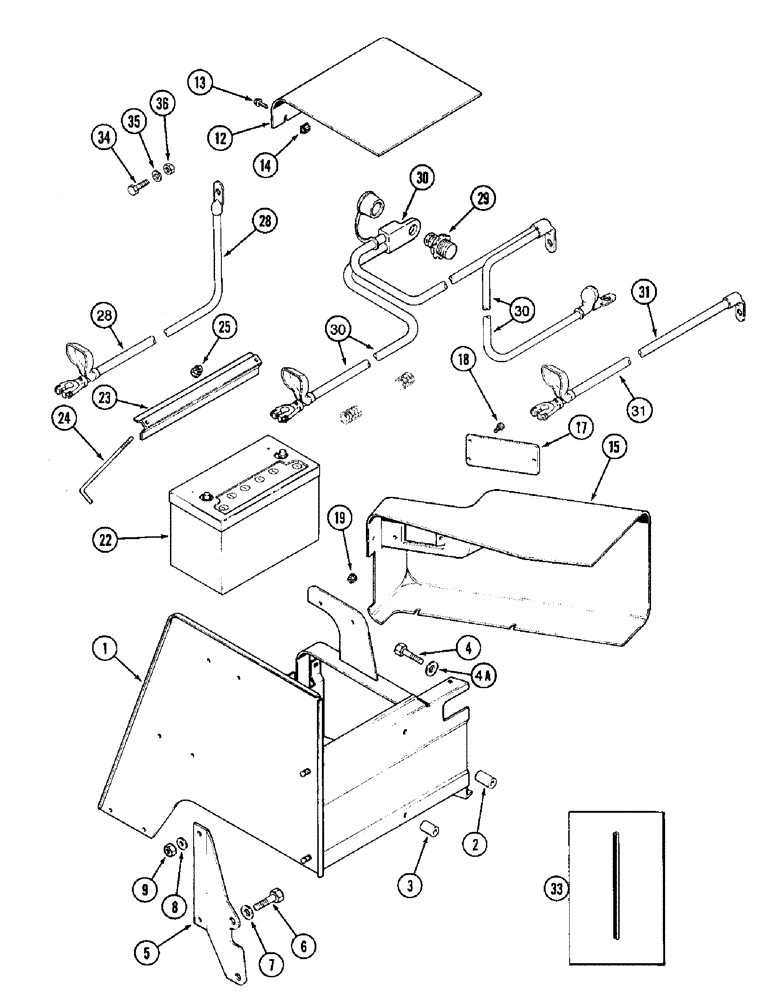

Запчасти Case IH 8910 (4-028) - BATTERY, BATTERY BOX AND CABLES, PRIOR TO P.I.N. JJA0076314 (04) - ELECTRICAL SYSTEMS

1

1955202C1

ELECTRICAL CABINET

BOX - battery

1шт.

2

96867C2

SPACER

upper, box mounting

1шт.

3

96868C2

SPACER

lower, box mounting

1шт.

4

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

Battery box to transmission control valve Hex, M10 x 60, 8.8

2шт.

4a

495-81140

WASHER,13/32" x 1 1/4" x .060"

flat, 13/32 x 1-1/4 x 1/16 inch, Replaces: P/N 895-15010

2шт.

5

96636C1

SUPPORT

box, rear

1шт.

6

813-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

2шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

2шт.

9

829-1412

NUT,M12, Cl 10.9

hex, 12 mm - 1.75, class 10

2шт.

12

96656C1

COVER

battery, top

1шт.

13

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING, Cross Truss Wash Hd, #10 x 5/8"

2шт.

14

104036C1

NUT

special, top cover

2шт.

15

96657C2

COVER

battery box, front

1шт.

17

1334657C1

LARGE PLATE

PLATE cover, if used

1шт.

18

1960750C1

SCREW,Pan HD, 1/4" - 20 x 3/8"

special, 1/4 NC x 3/8 inch

6шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

22

BMF31G

BATTERY, DRY

12V, Electrical supply

2шт.

23

96635C1

ANGLE

BRACKET - hold down, battery

2шт.

24

97052C1

TRUSS ROD,5/16" - 18 x 287mm

BOLT - hold down, battery

4шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, hex, serrated, flange, 5/16 inch NC

4шт.

28

1983286C1

CABLE

negative, battery

2шт.

29

1983630C1

TERMINAL CONNECTOR

TERMINAL jump start stud

1шт.

30

1987379C1

CABLE

positive, battery

1шт.

31

1983285C1

CABLE

positive, battery

1шт.

33

1978410C1

MOLDING

TRIM - edge, battery box

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

35

492-11038

LOCK WASHER,3/8"

1шт.

36

425-106

NUT,3/8"-16, Cl 5

1шт.
