Запчасти Case IH 8910 (4-018) - CAB HEADLINER REAR HARNESS (04) - ELECTRICAL SYSTEMS

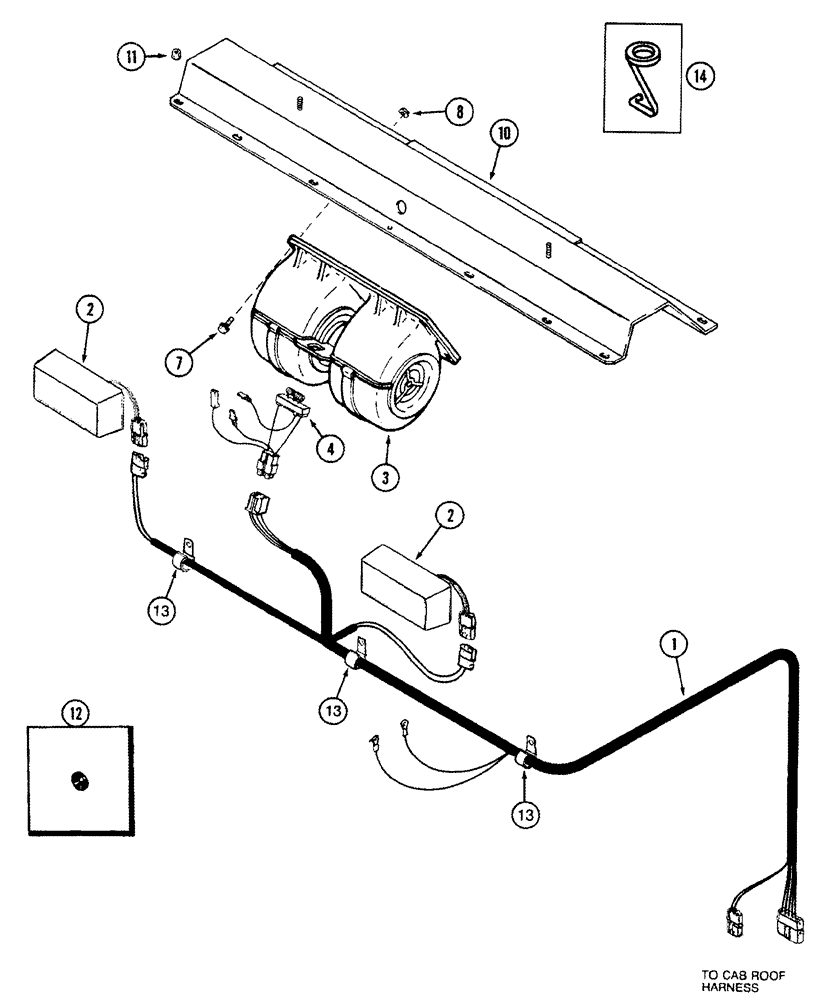

Схема запчастей Case IH 8910 - (4-018) - CAB HEADLINER REAR HARNESS (04) - ELECTRICAL SYSTEMS
11
7
12
2
13
14
4
13
3
13
8
1
10
2

Артикул

Название

Примечание

Количество

1

1987421C1

HARNESS

rear, headliner

1шт.

2

92185C1

LIGHT ASSY.

LAMP ASSEMBLY - warning, flasher, see Figure 4-038

2шт.

3

1977564C2

BLOWER

cab, component parts not serviced separately

1шт.

3

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

3

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

4

1343938C2

RESISTOR

blower

1шт.

7

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex, flange, special, 6 - 1 x 20 mm, self-locking, 6 x 20 mm

4шт.

8

97005C1

FLANGE NUT

hex, flange, self-locking, special, 6 mm - 1

4шт.

10

240877A1

SUPPORT

blower

1шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

10шт.

12

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

rubber, for 5/8 inch diameter hole

1шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

14

254252A1

CLIP,ELECTRICAL

CLIP harness

2шт.

Выбрано товаров: 13
