Запчасти Case IH 8910 (4-012) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

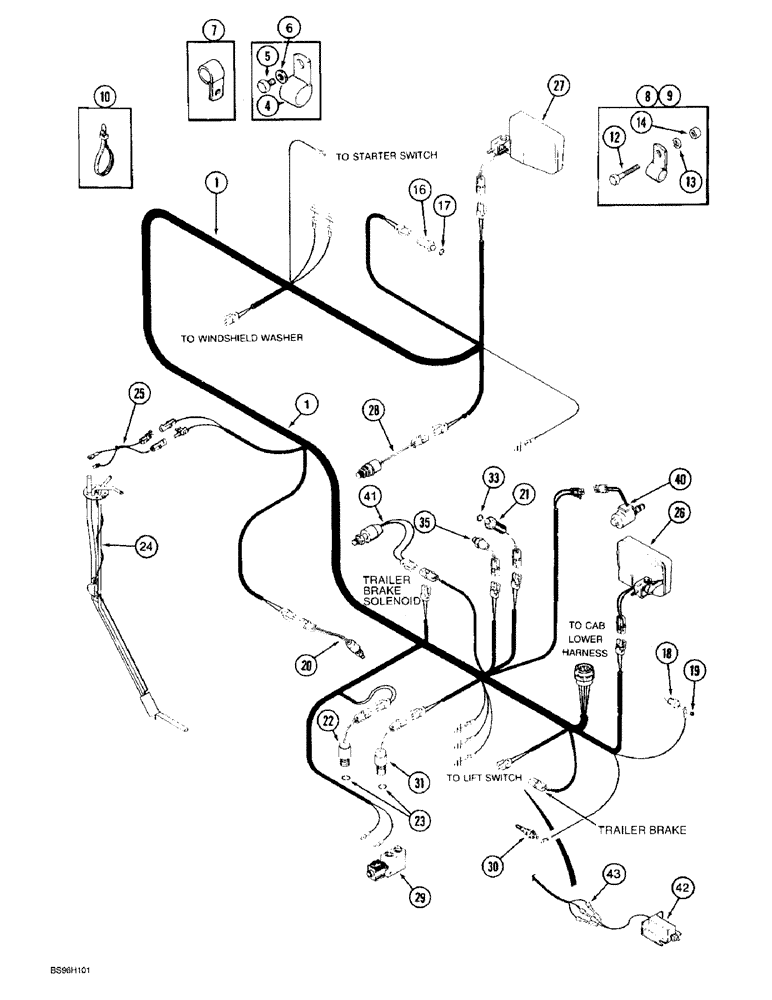

Схема запчастей Case IH 8910 - (4-012) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS
14
10
23
18
17
28
9
42
16
26
20
5
19
41
1
7
8
6
25
13
22
43
4
27
40
1
33
35
21
12
30
29
31
24

Артикул

Название

Примечание

Количество

1

189573A2

HARNESS

transmission speed and range, Serial Range: -AJB0099462

1шт.

1

320689A1

HARNESS

trannsmission speed and range, Start Serial: AJB0099462

1шт.

4

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type 1/2", Insul, 1/2" Bolt

1шт.

5

814-10012

BOLT,Hex, M10 x 1.5 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 12 mm, if used

1шт.

5

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 30 mm, if used

1шт.

6

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

flat, hardened, 11 x 24 x 3 mm, used with P/N 613-10030 bolt, if used

1шт.

7

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

8

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, 1/4 inch ID

1шт.

33

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

9

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type 3/8", Insul, 5/16" Bolt

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

16

1983218C2

SWITCH

neutral start

1шт.

18

A176566

TRANSMITTER

SENDER - transmission oil temperature

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

20

1546462C1

SENSOR

lube oil pressure

1шт.

21

101813A2

IGNITION SWITCH

SWITCH transmission system pressure, located on the inlet of transmission control valve, Serial Range: -AJB0041225

1шт.

21

244451A1

PRESSURE SWITCH

SWITCH transmission system pressure, located on the PTO valve, Start Serial: AJB0041225

1шт.

22

A186005

SENSOR

tractor speed

1шт.

23

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

24

193855A2

FUEL GAUGE

SENSOR - auxiliary fuel tank level

1шт.

25

92261C1

HARNESS

sender, auxiliary fuel level

1шт.

26

REF

INSTRUCTION

LAMP ASSEMBLY - flood, lower front, right, see Figure 4-040

1шт.

27

REF

INSTRUCTION

LAMP ASSEMBLY - flood, lower front, left, see Figure 4-040

1шт.

28

1958159C2

SOLENOID VALVE

SOLENOID ASSEMBLY - drive, creeper

1шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, MFD, see Figure 8-012 for correct assembly and components

1шт.

30

1957801C1

PRESSURE SWITCH

SWITCH, PRESSURE, Filter pressure

1шт.

31

A186004

SENSOR

engine rpm

1шт.

35

REF

INSTRUCTION

SOLENOID VALVE ASSEMBLY - PTO, see Figure 8-008

1шт.

40

REF

INSTRUCTION

SOLENOID VALVE ASSEMBLY - differential lock, see Figure 8-008

1шт.

41

1546463C1

SWITCH, PRESSURE

SWITCH flow compensated (PFC)

1шт.

42

221545A1

KIT

- implement status switch, includes lift switch and associated parts, plus instructions, as an acre counter kit is used alone, if attaching a trailing implement, also order P/N 221546A1 extension harness

1шт.

43

221546A1

HARNESS

extension, 30 foot, used with P/N 221545A1 implement status switch kit on models with trailing implements, if used

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 36
