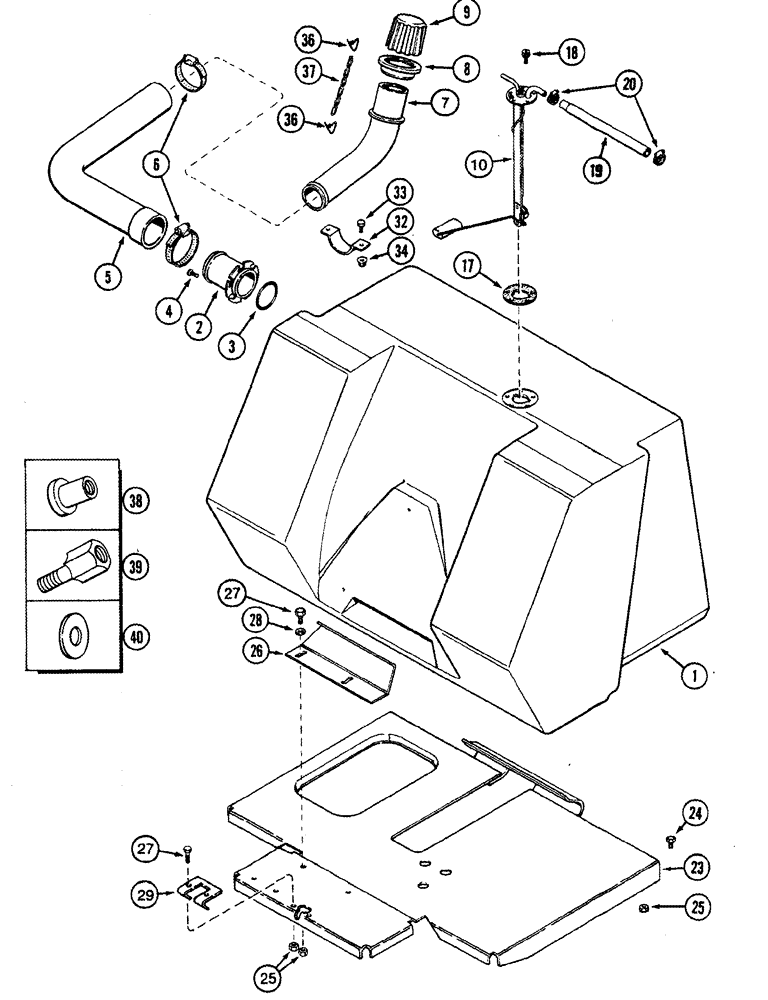

Запчасти Case IH 8910 (3-016) - MAIN FUEL TANK (03) - FUEL SYSTEM

1

96903C5

RESERVOIR

TANK ASSEMBLY - fuel, main, 87 gallon capacity, Includes: Ref. 21 thru 23 in Figure 3-018, also order P/N 104812C3 gasket, Ref. 17 below

1шт.

This tank is available with an optional factory installed 17 gallons providing a total capacity of 104 gallons. Also available with this tank is a large, 30 gallon, auxiliary fuel tank that provides a total capacity of 117 gallons.

1шт.

2

1283682C1

FUEL TUBE,66.05 mm OD

TUBE tank, inlet

1шт.

3

97226C1

O-RING,4.04mm Thk x 64.82mm ID

fuel, inlet

1шт.

4

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

5

1283825C1

FUEL HOSE,63.50 mm ID, 66.70 mm ID x 382.00 mm, SAE 30R7

63.50 mm ID, 66.70 mm ID x 382.00 mm, SAE 30R7 - Inlet, 90 degree

1шт.

6

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

CLAMP adj, 2-5/16 - 3-1/4 inch dia, hose retaining

2шт.

7

1283783C2

FUEL TUBE

TUBE filter

1шт.

8

1283807C1

COLLAR

filler, neck

1шт.

9

1283826C2

CAP

fuel, filler

1шт.

10

259110A1

FUEL GAUGE

SENDER - fuel level, main tank, models without auxiliary tank, also order: Ref 17, Replaces: P/N 1987599C2

1шт.

10

259111A1

FUEL GAUGE

SENDER - fuel level, main tank, models with auxiliary tank, also order Ref 17, Replaces: P/N 103003A2

1шт.

17

104812C3

GASKET,3.05mm Thk

fuel, level, sensor

1шт.

18

193-563

SCREW,SEMS, Hex Hd, #10-24 x 3/4", G5

hex, with external tooth, No. 10 NC x 3/4 inch

5шт.

19

1283890C1

FUEL HOSE,15.90 mm ID x 272.00 mm, SAE J200

- Tank vent 15.90 mm ID x 272.00 mm, SAE J200

1шт.

20

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

23

120589A1

SUPPORT ASSY.

SUPPORT tank

1шт.

24

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

25

825-1410

NUT,M10, Cl 8

1шт.

26

137630C2

BRACKET

hold down, fuel tank

1шт.

27

1287737C1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT - hex, 10 x 25 mm class 10.9, special

4шт.

28

1287738C2

WASHER

flat, 11 x 21 x 3 mm

2шт.

29

120587A1

SUPPORT

BRACKET - upper link

1шт.

32

1283792C1

MOUNTING CLIP

CLAMP - tube retaining

1шт.

33

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

34

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

36

1971391C1

CLIP

retainer, chain

2шт.

37

1971392C1

CHAIN (AG)

CHAIN fuel cap, 10 inch

1шт.

38

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

1шт.

39

120157C1

CONNECTOR, ELEC

CONNECTOR fuel, tank

1шт.

40

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

flat

1шт.
