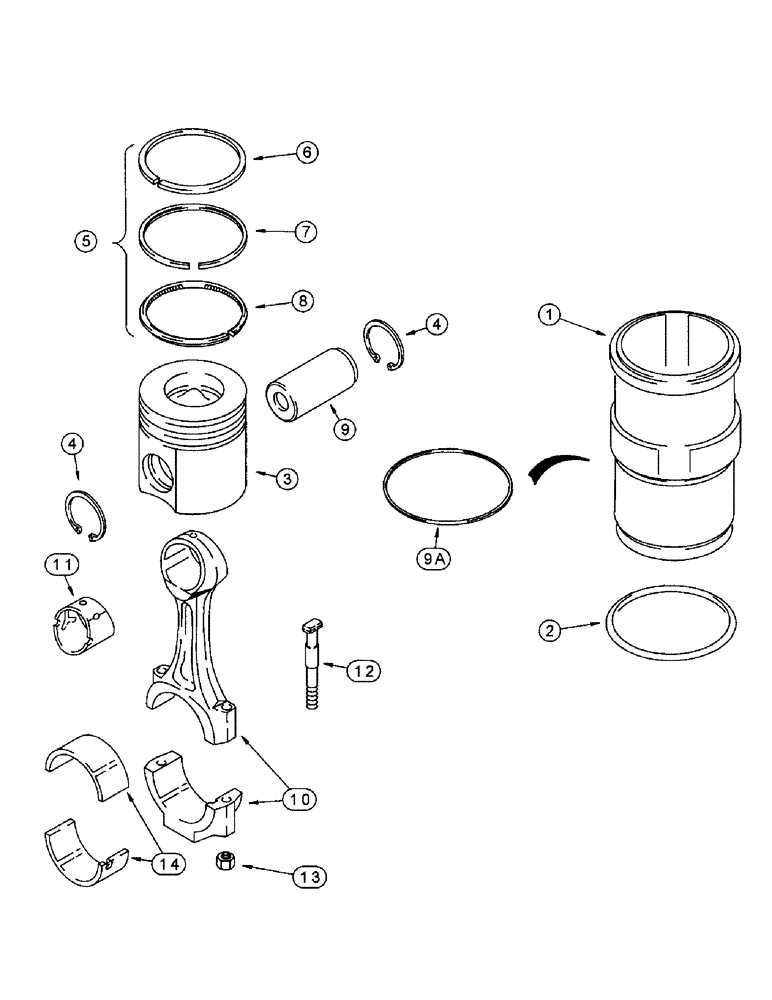

Запчасти Case IH 8910 (2-060) - PISTON AND CONNECTING ROD, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A77854

PACKAGE, REPAIR

KIT - piston and sleeve, engine, Includes: Ref. 1 thru 8, connecting rod, Serial Range: -45636466

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE piston, Serial Range: -45636466

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING sealing, cylinder sleeve, piston

1шт.

A77853

PISTON & RINGS KIT

KIT piston, engine, standard, Includes: Ref. 3 thru 8

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - engine

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, , Piston 1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

KIT - piston, ring, Includes Ref. 6 thru 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression, top, piston

1шт.

7

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING - oil, bottom, piston

1шт.

A77912

PACKAGE, REPAIR

KIT - piston and sleeve, Includes: Ref. 1A thru 8, connecting rod, Start Serial: 45636466

6шт.

1a

J944344

SLEEVE CYLINDER

SLEEVE piston, Start Serial: 45636466

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING sealing, cylinder sleeve, piston

1шт.

A77853

PISTON & RINGS KIT

KIT piston, engine, standard, Includes: Ref. 3 thru 8

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - engine

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, , Piston 1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

KIT piston, ring, Includes: Ref. 6 thru 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression, top, piston

1шт.

7

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING - oil, bottom, piston

1шт.

9

J901597

PIN

piston

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Piston 0.254mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

Cylinder sleeve, Piston 0.381mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

Cylinder sleeve (.020"), Piston 0.508mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030"), Piston 0.762mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040"), Piston 1.000mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured, North America only, component parts shown in this figure do not apply to the remanufactured assembly

6шт.

JC901383

CORE-ROD CONNECTING

RETURN NUMBER, use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

J901383

CONNECTING ROD

ROD ASSEMBLY, connecting, Includes: Ref. 10 thru 13

6шт.

84487529R

REMAN-CONNECTING ROD

8910, 8920 Both(1/97 - 12/98), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - connecting, two-piece

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

connecting rod

1шт.

12

J928870

ROD

- special, rod, bearing cap, connecting rod

2шт.

13

J934864

NUT

hex, rod bolt, connecting, Replaces: P/N J901381

2шт.

14

A77563

BEARING SET

KIT - upper and lower, standard, connecting rod

6шт.

14

A77564

BEARING SET

KIT - upper and lower, 0.25 mm undersize, connecting rod

6шт.

14

A77565

BEARING SET

KIT - upper and lower, 0.50 mm undersize, connecting rod

6шт.

14

A77566

BEARING SET

KIT - upper and lower, 0.75 mm undersize, connecting rod

6шт.

14

A77567

BEARING SET

KIT - upper and lower, 1.00 mm undersize, connecting rod

6шт.
