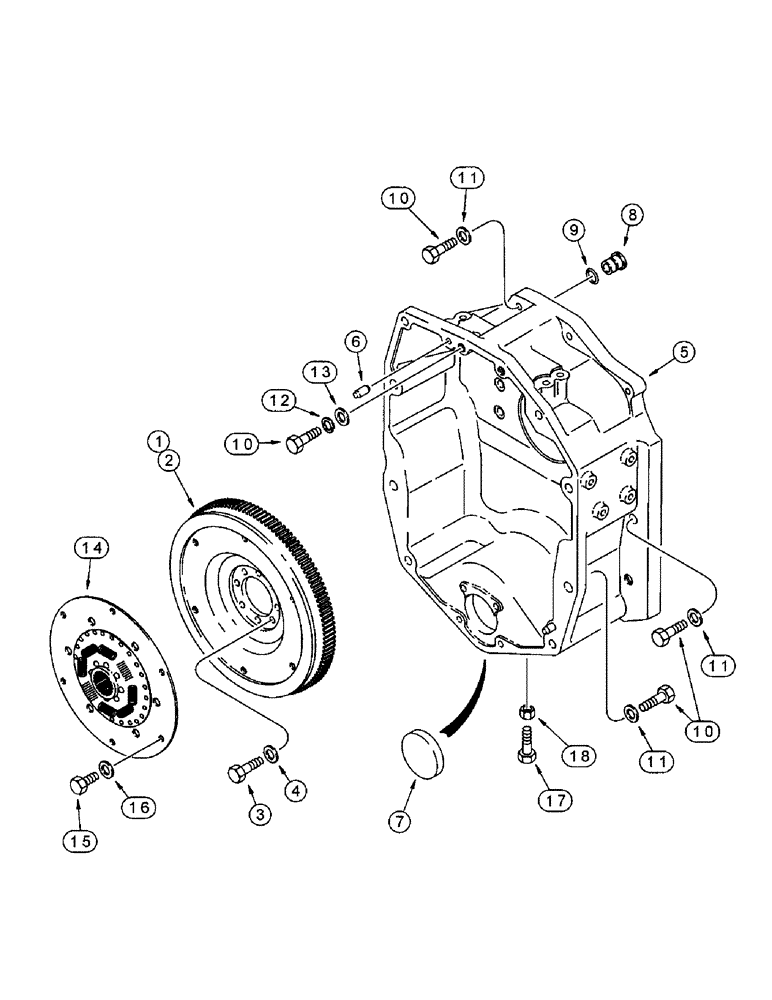

Запчасти Case IH 8910 (2-058) - FLYWHEEL AND HOUSING, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J934838

FLYWHEEL

ASSEMBLY, engine, Includes: Ref. 2, Replaces: P/N J925872

1шт.

2

J905031

GEAR

ring, flywheel

1шт.

3

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT hex, special, 12 - 1.25 x 32 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special, retaining

8шт.

5

119491A1

HOUSING

flywheel, Includes: Ref. 6

1шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

6

375362R1

PIN,12.69mm OD x 34.8mm L

dowel, 1/2 x 1-3/8 inch

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

7

93141C1

PLUG

cup, use without MFD

1шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

8

J910248

PLUG

housing, flywheel

1шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

10

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9, Flywheel housing to bottom of clutch housing

2-14шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

10

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

Flywheel housing to top of clutch housing Hex, M16 x 60, 10.9, Full Thd

1шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

10

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Flywheel housing to top of clutch housing Hex, M16 x 50, 10.9, Full Thd

1шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

10

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9, Flywheel housing to bottom of clutch housing

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

10

628-22065

BOLT,Hex, M22 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, full threads, 22 - 2.5 x 65 mm, class 10.9, flywheel housing to side of clutch housing

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

10

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

- hex, 20 - 2.5 x 70 mm, class 10.9, Flywheel housing to center of side channel, if used

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

10

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9, Speed housing to top of flywheel housing

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

11

A157918

WASHER

flat, 12 mm, flywheel housing into engine

10шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

11

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

flat, 17.5 x 34 x 5 mm, hardened, flywheel housing to top of clutch housing

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened, speed housing to top of flywheel housing

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

11

1289123C1

WASHER

flat, 22 mm, flywheel housing to side of clutch housing

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

11

A177650

WASHER

flat, flywheel housing to center of side channel

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened, speed housing to top of flywheel housing

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Flywheel Housing into Engine M12

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

13

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened, if used

4шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

14

92590C2

CLUTCH DISC,354.25mm OD

drive

1шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

14

92590C2R

REMAN-CLUTCH DISC

Drive

1шт.

14

92590C2C

CORE-CLUTCH DISC

Return Number

1шт.

15

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

6шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

17

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

Plug hole without MFD Hex, M12 x 40, 8.8, Full Thd

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, , Plug hole without MFD M12 x 1.75, Cl 8

2шт.

Ref. 5 through 18 are not part of the engine assembly.

1шт.
