(2-030) - WASTEGATE ACTUATOR, 6T-830 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH 8910 (2-030) - WASTEGATE ACTUATOR, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

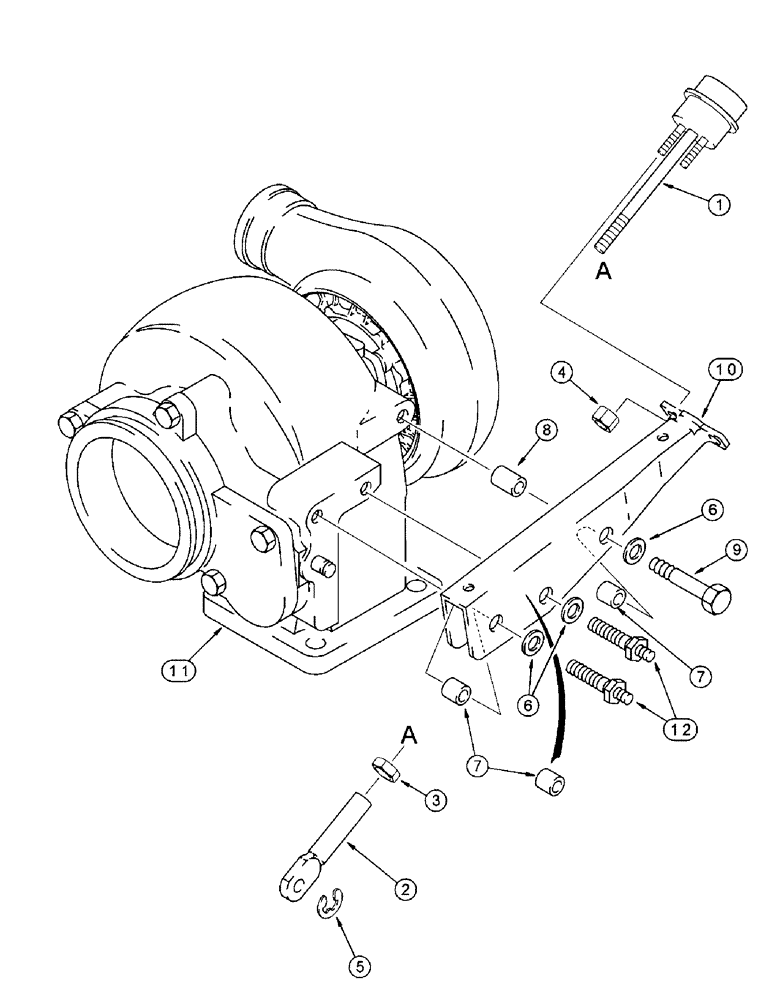

Схема запчастей Case IH 8910 - (2-030) - WASTEGATE ACTUATOR, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
5
2
3
6
9
1
12
11
7
10
4
6
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J535106

ACTUATOR

turbo wastegate

1шт.

1

J593679R

REMAN-SOLENOID

8910, 8920, Reman Actuator For New P/N's J535106 & J593679

1шт.

1

J593679C

CORE-SOLENOID

Return Number

1шт.

2

J528177

LINK

adjusting

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

hex, jam, 5/16 inch NF

1шт.

4

J528204

LOCK NUT

lock

1шт.

5

J528221

CIRCLIP

RING retaining

2шт.

NSS

NOT SOLD SEPARAT

HOUSING turbine and actuator bracket, Includes: Ref. 6 - 12

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

mounting, short

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

mounting, long

1шт.

9

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

10

J533328

SUPPORT

BRACKET wastegate actuator

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

12

J535874

STUD

actuator bracket

2шт.
