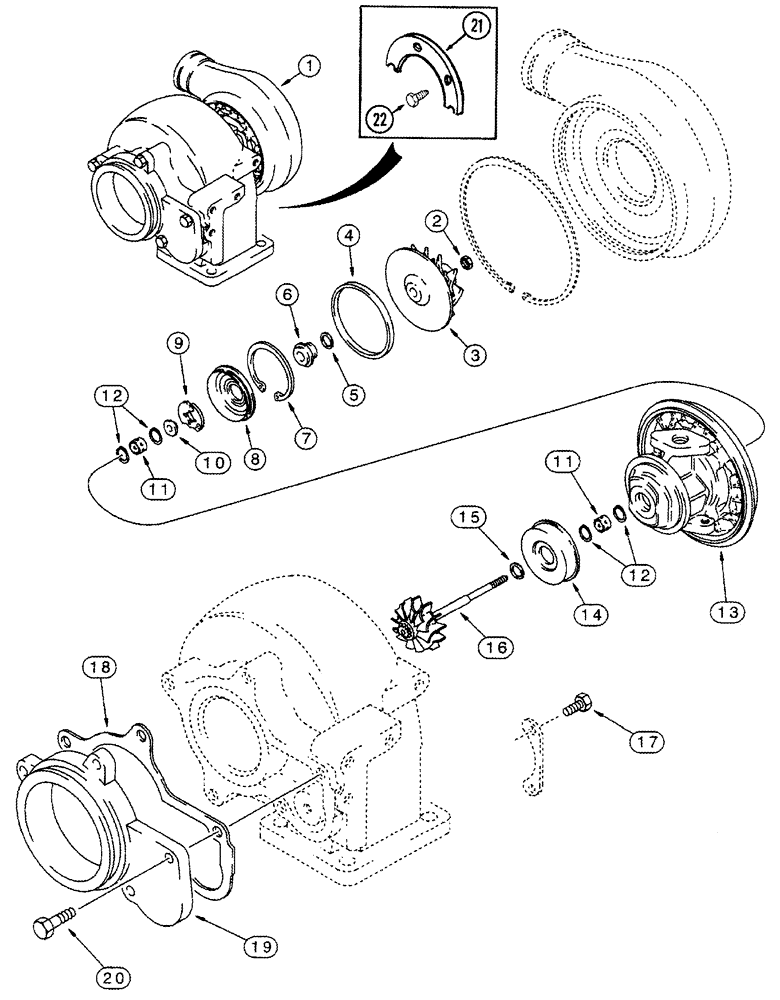

Запчасти Case IH 8910 (2-028) - TURBOCHARGER ASSEMBLY, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J535789

TURBOCHARGER

ASSEMBLY, engine, new, Includes: Ref. 2 thru 17

1шт.

JR535789

REMAN-TURBOCHARGER

TURBOCHARGER ASSEMBLY engine, remanufactured, , component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC535789

CORE-TURBOCHARGER

RETURN NUMBER, use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

2

NSS

NOT SOLD SEPARAT

NUT lock

1шт.

Part of Overhaul Kit P/N J575169

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL O-ring

1шт.

Part of Overhaul Kit P/N J575169

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL split ring

1шт.

Part of Overhaul Kit P/N J575169

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

Part of Overhaul Kit P/N J575169

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

Part of Overhaul Kit P/N J575169

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING turbocharger thrust

1шт.

Part of Overhaul Kit P/N J575169

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING turbocharger

2шт.

Part of Overhaul Kit P/N J575169

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

Part of Overhaul Kit P/N J575169

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING bearing turbine

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD turbine heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL split ring

1шт.

Part of Overhaul Kit P/N J575169

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT, turbocharger

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW set, hex head

6шт.

Part of Overhaul Kit P/N J575169

1шт.

18

J535243

GASKET,0.25mm Thk

adapter

1шт.

19

J528010

ADAPTER

connection, Replaces: P/N J533030 adapter

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

5шт.

21

J534309

PLATE

clamping

2шт.

22

J759917

SET SCREW

SCREW set, hex, head

6шт.

J535324

CARTRIDGE

CENTER HOUSING ASSEMBLY turbocharger, Includes: Ref. 2 thru 16

1шт.

J575169

REPAIR KIT

KIT overhaul, turbocharger, Includes: Ref. 2, 4, 5, 7, 8, 9, 11, 12, 15 and 17

1шт.
