Запчасти Case IH 8910 (2-022) - FRONT GEAR COVER, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

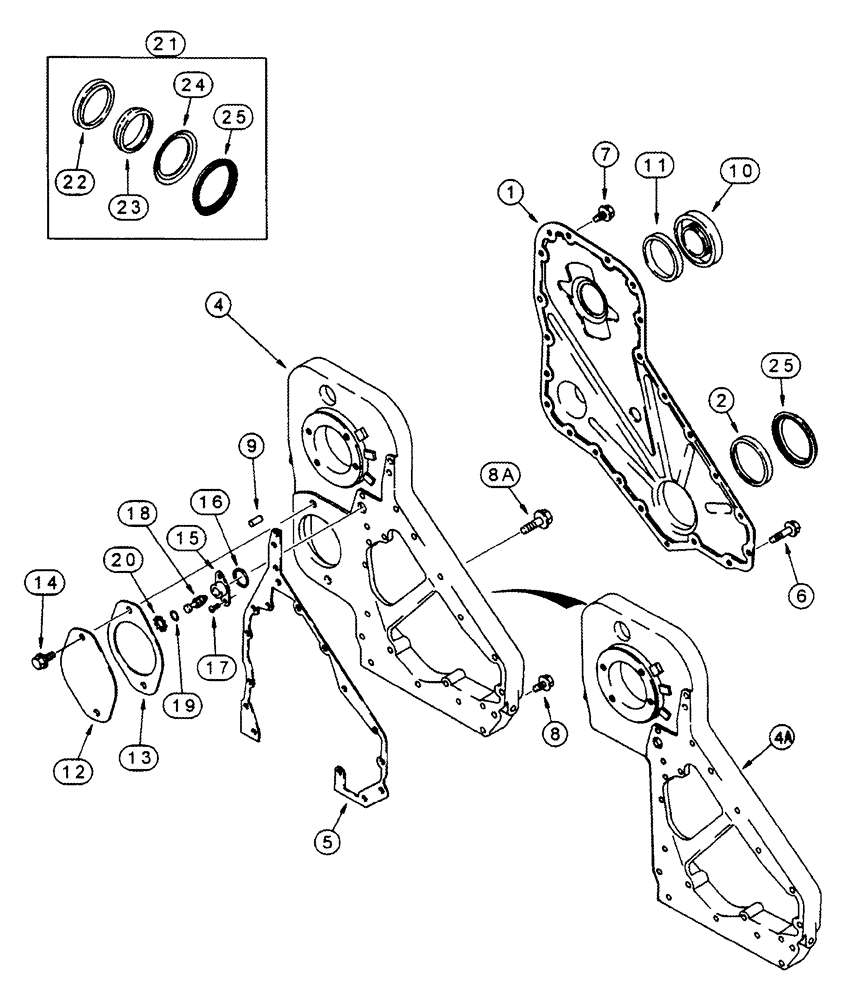

Схема запчастей Case IH 8910 - (2-022) - FRONT GEAR COVER, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
4
13
7
21
1
18
4a
24
16
20
9
12
22
19
25
25
8
6
8a
10
23
15
5
2
11
17
14

Артикул

Название

Примечание

Количество

1

J929446

COVER ASSY

COVER gear, front, high PTO

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order Ref. 21, P/N A77790 kit below

1шт.

3

J823494

SEALANT

Three Bond Silver RTV Adhesive/Sealer, 3 ounce tube, apply between front gear cover and timing gear housing, not shown

1шт.

4

J926719

MOTOR HOUSING

HOUSING gear, high PTO, if used

1шт.

4a

J929419

MOTOR HOUSING

HOUSING gear, without accessory drive hole, if used

1шт.

5

J929253

GASKET

housing, gear

1шт.

6

J926863

FLANGE BOLT

BOLT hex flange, 8 - 1.25 x 50 mm, class 10.9, front gear cover to timing gear housing to engine block

6шт.

7

J924962

FLANGE BOLT

BOLT hex, flange, special, 8 - 1.25 x 16 mm, front gear cover to timing gear housing

17шт.

8

J926846

FLANGE BOLT

BOLT hex, flange, 8 - 1.25 x 20 mm, class 10.9, timing gear housing to engine block

5шт.

8a

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

Timing gear housing to engine block Hex Flg, M12 x 50, 10.9

4шт.

9

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

10

J903463

PLUG,M63 x 5

front access

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front, access, cover

1шт.

12

J914868

COVER

PLATE access cover, flat, used with Ref. 4, P/N J926719 housing

1шт.

13

J931608

GASKET

access cover plate, used with Ref. 4, P/N J926719 housing, replaces P/N J919601 gasket

1шт.

14

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy, hex, flange, 12 - 1.75 x 25 mm, class 10.9, used with Ref. 4, P/N J926719 housing

2шт.

15

J905933

HOUSING

timing pin

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

19

J913994

O-RING

sealing

1шт.

20

100-2587

SNAP RING,0.875", Int, #87

Ring, Snap, (Replaces J904849) 0.875", Int, #87

1шт.

21

A77790

SEAL KIT

KIT oil, crankshaft front, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust

1шт.

Выбрано товаров: 27
