Запчасти Case IH 8910 (9-110) - DECALS, TRACTOR (09) - CHASSIS/ATTACHMENTS

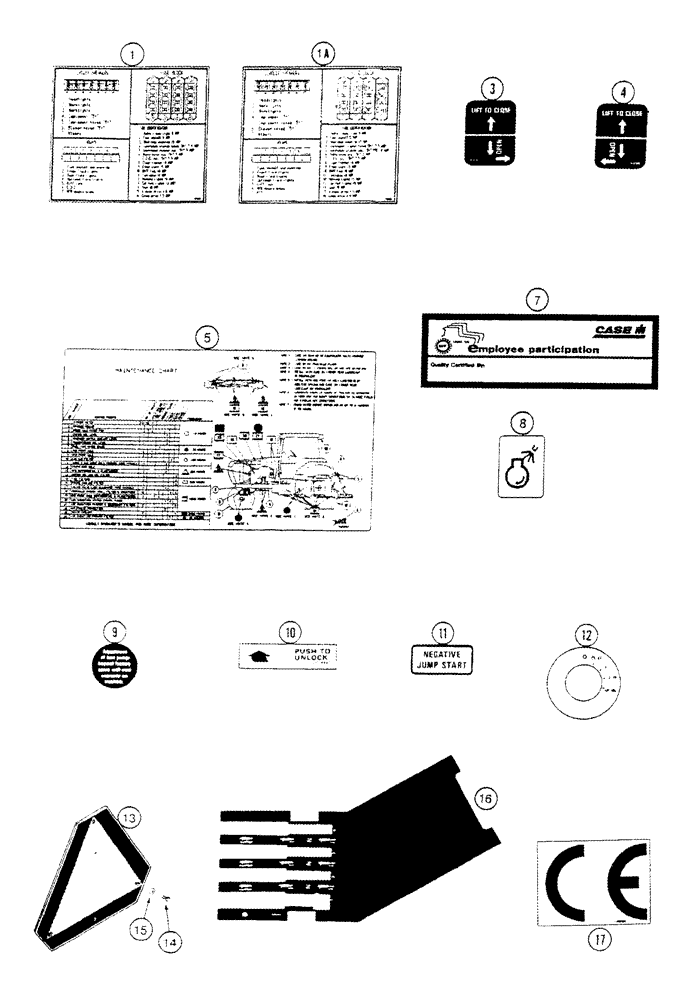

Схема запчастей Case IH 8910 - (9-110) - DECALS, TRACTOR (09) - CHASSIS/ATTACHMENTS
3
10
5
8
13
9
11
16
1a
1
12
7
17
14
15
4

Артикул

Название

Примечание

Количество

1

128975A1

DECAL

fuse panel (French)

1шт.

1a

237745A1

DECAL

fuse panel

1шт.

1b

308911A1

DECAL

fuse panel, with 3 point hitch, not shown

1шт.

1c

308912A1

DECAL

fuse panel, without 3 point hitch, not shown

1шт.

3

1954287C1

DECAL

lift to close, latch, front right window

1шт.

3

1976753C1

DECAL

lift to close, latch, front right window (French)

1шт.

Part of the French language decal Kit P/N 1974527C2

1шт.

4

1954288C1

DECAL

lift to close, latch, rear window

1шт.

4

1976754C1

DECAL

lift to close, latch, rear window (French)

1шт.

Part of the French language decal Kit P/N 1974527C2

1шт.

5

254018A1

DECAL

maintenance chart

1шт.

7

111605A2

DECAL

employee involvement, quality assurance

1шт.

8

1955349C1

DECAL

ether start

1шт.

9

A189007

DECAL

warranty, fuel pump

1шт.

10

321-4622

DECAL

push to unlock, instructions, hood unlatch

1шт.

10

321-5625

DECAL

push to unlock, instructions, hood unlatch (French)

1шт.

Part of the French language decal Kit P/N 1974527C2

1шт.

11

1968123C2

DECAL

negative jump start

1шт.

11

1974534C1

DECAL

negative jump start (French)

1шт.

Part of the French language decal Kit P/N 1974527C2

1шт.

12

1955107C1

LARGE PLATE

PLATE, LARGE lamp switch cover

1шт.

13

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle

1шт.

14

98000C1

BOLT,Hex, 5/16" x 11/16"

FASTENER - slow moving vehicle emblem

3шт.

15

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

3шт.

16

1999943C1

DECAL

auxiliary valve control lever pattern, and sector

1шт.

17

176262A1

DECAL

CE symbol, 60mm

1шт.

1974527C2

KIT

decal, French language, Includes: Ref. 3 P/N 1976753C1, Ref. 4 P/N 1976754C1, Ref. 10 P/N 321-5625, and Ref. 11 P/N 1974534C1and parts in Figure 9-112, kit no longer available, order individual decals

1шт.

Выбрано товаров: 27
