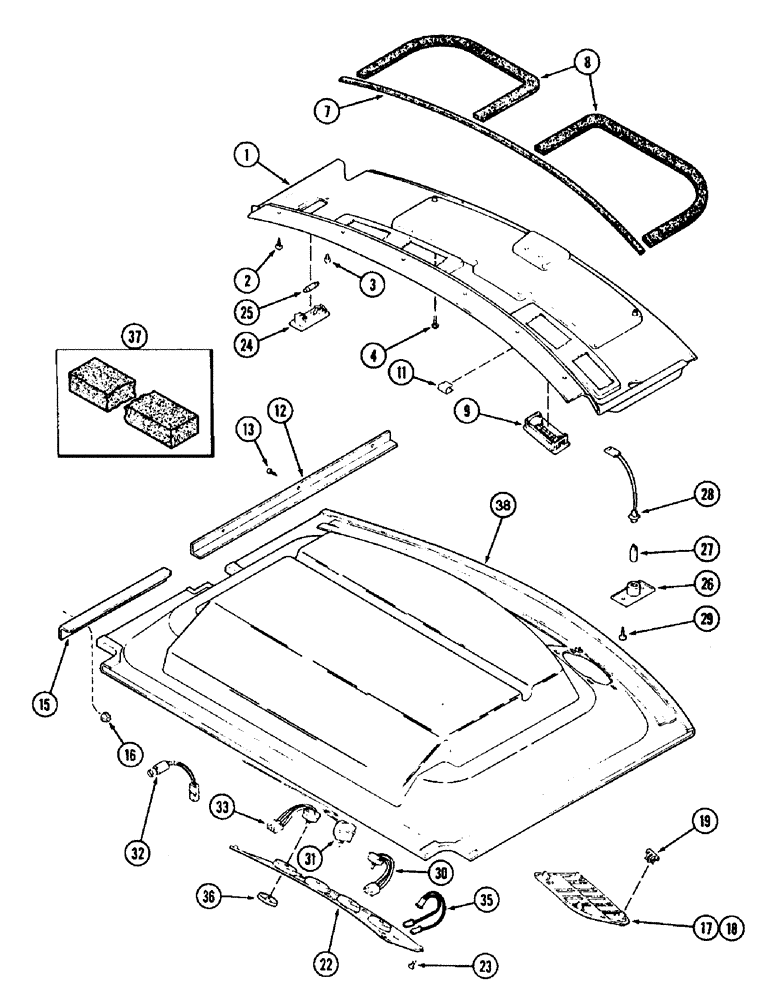

Запчасти Case IH 8910 (9-094) - CAB, HEADLINER AND CONTROL PANEL (09) - CHASSIS/ATTACHMENTS

1

96753C1

PANEL ASSY.

HEADLINER - cab, front

1шт.

2

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

self-tapping, truss head, No. 10-16 x 3/4 inch

6шт.

3

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

2шт.

4

97172C1

SELF-TAP SCREW,Cross Pan Hd, #10-16 x 1"

2шт.

7

97168C1

STRIP

SEAL - foam, 1100 mm (43-5/16 inch) long, cut from P/N 187874C1 bulk seal, see below

1шт.

8

98390C1

SEALING STRIP

SEAL - 13 (1/2) wide x 1000 (39-3/8) long x 25 mm (1 inch) thick, cut from P/N 1974884CX bulk strip, see below

2шт.

9

1958752C1

VENT

LOUVER - bezel, front window

8шт.

11

97201C1

CLIP

spring, U-shaped

4шт.

12

97016C1

ANGLE

SUPPORT - front, headliner left-hand

1шт.

13

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

3шт.

15

97024C1

SUPPORT ASSY.

headliner, rear, left-hand

1шт.

16

1330157C1

FLANGE NUT

self-locking, hex flange, special, 1/4 inch NC

2шт.

17

96979C1

GRILLE

speaker, left-hand

1шт.

18

96980C1

GRILLE

speaker, right-hand

1шт.

19

97058C1

CLIP

spring, retaining

8шт.

22

96813C2

PANEL ASSY.

switch

1шт.

23

1270762C1

SELF-TAP SCREW

pan head Phillips, No. 10-16 x 3/4 inch

6шт.

24

1983391C1

LAMP,12V, 10W

dome, Includes: Ref. 25

1шт.

25

E35556

BULB,12V, 10W

Lamp

1шт.

26

83882C91

LAMP

ASSEMBLY - console illumination, console, Includes: Ref. 27 and 28

1шт.

27

D71346

TAIL LAMP,12V

BULB, No. 168

1шт.

28

107329C1

WIRE HARNESS

AND SOCKET - bulb

1шт.

29

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

Replaces P/N 104033C2 screw

2шт.

30

92100C2

SWITCH

blower

1шт.

31

92101C1

SWITCH

thermostat

1шт.

32

122579A1

SWITCH, A/C LOW PRES

Low, air conditioner

1шт.

33

92115C2

SWITCH

wiper, windshield

1шт.

35

1964672C1

LIGHT

indicator, amber, 14 volt, air conditioner

1шт.

36

96893C1

KNOB

control, switch

4шт.

37

1977668C1

FOAM

PAD - headliner, front

1шт.

38

240873A1

PADDING

HEADLINER - cab, rear, used on models with round speakers, Includes: Ref. 39 and 40

1шт.

39

117987C1

SPRING NUT

U-type, No. 10-16, not shown

6шт.

40

199740A1

NUT

NUT - U-type, No. 8-32, not shown

8шт.

187874C1

GASKET

SEAL - bulk, adhesive backed, 3 (1/8) x 10 (3/8) x 15240 mm (600 inch) long

1шт.

1974884CX

SEAL

bulk roll, 13 (1/2) wide x 15240 (600 inch) long x 25 mm (1 inch)

1шт.
