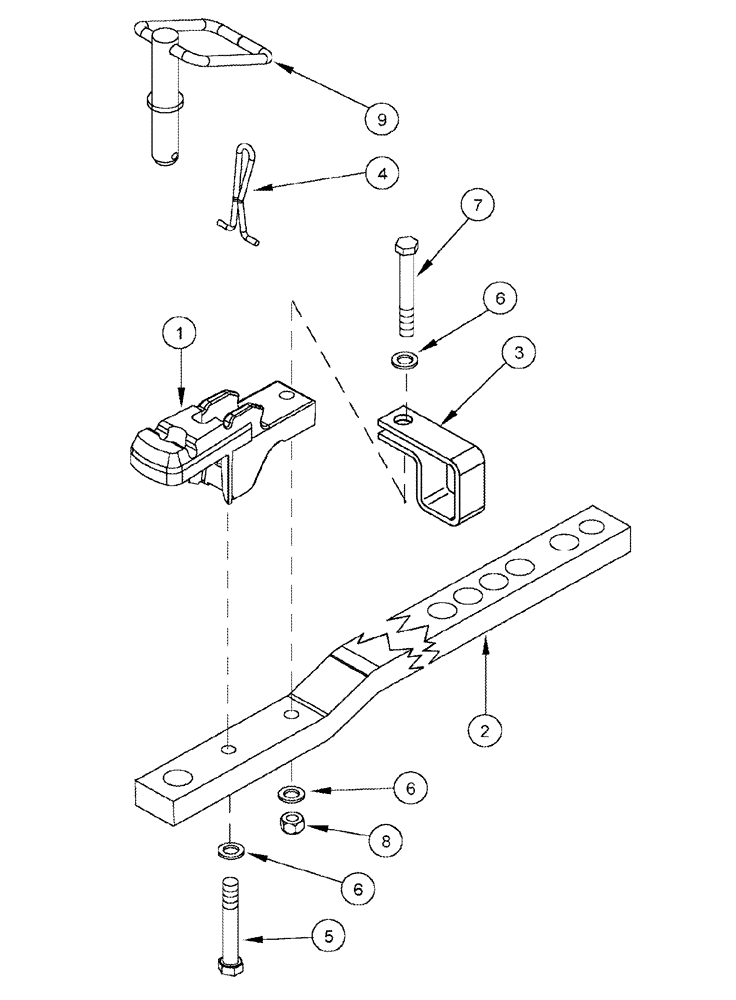

Запчасти Case IH 8910 (9-015A) - DRAWBAR HAMMERSTRAP, OFFSET (09) - CHASSIS/ATTACHMENTS

1

246895A1

STRAP

HAMMERSTRAP - drawbar, offset

1шт.

2

1286970C3

DRAWBAR,1489mm L x 76.2mm W x 38.1mm Thk, 31.9mm Offset

swinging

1шт.

3

284759A1

SUPPORT

chain

1шт.

4

232617A1

LATCH

draw pin

1шт.

5

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

1шт.

6

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

3шт.

7

828-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

1шт.

8

829-1420

NUT,M20, Cl 10

1шт.

9

232616A2

HITCH PIN

hammerstrap, special

1шт.
