Запчасти Case IH 8910 (9-014) - DRAWBAR HAMMERSTRAP (09) - CHASSIS/ATTACHMENTS

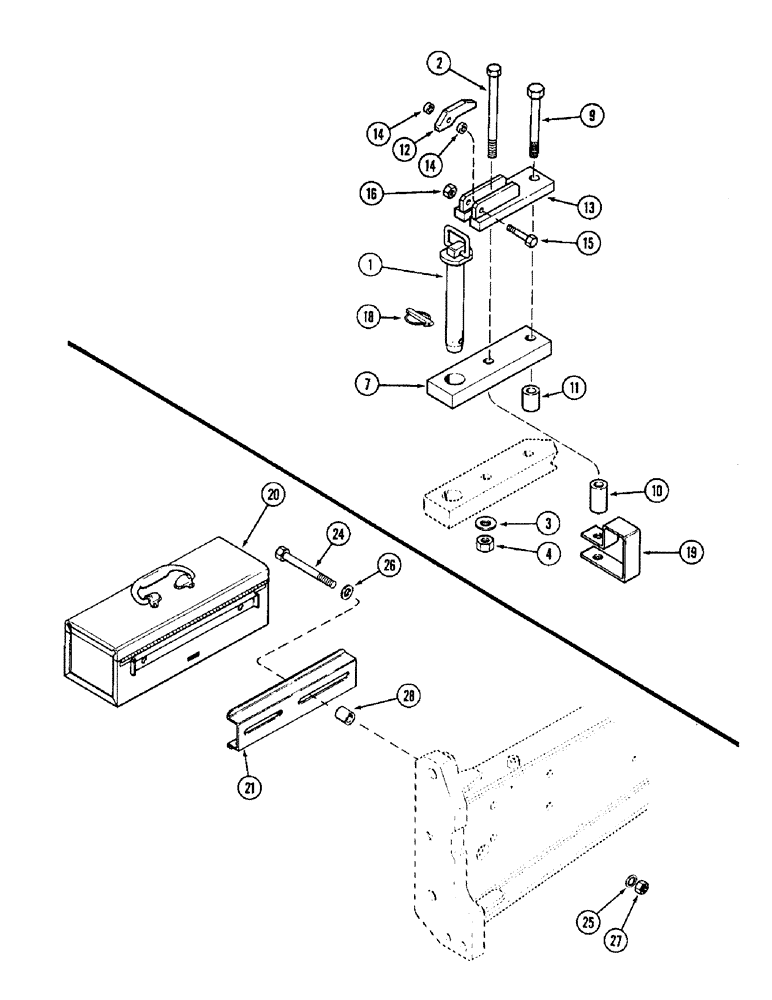

Схема запчастей Case IH 8910 - (9-014) - DRAWBAR HAMMERSTRAP (09) - CHASSIS/ATTACHMENTS
28
14
24
7
11
4
26
25
16
14
2
27
3
18
13
21
15
12
19
9
10
20
1

Артикул

Название

Примечание

Количество

1

1286985C4

HITCH PIN,40mm OD x 200mm L

hammerstrap, drawbar

1шт.

2

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

If used, Drawbar hammerstrap

1шт.

2

827-20210

BOLT,Hex, M20 x 2.5 x 210mm, Cl 10.9

If used, drawbar hammerstrap

1шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened, drawbar hammerstrap

2шт.

4

829-1420

NUT,M20, Cl 10

Drawbar hammerstrap

2шт.

7

1286984C1

DRAWBAR

HAMMERSTRAP

1шт.

9

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

If used, drawbar hammerstrap

1шт.

9

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

If used, drawbar hammerstrap

1шт.

10

1286924C1

SPACER

strap, drawbar

1шт.

11

1331939C1

SPACER

strap, drawbar

1шт.

12

1965315C2

LEVER

hammerstrap, drawbar

1шт.

13

1965312C3

LATCH ASSY.

hammerstrap, drawbar

1шт.

14

1965316C2

SPACER,13mm ID x 19.1mm OD x 8mm L

latch, drawbar hammerstrap

2шт.

15

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

Drawbar hammerstrap

1шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

Drawbar hammerstrap

1шт.

18

1348043C1

LINCH PIN

Klik, lock, special, drawbar hammerstrap

1шт.

19

1331943C1

SUPPORT ASSY.

chain, drawbar hammerstap

1шт.

1983805C1

BOX

TOOL ATTACHMENT - tractor, order from Machinery Price List, box, Includes: Ref. 20 thru 28

1шт.

20

A181436

TOOL BOX

includes handle, pin and tray

1шт.

NSS

NOT SOLD SEPARAT

HANDLE - tool box, not shown

1шт.

NSS

NOT SOLD SEPARAT

PIN - 'L' shaped, mounting, fabricate from 1/4 inch round stock, not shown, tool box

1шт.

NSS

NOT SOLD SEPARAT

TRAY - tote, not shown, tool box

1шт.

21

A181434

SUPPORT

BRACKET - mounting, tool box

1шт.

24

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

Tool box

2шт.

25

893-16016

LOCK WASHER,Int Tooth, M16

Tool box

2шт.

26

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat, Tool box

2шт.

27

825-1416

NUT,M16, Cl 8

Toolbox

2шт.

28

1348536C1

SPACER

mounting, tool box

2шт.

Выбрано товаров: 28
