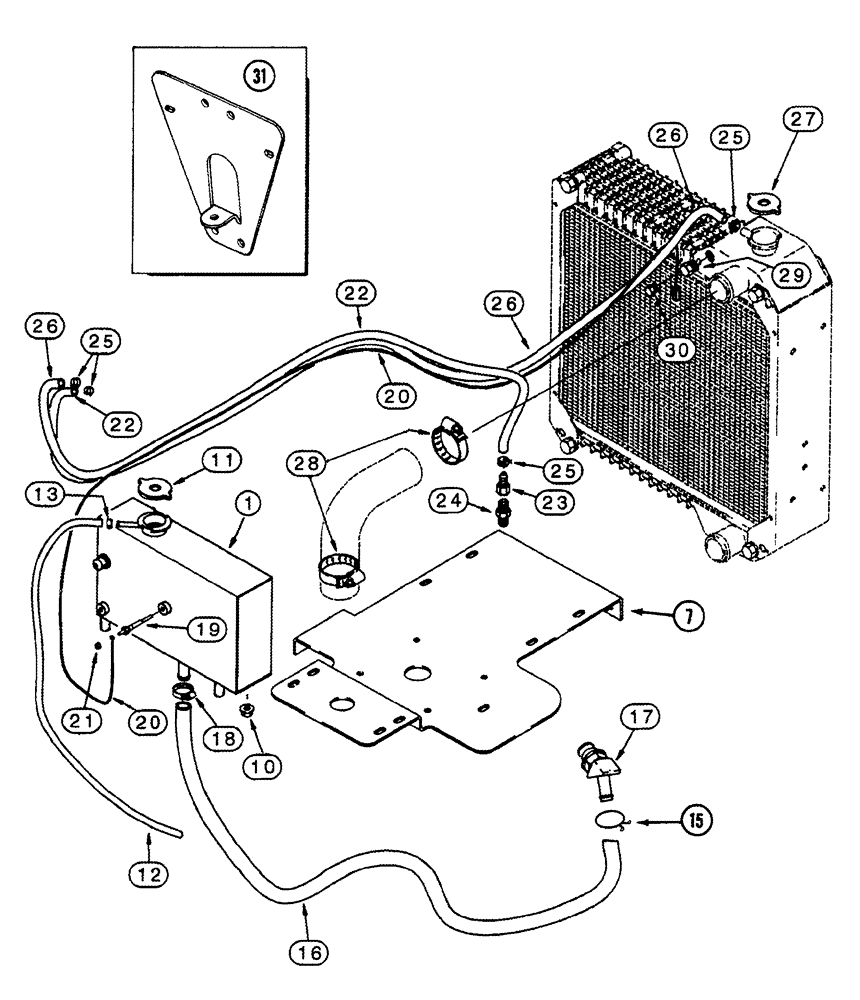

Запчасти Case IH 8910 (2-011C) - DEAERATION SYSTEM, SQUARED TANK, IF EQUIPPED (02) - ENGINE

250600A1

TANK

ASSEMBLY, deaeration, Includes: Ref. 1 - 6.

1шт.

Part of Deaeration Tank Kit P/N 324239A1

1шт.

1

NSS

NOT SOLD SEPARAT

TANK deaeration

1шт.

2

294886A1

PLUG

ADAPTER straight, 1/8-17 NPTF with No. 8 NC tapped hole, not shown

1шт.

3

493-41017

LOCK WASHER,Ext, #8

WASHER external tooth lock, No. 8, not shown

1шт.

4

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

machine, pan Phillips, No. 8 NC x 3/8", Not shown

1шт.

5

294885A1

GAUGE

ASSEMBLY, sight glass, not shown. Includes: Ref. 6.

1шт.

6

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Not shown -115, 70 Duro, .674" ID x .103" Thk

1шт.

7

278863A2

SUPPORT

PLATE support, deaeration tank/air cleaner, see Figure 2-013A for mounting hardware

1шт.

10

9804279

FLANGE NUT,Hex, M12, Cl 8

hex flange, 12 mm - 1.75

4шт.

Part of Deaeration Tank Kit P/N 324239A1

1шт.

11

301472A1

FILLER CAP

CAP, 10 psi, deaeration tank, Replaces: P/N A149609 cap

1шт.

12

142713A1

HOSE

1021 mm (40-7/32 inch) long, coolant overflow

1шт.

13

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP spring-type

1шт.

15

214-1316

HOSE CLAMP,#16, 1", Spring

CLAMP spring type, 1 inch

1шт.

16

253784A1

HOSE

19 (3/4) x 27 (1-1/16) x 1785 mm (70-5/16 inch) long, return

1шт.

17

217-185

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

ELBOW, 3/4 stem end x 1/2 inch PT, 45 degree

1шт.

18

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Adj #12, 0.69/1.25 Type F Worm

1шт.

19

279476A1

SENSOR

low coolant, Replaces: P/N A145513 sensor

1шт.

20

253865A1

CABLE

WIRE, coolant level extension, Serial Range: -JJA0076314

1шт.

21

824-1405

NUT,M5, Cl 5

1шт.

22

253764A1

HOSE

8 (5/16) x 14 (9/16) x 1520 mm (59-7/8 inch) long, engine cylinder head to deaeration tank

1шт.

23

241173A1

FITTING

ORIFICE straight, 0.120 inch hole, 1/8 PT x 5/16 inch stem end

1шт.

24

J911901

VALVE, CHECK

VALVE check

1шт.

25

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP spring-type

4шт.

26

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Cut from P/N L126767 bulk hose, Radiator to deaeration tank 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

27

253858A1

PLUG

CAP radiator, non-opening

1шт.

28

138773A1

CLAMP,52.32mm - 76.2mm

radiator hose

2шт.

29

86568834

PLUG,1/4" - 18 NPT

hex, 1/4 inch PT, radiator, Replaces Figure 2-002 Ref. 10, radiator vent to engine hose, used on some models

1шт.

30

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

Radiator Hex Hd, 1/8"-27 NPTF

1шт.

905-10030

BOLT,Hex Flg, M10 x 35mm

hex serrated flange, 10 - 1.5 x 30 mm, not shown

6шт.

306132C1

CABLE TIE,14.5" L

STRAP tie, 14 inch long, not shown

1шт.

31

311254A1

LARGE PLATE

PLATE support, deaeration tank, if used

1шт.

Part of Deaeration Tank Kit P/N 324239A1

1шт.

324239A1

KIT

deaeration tank, retrofit for fit, with instructions, Includes: P/N 250600A1, and Ref. 10 and 31, Serial Range: JJA0072000-JJA0078477

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

7.9 mm ID x 2336.00 mm, SAE 30R6 or SAE 20R4 Class D1

1шт.
