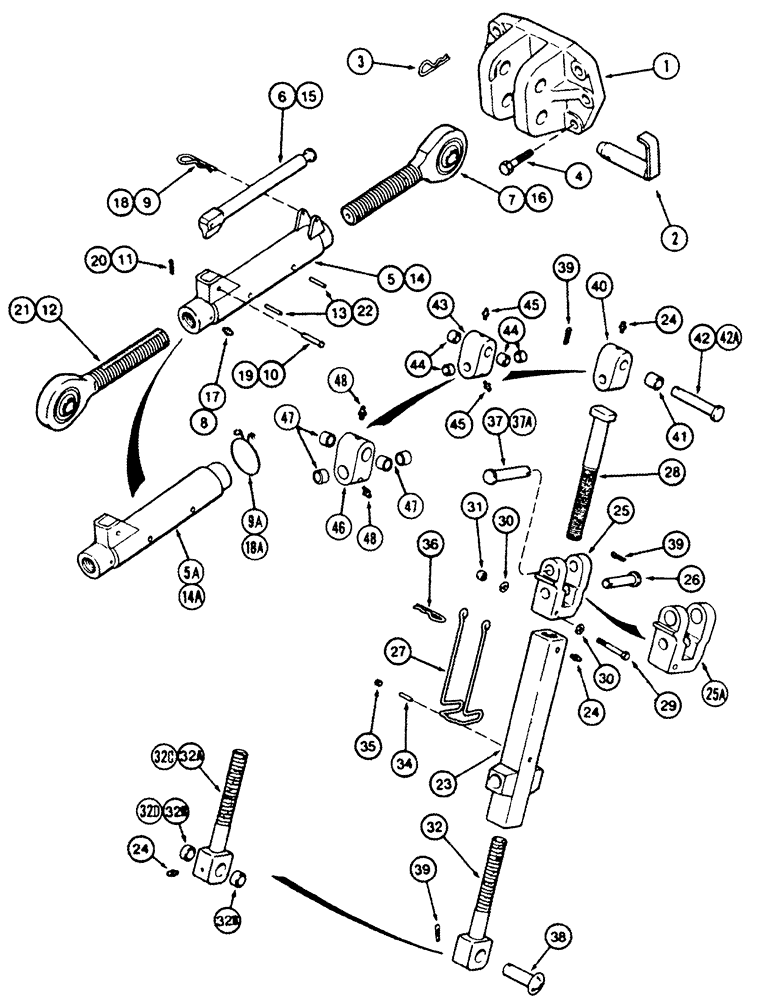

Запчасти Case IH 8910 (9-004) - HITCH UPPER LIFT LINKS, 1-1/2 INCH AND 1-3/4 INCH THREAD (09) - CHASSIS/ATTACHMENTS

1

1266971C4

HITCH BRACKET

link mounting, model 8920

1шт.

1

142614C3

BRACKET

link mounting, model 8910, not shown

1шт.

2

1286840C7

HITCH PIN

upper link bracket

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

6шт.

1331854C1

DRAG LINK

ASSEMBLY - upper, with 1-1/2 inch thread, no longer available, order P/N 1331854C2 link assembly below and P/N 315912A1 spring handle retainer, Includes: Ref. 5 thru 13

1шт.

1331854C2

LINK

ASSEMBLY - upper, with 1-1/2 inch thread, Includes: Ref. 5 thru 13

1шт.

5

1954221C2

LINK

TURNBUCKLE - upper, used with P/N 1331854C1 link assembly, no longer available, order P/N 1954221C3 turnbuckle below

1шт.

5a

1954221C3

LINK,1-1/2" - 6

TURNBUCKLE - upper, used with P/N 1331854C2 link assembly

1шт.

6

1331863C2

HANDLE

turnbuckle

1шт.

7

1981986C1

END,1-1/2" - 6

ROD - upper link, right-hand thread, without keyway

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Replaces 219-14 fitting

2шт.

9

1978738C1

HAIR PIN COTTER

3/16", used with P/N 1954221C2 turnbuckle

1шт.

9a

315912A1

SPRING

link, handle retainer, used with P/N 1954221C3 turnbuckle

1шт.

10

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

11

432-612

COTTER PIN,3/32" x 3/4"

1шт.

12

1282063C2

BALL JOINT,1-1/2" - 6, LH Threads

ROD - upper link, left-hand thread

1шт.

13

838-3638

PIN,M6 x 38, Coiled

roll, 6 x 38 mm

2шт.

1331855C1

DRAG LINK

ASSEMBLY - upper, with 1-3/4 inch thread, no longer available, order P/N 1331855C2 link assembly below and P/N 315912A1 spring handle retainer, Includes: Ref. 14 thru 22

1шт.

1331855C2

DRAG LINK

ASSEMBLY - upper, with 1-3/4 inch thread, Includes: Ref. 14 thru 22

1шт.

14

1954223C2

ARM

TURNBUCKLE - 1-3/4" thread, upper link, used with P/N 1331855C1 link assembly, no longer available, order P/N 1954223C3 turnbuckle below

1шт.

14a

1954223C3

ARM

TURNBUCKLE - upper link, used with P/N 1331855C2 link assembly

1шт.

15

1331863C2

HANDLE

turnbuckle

1шт.

16

1981988C1

END ASSY.,1-3/4" - 5

SCREW - 1-3/4" thread, includes ball, right-hand thread, without keyway

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Replaces 219-14 fitting

2шт.

18

1978738C1

HAIR PIN COTTER

3/16", used with P/N 1954223C2 turnbuckle

1шт.

18a

315912A1

SPRING

link, handle retainer, used with P/N 1954223C3 turnbuckle

1шт.

19

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

1шт.

21

1282082C2

LIFT LINK END ASSY,1-3/4" - 5, LH Threads

SCREW ASSEMBLY - includes ball, left-hand thread

1шт.

22

838-5645

LOCK PIN,M6 x 45, Slotted

roll, 6 x 45 mm

2шт.

23

149836C4

TURNBUCKLE

lift link

2шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Replaces 219-14 fitting

1шт.

24

219-86

LUBE NIPPLE,1/8" NPTF

Straight, self-tap, Replaces P/N 219-1 fitting

1шт.

25

1266968C1

YOKE

UNIVERSAL JOINT YOKE lift link, prior to serial number P/N JJA0094169

2шт.

25a

110450A1

YOKE

UNIVERSAL JOINT YOKE lift yoke, serail number P/N JJA0094169 and after

2шт.

26

39-51260

HEADED PIN,19.05mm OD x 95.25mm L

2шт.

27

123464C3

CLAMP

turnbuckle lock

2шт.

28

149838C1

ROD

leveling

2шт.

29

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

31

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

2шт.

32

NSS

NOT SOLD SEPARAT

ROD - leveling, without grease fitting port and without bushings, order: P/N 1272852C1 rod below, Ref. 32A

2шт.

32a

1272852C1

TRACK ROD END ASSY

lower leveling, with grease fitting port and bushings, Includes: Ref. 32B, Serial Range: -JJA0094169

2шт.

32b

1272674C1

BUSHING,26mm ID x 32.37mm OD x 21.2mm L

pivot, 26 (1-1/64) ID x 32 (1-1/4) OD x 21 mm (53/64 inch) long

2шт.

32c

315000A1

ROD ASSY.

lower leveling, with grease fitting port and bushings, Includes: Ref. 32D, Start Serial: JJA0094169

2шт.

32d

294770A1

BUSHING

pivot, 25.5 (1) ID x 28.9 (1-1/8) OD x 19 mm (3/4 inch) long

1шт.

33

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, straight, 1/4 PT x 7/8 inch

2шт.

34

38-11620

PIN,1/4" x 1 1/4", Slotted

2шт.

35

221-841

PLUG

hex socket, 1/4 inch PT

2шт.

36

480523R1

HAIR PIN COTTER

2шт.

37

1266969C1

AXLE PIN,19mm OD x 121.5mm L

head, 19 mm (3/4 inch) diameter, Serial Range: -JJA0094169

2шт.

37a

142020A2

CLEVIS PIN,38.1mm OD x 123.82mm L

headed, 25.3 mm (1 inch) diameter, Start Serial: JJA0094169

2шт.

38

242747A1

BOLT

PIN - leveling, Replaces: P/N 109088C4 pin

2шт.

39

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

40

1286725C2

BRACKET, PIVOT

PIVOT BRACKET SWIVEL ASSEMBLY - lift link, with one grease fitting and two bushings, Includes: Ref. 41 and (1) Ref. 45, P/N 219-14 fitting, if used

2шт.

41

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

lift link swivel

2шт.

42

24512R1

HEADED PIN,3/4" x 4 3/4"

, Serial Range: -JJA0094169

2шт.

42a

142020A2

CLEVIS PIN,38.1mm OD x 123.82mm L

headed, 25.3 mm (1 inch) diameter, Start Serial: JJA0094169

1шт.

43

1272669C2

PIVOT

SWIVEL ASSEMBLY - lift link, with two grease fittings and four bushings, Includes: Ref. 44 and 45, if used, Serial Range: -JJA0094169

2шт.

44

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

lift link swivel, 19.3 (3/4) ID x 25.5 (1) x 23.5 mm (15/16 inch) long

4шт.

45

219-14

LUBE NIPPLE,1/4" NPTF

Straight

2шт.

46

294767A1

PIVOT

SWIVEL ASSEMBLY - lift link, with two grease fittings and four bushings, Includes: Ref. 47 and 48, if used, Start Serial: JJA0094169

2шт.

47

294770A1

BUSHING

pivot, 25.5 (1) ID x 28.9 (1/34) OD x 19 mm (3/4 inch) long

4шт.

48

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
