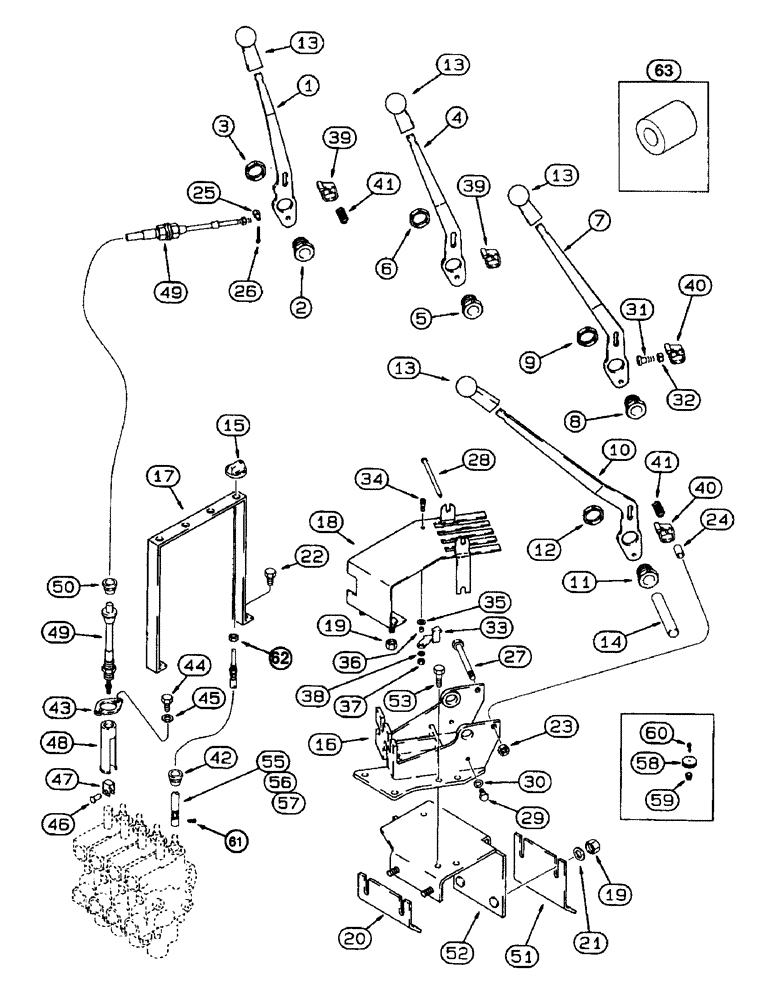

Запчасти Case IH 8910 (8-066) - REMOTE HYDRAULIC CONTROLS (08) - HYDRAULICS

1999718C2

LEVER

ASSEMBLY - control, first remote, Includes: Ref. 1 thru 3

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - control, first remote

1шт.

2

111793A1

BUSHING,1-1/8" - 18

BEARING - control lever

1шт.

3

111795A1

BEARING LOCK NUT

bearing

1шт.

1999719C2

LEVER

ASSEMBLY - control, second remote, Includes: Ref. 4 thru 6

1шт.

4

NSS

NOT SOLD SEPARAT

LEVER - control, second remote

1шт.

5

111793A1

BUSHING,1-1/8" - 18

BEARING - control lever

1шт.

6

111795A1

BEARING LOCK NUT

bearing

1шт.

1999720C2

LEVER

ASSEMBLY - control, third remote, Includes: Ref. 7 thru 9

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER - control, third remote

1шт.

8

111793A1

BUSHING,1-1/8" - 18

BEARING - control lever

1шт.

9

111795A1

BEARING LOCK NUT

bearing

1шт.

1999722C2

LEVER

ASSEMBLY - control, fourth remote, Includes: Ref. 10 thru 12

1шт.

10

NSS

NOT SOLD SEPARAT

LEVER - control, fourth remote

1шт.

11

111793A1

BUSHING,1-1/8" - 18

BEARING - control lever

1шт.

12

111795A1

BEARING LOCK NUT

bearing

1шт.

13

D135387

GRIP

KNOB - lever, remote

1шт.

14

111934A2

SHAFT

pivot, handle

1шт.

15

119033A1

KNOB

KNOB - flow control, push-on type, 1-1/2 inch diameter

1шт.

16

1999689C1

SUPPORT

pivot

1шт.

17

1999940C1

HOLDER

SUPPORT - cable, flow control

1шт.

18

1999944C3

PLATE ASSY.

selector valve

1шт.

19

825-1408

NUT,M8, Cl 8

10шт.

20

1283979C1

BRACKET

mounting, rear

1шт.

21

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

8шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

24

1999713C1

SPACER

9 x 11 x 23 mm, lockout, third remote

1шт.

25

1990625C1

ADAPTER,9.53mm OD x 23.01mm L

cable, end

1шт.

26

732-2012

COTTER PIN,M2 x 12

1шт.

27

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

1шт.

28

96829C1

AXLE PIN

lock, neutral

1шт.

29

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

30

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

31

840-1514

SCREW,Pan, M5 x 14mm, Cl 4.8

1шт.

32

824-1405

NUT,M5, Cl 5

1шт.

33

96851C2

LEVER

neutral, lockout

1шт.

34

565-107

HEX SOC SCREW,M4 x 20mm, Cl 8.8

1шт.

35

1251730C2

LOCK WASHER

friction, lockout lever

1шт.

36

96963C2

SPACER

lever

1шт.

37

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

38

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

1шт.

39

127123A1

LEVER

float lockout, first and second remote

2шт.

40

127124A1

LEVER

float lockout, third and fourth remote

2шт.

41

1986973C1

SPRING

flow sensing, 10 x 12 x 25 mm free length, float lockout

1шт.

42

96989C2

GROMMET

flow control cable

1шт.

43

1280055C2

FLANGE

housing

1шт.

44

627-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 10.9, Full Thd

If used

1шт.

44

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

If Used

1шт.

45

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

46

96846C2

AXLE PIN,7.87mm OD x 19.78mm L

clevis

1шт.

47

96790C2

CLEVIS COUPLING

cable

1шт.

48

1340478C1

HOUSING

support, cable

1шт.

49

96481C2

CABLE

control, valve, includes Ref. 50 grommet, Includes: Ref. 49A

1шт.

49a

425-154

JAM NUT,Jam, 1/4"-28, G5

For service on ends of Ref.49 cable

2шт.

50

96989C2

GROMMET

flow control cable

1шт.

51

1283978C1

BRACKET

mounting, front

1шт.

52

1283976C4

SUPPORT

PLATE - support, valve

1шт.

53

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

55

122662A3

CABLE

flow control, No. 1 and No. 2

2шт.

56

122663A3

CABLE

flow control, No. 3

1шт.

57

122664A3

CABLE

flow control, No. 4

1шт.

58

A160814

KNOB

flow control, tractors without in-cab flow control

2шт.

59

96987C1

GROMMET

tractors without in-cab flow control

1шт.

59a

96989C2

GROMMET

tractors with in-cab flow control, not shown

1шт.

60

484-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

Tractors without in-cab flow control

2шт.

61

323596A1

HEX SOC SCREW

set, hex socket socket head cap with adhesive, No. 8 NC x 13/32 inch, flat point, for service on Ref. 55 - 57 cables, replaces 83-3086 screw

1шт.

62

125-11006

SPECIAL NUT,3/8"-32, G2

For service on Ref. 55 - 57 cables

1шт.

63

1276364C1

SPACER

HUB - long, one used on 3 circuit; two used on two circuit

1шт.
