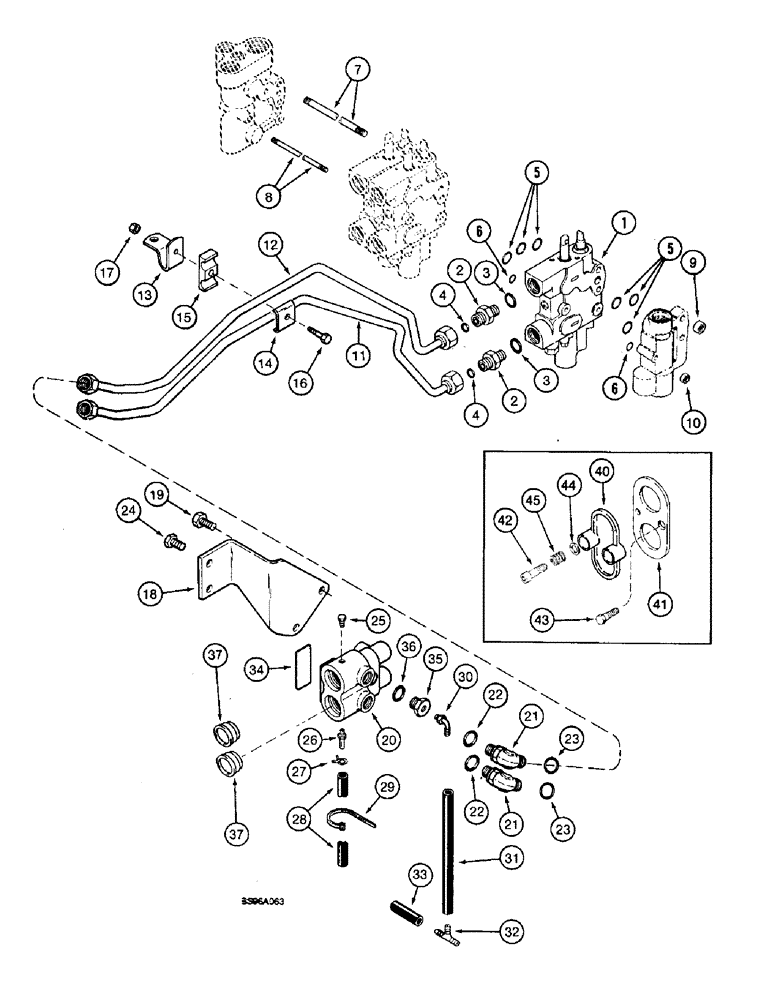

Запчасти Case IH 8910 (8-062) - THIRD CIRCUIT REMOTE HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic, see Figures 8-052 and 8-056

1шт.

2

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes Ref. 3, 4

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

5

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

6шт.

6

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

7

1994613C1

STUD

12 x 268 mm

2шт.

8

1334559C2

STUD

10 x 275 mm

1шт.

9

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

10

829-1310

NUT,M10, Cl 10

Hex, Class 10.9

1шт.

11

102219A1

TUBE,0.625" OD, 925, 189 mm Length

TUBE - raise, third circuit

1шт.

12

102220A1

TUBE,0.625" OD, 927, 132 mm Length

TUBE - drop, third circuit

1шт.

13

1289355C1

SUPPORT ASSY.

tube

1шт.

14

486004R1

CLAMP

tube

1шт.

15

224968C2

STRIP

CLAMP - isomount strip

1шт.

16

828-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

BOLT - hex, 8 - 1.25 x 40 mm, class 10.9

1шт.

17

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking, 8 mm - 1.25, class 10.9

1шт.

18

102519A1

SUPPORT

BRACKET - coupler, right-hand

1шт.

19

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

Bolt, Hex, M16 x 30, 10.9, Full Thd

2шт.

20

103866A2

COUPLING

ASSEMBLY - quick disconnect, see Figure 8-060

1шт.

21

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 degree, 1-14 face seal x 7/8-14 inch adj O-ring boss, Includes: Ref. 22 and 23

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

24

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

25

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

26

221-1101

FITTING,1/8" PT x 1/4"

NIPPLE - straight

1шт.

27

1348264C1

HOSE CLAMP

3/8 inch

1шт.

28

106514A1

HYDRAULIC HOSE

808 mm (30-13/16 inch) long, Coupler drain

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

30

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 degree

1шт.

31

1334641C1

HOSE,6.35 mm ID x 330.00 mm

330 mm (13 inch) long, cut from 427683C1 bulk hose, coupler, elbow to tee

1шт.

32

1289479C1

TEE

barbed, used on models with hitch

1шт.

33

1289484C1

HOSE

115 mm (4-9/16 inch) long, cut from 427683C1 bulk hose, drain, Serial Range: tee-tee

1шт.

34

1334583C3

DECAL

3 ISO, third coupler

1шт.

35

1334586C1

PLUG

ADAPTER - coupler drain, special, Includes: Ref. 36

1шт.

36

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

37

103871A1

CAP

PLUG - dust, coupler

2шт.

40

104301A1

DOOR COVER

coupler

1шт.

41

104302A1

MOUNTING PLATE

retaining

1шт.

42

104303A1

BOLT

BOLT - shoulder

1шт.

43

461-4258

HEX SOC SCREW,Flat Hd, 1/4"-20 x 1/2"

1шт.

44

110947A1

WASHER

flat, special

1шт.

45

110945A1

SPRING

coupler door

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

bulk, 6 (1/4) X 13 (1/2) x 15240 mm (600 inch) long, sold by the foot

1шт.
