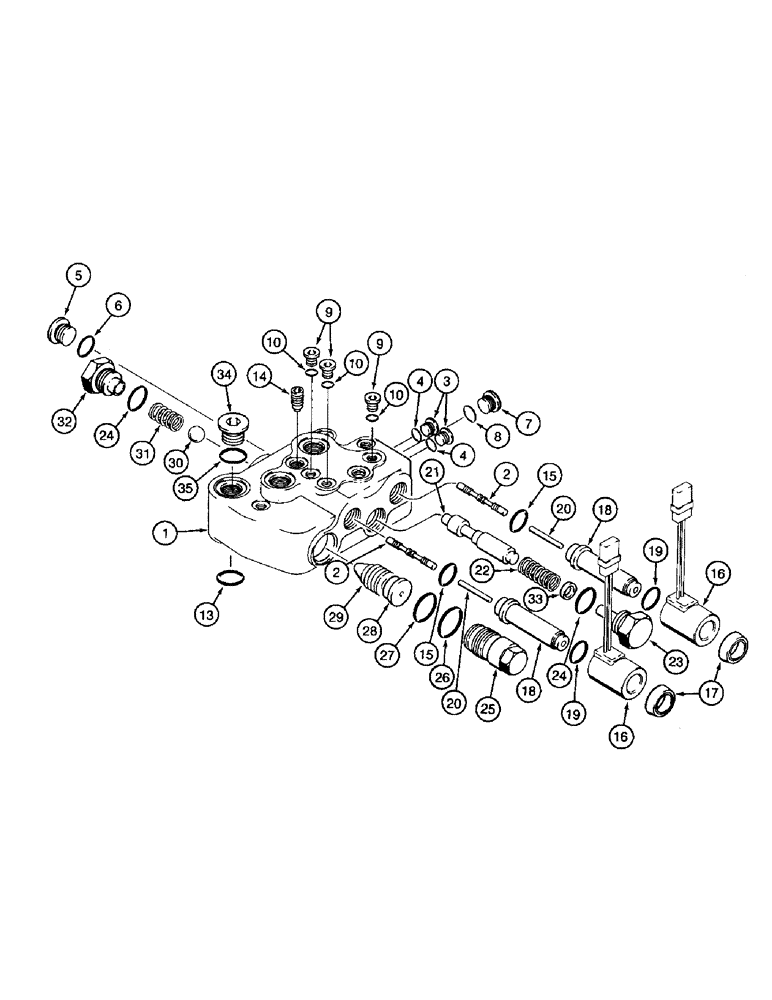

Запчасти Case IH 8910 (8-036) - HITCH CONTROL VALVE (08) - HYDRAULICS

251138A2

VALVE

ASSEMBLY - hitch control, Includes: Ref. 1 thru 35

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

188104A1

SPOOL

pilot

2шт.

3

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 4

2шт.

4

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Repair Kit P/N 243253A1

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 10

3шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

13

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1-5/16 ID x 3/32 inch wide

1шт.

Part of Seal Repair Kit P/N 243253A1

1шт.

14

188115A1

VALVE POPPET

check, signal

1шт.

15

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

Part of Seal Repair Kit P/N 243253A1

1шт.

16

243254A1

KIT

solenoid, without diode, 12 volt, DC, Includes: Ref. 16A, 16B, 16C

2шт.

16a

188105A1

SOLENOID

without diode, 12 volt , DC, not shown

1шт.

16b

225318C1

ELEC CONNECTOR,2 Pin

CONNECTOR - not shown

1шт.

16c

225315C1

ELEC CONNECTOR,Male, 2 Pin

wedge, not shown

1шт.

17

188106A1

NUT

special, solenoid coil

2шт.

18

188117A1

CARTRIDGE,72.25mm OAL

CORE - solenoid

2шт.

19

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

Part of Seal Repair Kit P/N 243253A1

1шт.

20

188116A1

PIN,3.25mm OD x 39.93mm L

solenoid actuating

2шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - meter in, main flow

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - meter in, main flow

1шт.

23

188110A1

PLUG

spool

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

Part of Seal Repair Kit P/N 243253A1

1шт.

243256A1

SERVICE KIT

meter out, Includes: Ref. 25 thru 29

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG - meter out poppet

1шт.

26

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

Part of Seal Repair Kit P/N 243253A1

1шт.

27

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

Part of Seal Repair Kit P/N 243253A1

1шт.

28

NSS

NOT SOLD SEPARAT

STEM - servo, meter out

1шт.

29

NSS

NOT SOLD SEPARAT

POPPET - meter out

1шт.

30

511-10200

BALL,20mm Dia

Gr 28, chrome alloy steel, Replaces P/N 211-1011 ball

1шт.

31

188114A1

SPRING

load check

1шт.

32

188107A1

PLUG

check valve

1шт.

33

NSS

NOT SOLD SEPARAT

SHIM - spring

1шт.

34

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of Seal Repair Kit P/N 243253A1

1шт.

243253A1

SEAL KIT

KIT - repair, Includes: Refs. 4, 6, 8, 10, 13, 15, 19, 24, 26, 27 and 35, plus includes 4 additional O-rings not used in this application

1шт.

Part of Seal Repair Kit P/N 243253A1

1шт.
