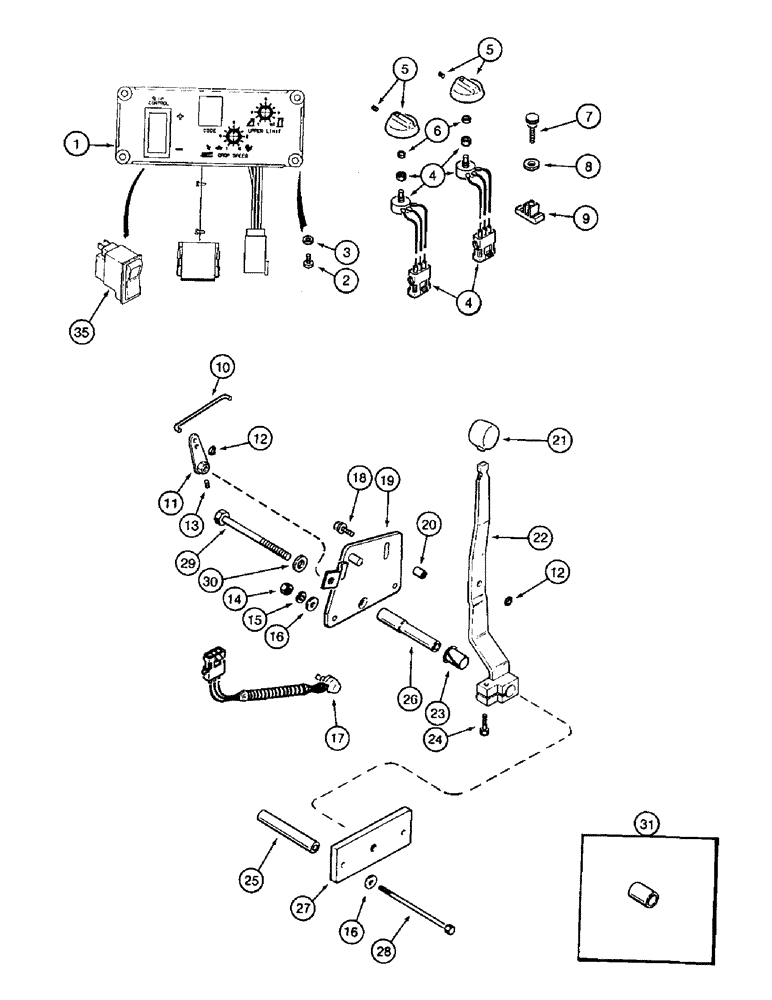

Запчасти Case IH 8910 (8-026) - HITCH CONTROL SYSTEM (08) - HYDRAULICS

1

235011A3

PANEL

secondary control

1шт.

2

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

4шт.

3

495-31022

WASHER,#10

4шт.

4

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical, Gauge, Load and Travel

2шт.

5

96729C1

KNOB

lever, draft and sensing

2шт.

6

97121C1

FRICTION WASHER

friction

2шт.

7

96860C1

KNOB

bar, stop

1шт.

8

1971243C1

WASHER

nylon

1шт.

9

1259806C1

BAR

stop-handle

1шт.

10

96677C1

ROD

control

1шт.

11

96673C4

LEVER ASSY.

control

1шт.

12

96686C1

RING

retaining

2шт.

13

877-1046

SET SCREW,M4 x 6mm

set, hex socket, 4 - 0.7 x 6 mm, cup point

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

892-11008

LOCK WASHER,8mm ID

2шт.

16

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

4шт.

17

114255A2

POTENTIOMETER,1000 Ohm, 8V

Gauge, Position

2шт.

18

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

hex flange, special, 6 - 1 x 20 mm

1шт.

19

96667C1

PLATE ASSY.

support

1шт.

20

96679C1

STOP

handle

1шт.

21

A177435

BALL KNOB

lever

1шт.

22

1280384C3

HANDLE

hitch position control

1шт.

23

1283599C1

BUSHING,19.08mm ID x 28.58mm OD x 28.57mm L

pivot, lever

1шт.

24

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

25

96681C1

SPACER

plate

2шт.

26

1340476C2

SPACER

pivot support

1шт.

27

1340477C1

LARGE PLATE

PLATE, LARGE pivot support

1шт.

28

827-8160

BOLT,Hex, M8 x 1.25 x 160mm, Cl 10.9

BOLT - hex, 8 - 1.25 x 160 mm, class 10.9

2шт.

29

814-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8

1шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

31

97203C2

SPACER

pivot, 25/32 (19) x 1 (25) x 1-1/2 inch (39 mm) long, without hitch

1шт.

35

243549A1

IGNITION SWITCH

slip control, includes socket and bulb listed below

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

2 watt

1шт.
