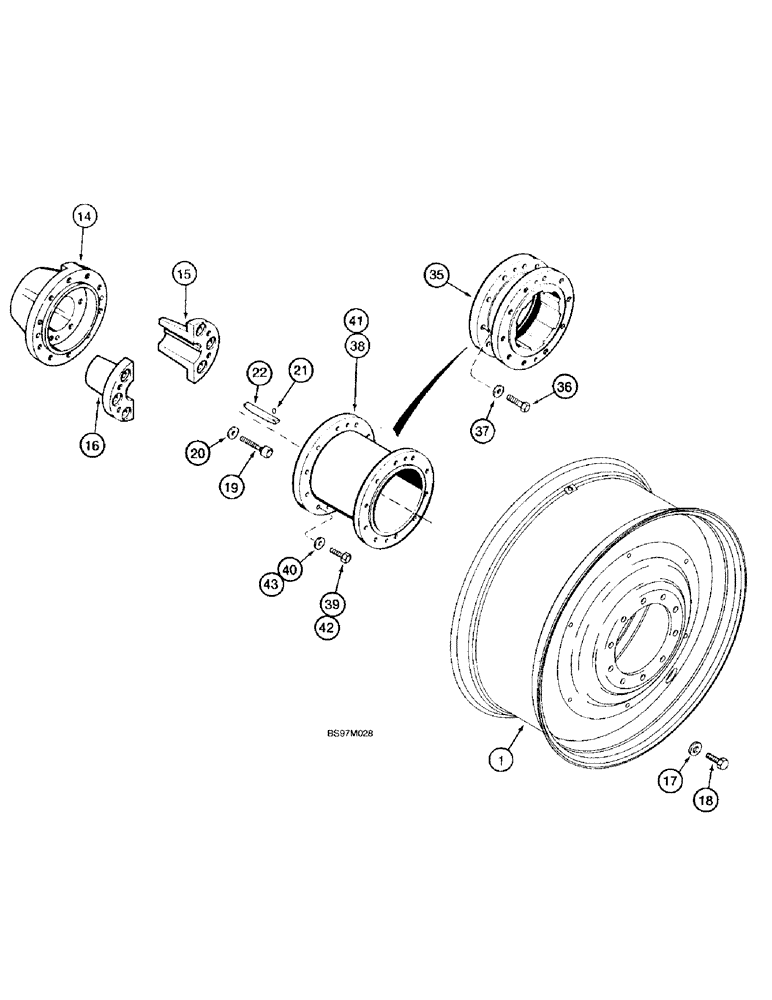

Запчасти Case IH 8910 (6-091A) - SOLID STEEL DUAL WHEELS, P.I.N. JJA0083000 AND AFTER (06) - POWER TRAIN

1

199661A1

RIM

WHEEL solid steel, W16A-38, for 18.4-38 tire

2шт.

1

222665A1

WHEEL

solid steel, W18A-38, for 20.8-38 tire

2шт.

1

193300A2

RIM

solid steel, MW23A-38, for 710/70R-38 tire

2шт.

1

221362A1

WHEEL

solid steel, W16A-42, for 18.4-42 tire

2шт.

1

193857A1

WHEEL

solid steel, W18A-42, for 20.8-42 tire

2шт.

1

276687A1

WHEEL

solid steel, MW20A-42, for 620/70R-42 tire

2шт.

1

196254A1

WHEEL

solid steel, W13-46, for 14.9-46 and 420/80R-46 tire

2шт.

1

196488A1

WHEEL

solid steel, W16A-46, for 18.4-46 tire

2шт.

A67643

PACKAGE

HUB ATTACHMENT - wheel, 10 bolt, order from Machinery Price List, Includes: hub assembly and Ref. 14 thru 22, 8910 tractor

1шт.

1968131C2

HUB ASSY.

HUB ASSEMBLY wheel, 10 bolt, order from Machinery Price List, Includes: Ref. 14 thru 22, 8910 tractor

2шт.

14

A180916

HUB

wheel, 10 bolt, 8910 tractor

1шт.

15

1968132C1

BUSHING

wheel, two piece, keyed half, 3-1/2 inch ID, 8910 tractor

1шт.

16

1968133C1

BUSHING

wheel, two piece, plain half, 3-1/2 inch ID, 8910 tractor

1шт.

17

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

flat, 15/16 x 1-3/4 x 7/32 inch, hardened, 8910 tractor

10шт.

18

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, grade 8, 8910 tractor

10шт.

19

113-839

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8, Full Thd

8910 tractor Hex, 7/8"-9 x 3 1/2", G8, Full Thd

6шт.

20

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

flat, 15/16 x 1-3/4 x 7/32 inch, hardened, 8910 tractor

6шт.

21

38-11608

LOCK PIN,1/4" x 1/2", Slotted

PIN, LOCK, , 8910 tractor 1/4" x 1/2", Slotted

1шт.

22

1530716C1

BUCKET TOOTH KEY

KEY axle, 5/8 x 5 inch, 8910 tractor

1шт.

A67687

HUB

ATTACHMENT - wheel, 10 bolt, order from Machinery Price List, Includes: hub assembly and Ref. 14 thru 22, 8920 tractor

1шт.

1334527C3

HUB

ASSEMBLY - wheel, 10 bolt, order from Machinery Price List, Includes: Ref. 14 thru 22, 8920 tractor

2шт.

14

A180916

HUB

wheel, 10 bolt, 8920 tractor

1шт.

15

1334525C2

BUSHING

wheel, two piece, keyed half, 4 inch ID, 8920 tractor

1шт.

16

1334526C2

BUSHING

wheel, two piece, plain half, 4 inch ID, rear, 8920 tractor

1шт.

17

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

flat, 15/16 x 1-3/4 x 7/32 inch, hardened, 8920 tractor

10шт.

18

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, grade 8, 8920 tractor

10шт.

19

113-839

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8, Full Thd

8920 tractor Hex, 7/8"-9 x 3 1/2", G8, Full Thd

6шт.

20

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

flat, 15/16 x 1-3/4 x 7/32 inch, hardened, 8920 tractor

6шт.

21

38-11608

LOCK PIN,1/4" x 1/2", Slotted

PIN, LOCK, , 8920 tractor 1/4" x 1/2", Slotted

1шт.

22

A63219

KEY

axle, 3/4 x 6 inch, 8920 tractor

1шт.

A187233

HUB

SPACER KIT - dual wheel, 5 inch, order from Machinery Price List, Includes: Ref. 35 thru 37, 8910 and 8920 tractor

1шт.

35

1342168C1

HUB

SPACER - dual wheel, 5 inch, 8910 and 8920 tractor

2шт.

36

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, grade 8, 8910 and 8920 tractor

20шт.

37

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

flat, 15/16 x 1-3/4 x 7/32 inch, hardened, 8910 and 8920 tractor

20шт.

241970A1

PACKAGE

SPACER KIT - dual wheel, 10 inch, order from Machinery Price List, Includes: Ref. 38 thru 40, 8920 tractor

1шт.

38

241972A1

SPACER

dual wheel, 10 inch, 8920 tractor

2шт.

39

426-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 8

- hex, 7/8 NC x 3 inch, grade 8, 8920 tractor

20шт.

40

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

flat, 15/16 x 1-3/4 x 7/32 inch, hardened, 8920 tractor

20шт.

A67939

COUPLING

SPACER KIT - dual wheel, 13 inch, order from Machinery Price List, Includes: Ref. 41 thru 43, 8920 tractor

1шт.

41

1342141C1

SPACER

dual wheel, 13 inch, 8920 tractor

2шт.

42

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, grade 8, 8920 tractor

20шт.

43

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

flat, 15/16 x 1-3/4 x 7/32 inch, hardened, 8920 tractor

20шт.
