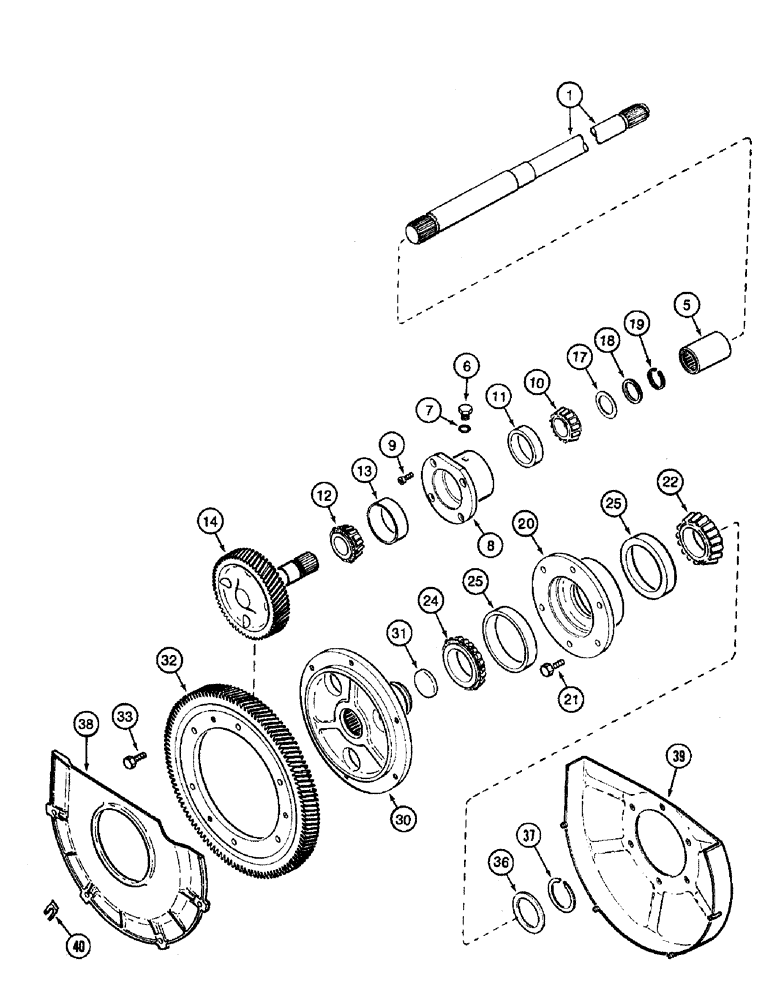

Запчасти Case IH 8910 (6-082) - PTO REDUCTION GEARS (06) - POWER TRAIN

1

238758A1

SHAFT

drive, rear

1шт.

5

109651C1

COUPLING,21T

shaft

2шт.

6

76349

PLUG,9/16" - 18 ORB

Incl. Ref 7 Hex Hd, 9/16"-18 ORB

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

1349450C1

BEARING HOUSING

bearing

1шт.

9

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 20 mm, class 12.9

4шт.

10

93292C1

BEARING ASSY,1.375" ID x 2.717" OD x 0.7813"

CONE tapered roller, bearing

1шт.

11

ST991

BEARING CUP

CUP tapered roller, bearing

1шт.

12

93294C1

TAPERED BEARING,35 mm ID x 28 mm

CONE tapered roller, bearing

1шт.

13

93295C1

BEARING, CUP,72 mm OD x 22 mm

CUP tapered roller, bearing

1шт.

14

93264C1

GEAR WHEEL

GEAR drive, PTO, 57 teeth

1шт.

17

92809C1

SHIM

gear, 0.25 mm

1шт.

17

92808C1

SHIM

gear, 0.30 mm

1шт.

17

92807C1

SHIM

gear, 0.41 mm

1шт.

18

1264649C1

SHIM

gear, 3.814 mm

1шт.

19

1259828C1

RING

retaining, optional with P/N 101-16131

1шт.

20

139307C3

BEARING HOUSING

bearing

1шт.

21

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm

6шт.

22

496535C1

BEARING ASSY,61.912 mm ID x 110 mm OD x 22 mm

CONE tapered roller, bearing

1шт.

24

ST753B

BEARING ASSY,66.67mm ID x 22mm W

BEARING tapered roller

1шт.

25

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP tapered roller, bearing, 4-5/16 inch OD

2шт.

1264951C1

HUB

HUB ASSEMBLY - gear, PTO driven, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

HUB - gear, driven

1шт.

31

41-1632

PLUG,Cup, 2", Stainless

cup, 2 inch diameter

1шт.

32

1277012C1

GEAR WHEEL

GEAR driven, 125 teeth

1шт.

33

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 30 mm

6шт.

36

296751A1

BEARING WASHER

bearing, 3.40 mm

1шт.

36

1264638C1

WASHER

SHIM bearing, 3.44 mm

1шт.

36

1259699C1

WASHER

SHIM bearing, 3.48 mm

1шт.

36

1259700C1

WASHER

SHIM - bearing, 3.52 mm

1шт.

36

1259701C1

WASHER

SHIM - bearing, 3.56 mm

1шт.

36

1259702C1

WASHER

SHIM bearing, 3.6 mm

1шт.

36

1259703C1

WASHER

SHIM bearing, 3.64 mm

1шт.

36

1259704C1

WASHER

SHIM bearing, 3.68 mm

1шт.

36

1264639C1

WASHER

bearing, 3.72 mm

1шт.

37

1259698C1

CIRCLIP

RING - retaining

1шт.

38

1997579C1

HOUSING

COVER - shield, oil

1шт.

39

139329C1

SHIELD

gear

1шт.

40

139327C1

CLIP

retaining, cover

4шт.
