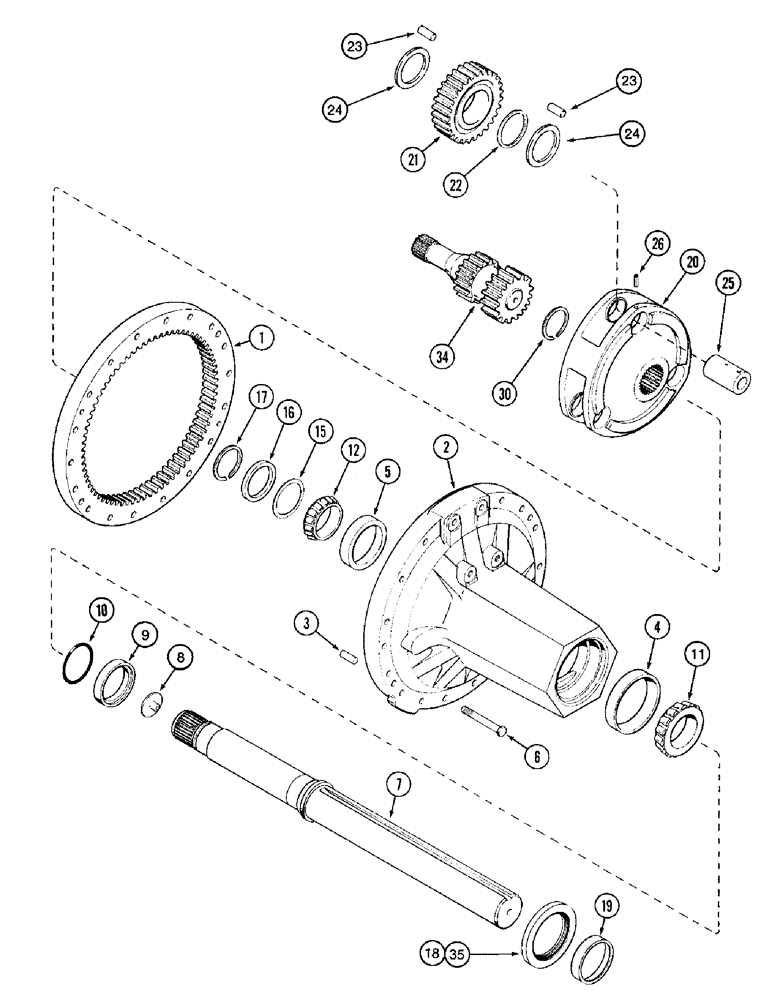

Запчасти Case IH 8910 (6-066) - REAR AXLE AND CARRIER, 3-1/2 X 96 INCH AND 3-1/2 X 112 INCH AXLE (06) - POWER TRAIN

1

120942C2

GEAR

ring, 72 teeth

2шт.

2

1968487C1

CARRIER

ASSEMBLY - axle, Includes: Ref. 3 thru 5

2шт.

3

837-16040

DOWEL,M16 x 40

PIN - 16 x 40 mm, hardened

2шт.

4

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

CUP tapered roller, bearing

1шт.

5

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP tapered roller, bearing

1шт.

6

813-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 - 2.0 x 120 mm

32шт.

7

1968337C4

SHAFT ASSY.

AXLE ASSEMBLY - rear, 3-1/2 x 96 inch, Includes: Ref. 8 and 9

2шт.

7

1968336C4

SHAFT ASSY.

AXLE ASSEMBLY - rear, 3-1/2 x 112 inch, Includes: Ref. 8 and 9

2шт.

8

1981270C1

INSERT

rear axle

1шт.

9

1968333C1

BUSHING,90mm ID x 109.85mm OD x 19.5mm L

bearing spacer

1шт.

10

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

2шт.

11

38703D

BEARING, ROLLER, CYL,88.91mm ID x 36.22mm W

CONE tapered roller, bearing

2шт.

12

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE tapered roller, bearing

2шт.

15

143933C1

SHIM

bearing, 0.76 mm

1шт.

15

143934C2

SHIM

bearing, 0.30 mm

1шт.

15

143935C1

SHIM

bearing, 0.18 mm

1шт.

15

143936C1

SHIM

bearing, 0.10 to 0.13 mm

1шт.

15

143937C1

SHIM

bearing, 0.06 to 0.09 mm

1шт.

16

137777C1

RING

thrust

2шт.

17

1277025C1

RING

retaining

2шт.

94546C1

SEAL KIT

KIT seal and sleeve, axle, Includes: Ref. 18 and 19

2шт.

18

84842C1

OIL SEAL,120mm ID x 160.23mm OD x 12mm Thk

SEAL oil, over size

1шт.

19

92688C1

BUSHING,109.87mm ID x 120mm OD x 25.5mm L

SLEEVE wear

1шт.

20

1349351C1

PINION CARRIER

CARRIER gear

2шт.

21

1349354C2

PINION

GEAR - planet, 27 teeth

6шт.

22

1349348C1

THRUST RING

RING thrust

6шт.

23

1349353C1

NEEDLE BEARING

BEARING needle

348шт.

24

1997886C1

THRUST WASHER

WASHER thrust

12шт.

25

1349352C1

SHAFT

bearing

6шт.

26

838-3826

PIN,M8 x 26, Coiled

6шт.

30

101-11315

SNAP RING,#315, 2.980, Ext

RING external retaining, No. 315

2шт.

34

1981238C1

SHAFT

sun gear

2шт.

35

85244C1

OIL SEAL

SEAL oil

2шт.

36

1963820C1

SPACER

sun gear, not shown

1шт.
