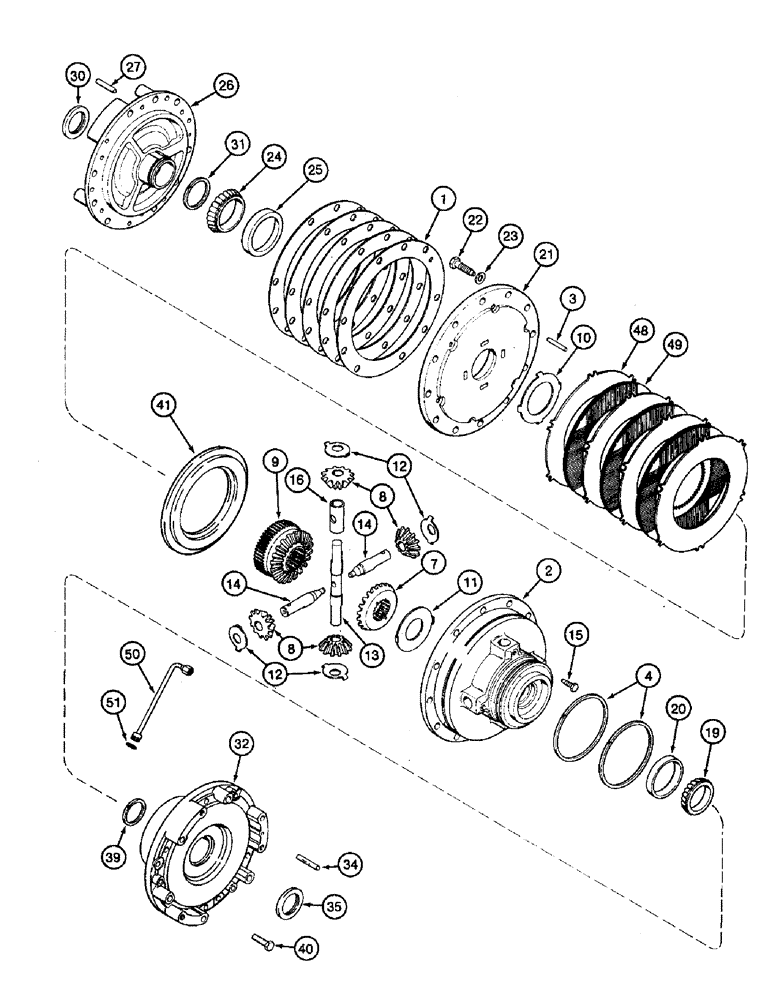

Запчасти Case IH 8910 (6-048) - TRANSMISSION, DIFFERENTIAL, 1997751C1 CASE (06) - POWER TRAIN

1

120513C2

SHIM,290mm ID x 388mm OD x 0.08mm Thk

retainer, 0.09 mm

1шт.

1

120512C2

SHIM

retainer, 0.1 mm

1шт.

1

120509C2

SHIM

retainer, 0.18 mm

1шт.

1

120510C2

SHIM

retainer, 0.31 mm

1шт.

1

120511C2

SHIM

retainer, 0.74 mm

1шт.

2

1997751C1

CAGE

CASE - differential, right

1шт.

3

137023A1

DOWEL

PIN - 10 x 60 mm, hardened

6шт.

4

148940C1

RING

seal

2шт.

7

1264681C2

GEAR

bevel, 22 teeth, differential

1шт.

8

1264923C2

GEAR

pinion, 12 teeth, differential

4шт.

9

1264682C2

GEAR

lock, 22 teeth, bevel

1шт.

10

94646C2

LOCK WASHER,88mm ID x 144mm OD x 1.62mm Thk

thrust

1шт.

11

94647C2

THRUST WASHER,58mm ID x 124mm OD x 1.62mm Thk

thrust

1шт.

12

94645C2

THRUST WASHER,28mm ID x 75mm OD x 1.5mm Thk

thrust

4шт.

13

1276902C3

LONG SHAFT

SHAFT pinion, long

2шт.

14

1285777C3

SHORT SHAFT

SHAFT pinion, short

2шт.

15

1997421C1

BOLT

- pin

2шт.

16

1963820C1

SPACER

gear

1шт.

19

529452R1

BEARING ASSY,2.9528" ID x 4.5276" OD x 0.9843"

CONE tapered roller, bearing

1шт.

20

529453R1

BEARING, CUP

CUP tapered roller, bearing

1шт.

21

94644C1

COVER ASSY

COVER case differential

1шт.

22

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

12шт.

23

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

24

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE tapered roller, bearing

1шт.

25

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP tapered roller, bearing

1шт.

26

137756C2

RETAINER

bearing, left

1шт.

27

136433A1

DOWEL,M12 x 65mm, HDN

PIN dowel, 12 x 65 mm, hardened

5шт.

30

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

oil

1шт.

31

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

seal

1шт.

32

1997450C1

RETAINER

differential, right

1шт.

34

136433A1

DOWEL,M12 x 65mm, HDN

PIN dowel, 12 x 65 mm, hardened

5шт.

35

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

oil

1шт.

39

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

seal

1шт.

40

613-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

3шт.

40

613-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

3шт.

41

1997422C1

PISTON

lock, differential

1шт.

48

137802C1

PLATE ASSY.

PLATE friction

3шт.

49

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

separator

4шт.

50

137803C1

HYD TUBE,9.25 mm Diameter, 222, 54.9 mm Length

TUBE pressure, lock

1шт.

51

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
