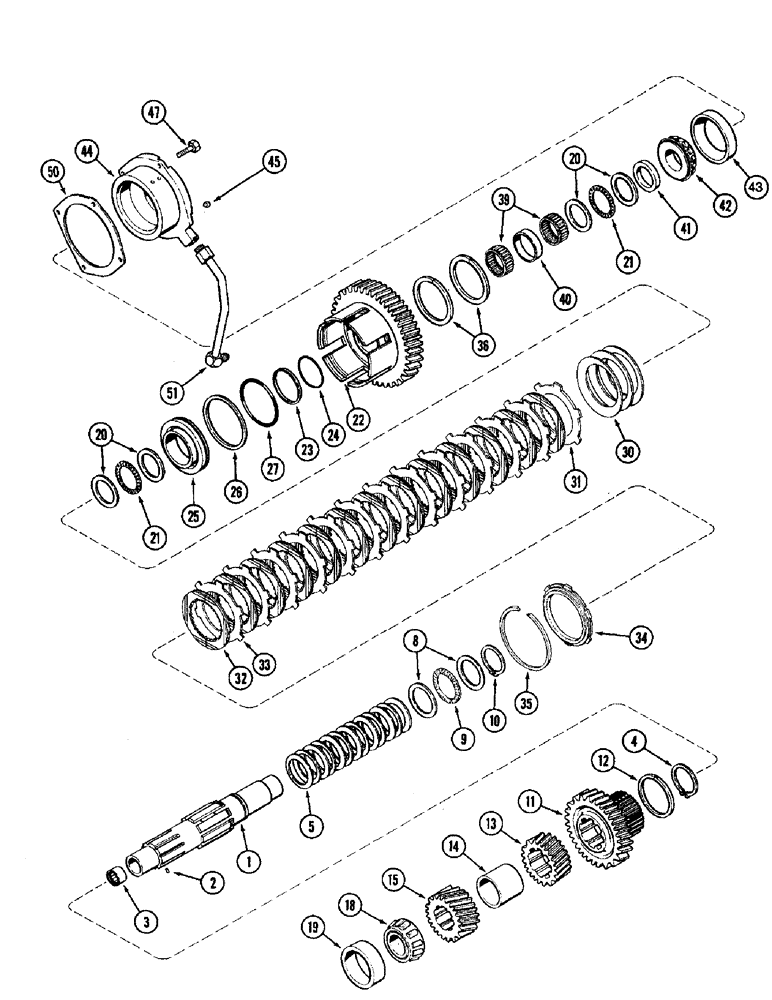

Запчасти Case IH 8910 (6-044) - TRANSMISSION, RANGE COUNTERSHAFT (06) - POWER TRAIN

1

1954059C2

SHAFT

ASSEMBLY - counter, Includes: Ref. 2

1шт.

2

38-3605

PIN,3/32" x 5/16", Coiled

3шт.

3

D63322

ROLLER BEARING,Needle, 31.75mm ID x 38.1mm OD x 19.05mm W

BEARING roller

1шт.

4

144348C1

SNAP RING,Ext Rtng, 66.294mm ID

RING snap

1шт.

5

1286012C2

BELLEVILLE WASHER

Belleville spring

13шт.

8

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER thrust

2шт.

9

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING needle, thrust

1шт.

10

101-11250

SNAP RING,#250, 2.356, Ext

RING, SNAP, #250, 2.356, Ext

1шт.

11

1285978C1

PINION

GEAR - driven, 39 teeth, medium range

1шт.

12

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal

1шт.

13

1285980C1

PINION

GEAR - driven, 24 teeth, high range

1шт.

14

1286041C2

SPACER

gear

1шт.

15

1285990C1

PINION

GEAR - driver, 23 teeth, constant mesh

1шт.

18

84986C1

BEARING ASSY,49.21mm ID x 44.48mm W

CONE tapered roller, bearing

1шт.

19

NNA40435

BEARING CUP,103.2mm OD x 36.51mm W

CUP tapered roller bearing

1шт.

20

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

WASHER thrust

4шт.

21

K620185

THRUST BEARING

BEARING needle, thrust

2шт.

22

1285968C3

GEAR

driven, 54 teeth, low range

1шт.

23

1286077C1

RING,74.96mm ID x 78mm OD x 2.28mm Thk

driven

1шт.

24

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING piston, low clutch inner

1шт.

25

1285999C2

PISTON ASSY.

PISTON clutch, low

1шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift

1шт.

27

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING piston, low clutch outer

1шт.

30

93129C1

BELLEVILLE WASHER

Belleville spring

3шт.

31

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction

1шт.

32

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction

13шт.

33

92934C2

DISC

separator

12шт.

34

1342854C2

DISC

backing

1шт.

35

1285996C1

SNAP RING,151mm OD, Internal

RING retaining

1шт.

36

1286028C2

RING,109.41mm ID x 113.41mm OD x 2.87mm Thk

gear

2шт.

39

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

BEARING needle, caged

2шт.

40

93269C1

SPACER,62.45mm ID x 66.48mm OD x 12.68mm L

bearing

1шт.

41

1286038C1

SPACER

bearing

1шт.

42

287679C1

BEARING ASSY,50.8mm ID x 26.91mm W

CONE - tapered roller bearing

1шт.

43

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

CUP tapered roller bearing

1шт.

44

1342622C1

BEARING HOUSING

CAGE bearing , Includes : Ref. 45

1шт.

45

1286084C1

PIN,12.02mm OD x 11mm L

dowel, 12 x 11 mm

1шт.

47

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 30 mm

4шт.

50

1286066C1

SHIM,149mm ID x 180mm OD x 0.08mm Thk

1шт.

50

1286067C1

SHIM,149mm ID x 180mm OD x 0.1mm Thk

1шт.

50

1286068C1

SHIM,149mm ID x 180mm OD x 0.13mm Thk

1шт.

50

1286069C1

SHIM,149mm ID x 180mm OD x 0.3mm Thk

1шт.

50

1286070C1

SHIM,149mm ID x 180mm OD x 0.76mm Thk

1шт.

51

1286087C1

TUBE

rear, low clutch

1шт.
