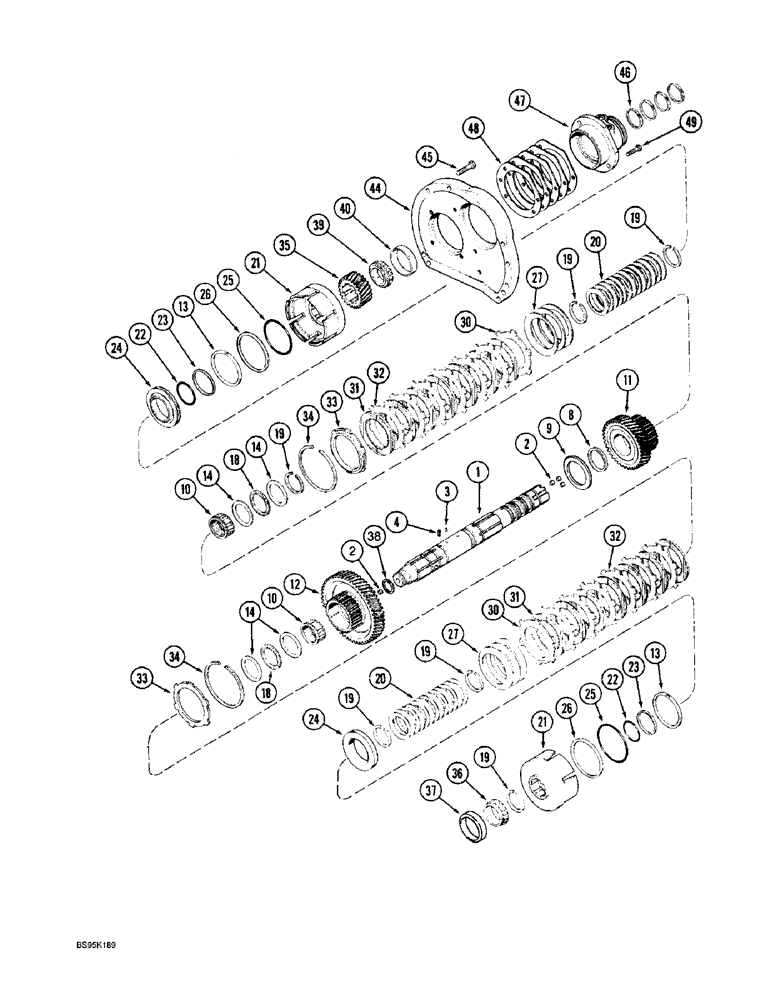

Запчасти Case IH 8910 (6-040) - TRANSMISSION, RANGE INPUT SHAFT (06) - POWER TRAIN

1

1997446C2

SHAFT ASSY.

SHAFT ASSEMBLY, input, Includes: Ref. 2 thru 4

1шт.

2

1342852C1

PLUG

sealing, 12 mm

4шт.

3

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

4

1963874C1

PIN,7.94mm OD x 14mm L, Slotted

coiled, 8 x 14 mm

1шт.

8

1286040C2

SEAL,63.6mm ID x 69.8mm OD x 6.5mm Thk

support

1шт.

9

1997888C1

THRUST WASHER,70.25mm ID x 95mm OD x 3.13mm Thk

WASHER thrust

1шт.

10

80909C1

BEARING ASSY,Needle, 63.49mm ID x 73.05mm OD x 38.1mm W

BEARING needle, caged

2шт.

11

1285977C1

GEAR

- driver, medium

1шт.

12

1285979C1

PINION

GEAR - drive, 52 teeth, high range

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal, clutch

2шт.

14

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER thrust

4шт.

18

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING needle

2шт.

19

93350C1

RING

retaining

6шт.

20

1286012C2

BELLEVILLE WASHER

Belleville spring

26шт.

21

1285972C2

CLUTCH HOUSING

CARRIER - clutch

2шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING piston, low clutch inner

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

piston, clutch, shift

2шт.

24

1285998C1

PISTON

clutch, shift

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING piston, low clutch outer

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift

2шт.

27

93129C1

BELLEVILLE WASHER

Belleville spring

6шт.

30

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction

2шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction

20шт.

32

92934C2

DISC

separator

18шт.

33

1342854C2

DISC

backing

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

RING retaining

2шт.

35

1285971C1

DRIVING GEAR

GEAR - driver, 22 teeth, low range

1шт.

36

A75211

ROLLER BEARING,1.9685" ID x 1.1024"

CONE tapered roller bearing

1шт.

37

A75210

BEARING CUP,3.5433" OD x 0.9055"

CUP tapered roller bearing

1шт.

38

116797C2

RING

seal

1шт.

39

ST2063

ROLLER BEARING,2.2505" ID x 4.4385" OD x 1.2015"

CONE tapered roller

1шт.

40

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

CUP tapered roller

1шт.

44

281696A1

SUPPORT

bearing, Replaces P/N 1285995C2

1шт.

45

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

6шт.

46

1286025C1

SEALING RING,Locking, 53.91mm ID x 57.91mm OD x 2.87mm Thk

sealing

4шт.

47

1342729C1

BEARING HOUSING

CAGE bearing

1шт.

48

1286061C1

SHIM,131mm ID x 170mm OD x 0.08mm Thk

Bearing 0.080mm Thk

1шт.

48

1286062C1

SHIM,131mm ID x 170mm OD x 0.1mm Thk

Bearing 0.100mm Thk

1шт.

48

1286063C1

SHIM,131mm ID x 170mm OD x 0.13mm Thk

Bearing 0.130mm Thk

1шт.

48

1286064C1

SHIM,131mm ID x 170mm OD x 0.3mm Thk

Bearing 0.300mm Thk

1шт.

48

1286065C1

SHIM,131mm ID x 170mm OD x 0.76mm Thk

Bearing 0.760mm Thk

1шт.

49

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 30 mm

3шт.
