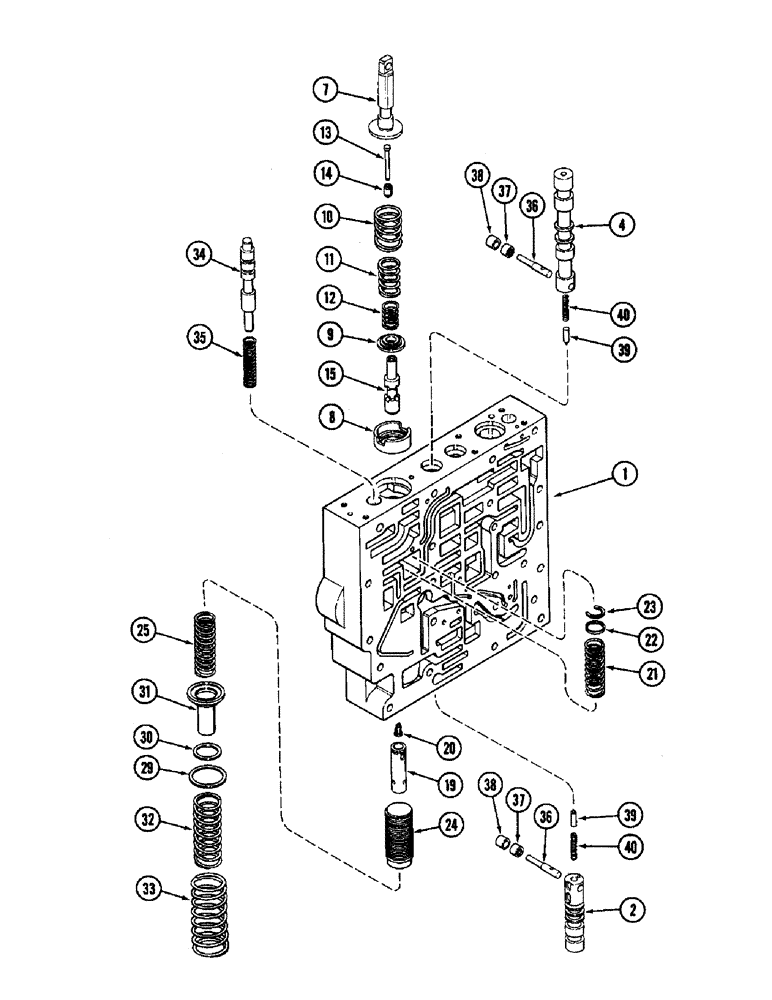

Запчасти Case IH 8910 (6-036) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION AND CLUTCH SPOOLS (06) - POWER TRAIN

103182A1

VALVE, CONTROL

VALVE ASSEMBLY - transmission control, without creeper, Includes: Ref. 1 thru 40

1шт.

103183A1

VALVE, CONTROL

VALVE ASSEMBLY - transmission control, with creeper, Includes: Ref. 1 thru 40

1шт.

1

1543207C3

BODY

ASSEMBLY - transmission control valve, see Figure 6-030

1шт.

2

93135C4

SPOOL

odd/even clutch selector

1шт.

4

93139C5

SPOOL

high/low selector

1шт.

109282A1

SPOOL

ASSEMBLY - control, clutch, Includes: Ref. 7 thru 15

1шт.

7

NSS

NOT SOLD SEPARAT

STEM - spool

1шт.

8

NSS

NOT SOLD SEPARAT

STOP - guide, control

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

10

1286194C2

VALVE SPRING

SPRING return

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - outer control

1шт.

12

1285738C1

VALVE SPRING

SPRING inner control

1шт.

13

1285739C2

PLUNGER

PIN - control, clutch

1шт.

14

1285740C1

PIN

spring

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - clutch

1шт.

19

1286135C1

SPOOL

reducing, no longer available order P/N 295768A1 spool and P/N 295767A1 retaining ring below, Includes: Ref.

1шт.

19

295768A1

SPOOL

reducing, must use P/N 295767A1 retaining ring with spool, Includes: Ref. 20

1шт.

20

133519C1

SCREEN

filter

1шт.

295767A1

RING, SNAP

RING retaining, use with P/N 295768A1 spool, not shown

1шт.

21

1286241C1

VALVE SPRING

SPRING reducting

1шт.

22

1286189C1

INSULATING WASHER

RING - spring retaining

1шт.

23

1286184C1

RING, SNAP

RING retainer

1шт.

24

92525C3

PISTON ASSY.

PISTON spool

1шт.

25

92530C1

SPRING

piston

1шт.

29

1286223C1

SHIM

spring, outer

1шт.

30

1286224C1

SHIM

spring, inner

1шт.

31

92534C2

GUIDE

spring, modulating

1шт.

32

1286242C1

VALVE SPRING

SPRING inner, modulating

1шт.

33

1286243C1

VALVE SPRING

SPRING outer, modulating

1шт.

34

92936C3

SPOOL

valve

1шт.

35

92976C1

VALVE SPRING

SPRING spool

1шт.

36

1286251C3

PIN

spool, cam

2шт.

37

K620272

BEARING, NEEDLE,Needle, 6.35mm ID x 11.11mm OD x 7.92mm W

BEARING reaction

2шт.

38

1286264C1

SPACER

bearing

2шт.

39

94781C2

LOCK PIN

PIN lock, selector

2шт.

40

94783C1

VALVE SPRING

SPRING lock pin

2шт.
