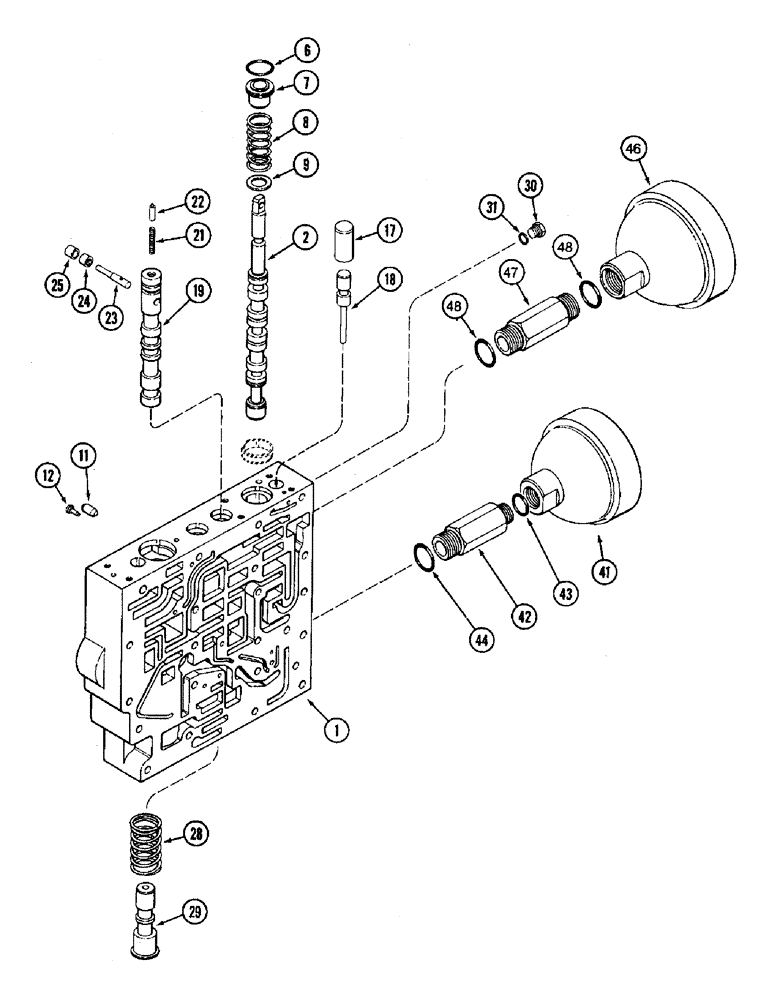

Запчасти Case IH 8910 (6-032) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION AND ACCUMULATORS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
103182A1
VALVE, CONTROL
VALVE ASSEMBLY - transmission control, without creeper, Includes: Ref. 1 thru 48
1шт.
103183A1
VALVE, CONTROL
VALVE ASSEMBLY - transmission control, with creeper, Includes: Ref. 1 thru 48
1шт.
1
1543207C3
BODY
ASSEMBLY - transmission control valve, see Figure 6-030
1шт.
2
93145C9
PISTON
SPOOL - forward/reverse
1шт.
6
238-5021
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
-021, 70 Duro, .926" ID x .070" Thk
1шт.
7
1963812C3
INSERT
SEAT - spring
1шт.
8
1963822C1
VALVE SPRING
SPRING detent
1шт.
9
1963818C1
WASHER
stop
1шт.
11
94771C2
PIN,10.01mm OD x 16.5mm L
stop
1шт.
12
94775C1
STOP
pin
1шт.
17
37-11224
DOWEL,3/4" x 1 1/2"
PIN dowel, 3/4 x 1-1/2 inch, hardened
1шт.
18
94798C4
PLUNGER
valve
1шт.
19
1981069C2
SPOOL
selector
1шт.
21
94783C1
VALVE SPRING
SPRING selector, lock pin
1шт.
22
94781C2
LOCK PIN
PIN lock
1шт.
23
1286251C3
PIN
spool
1шт.
24
K620272
BEARING, NEEDLE,Needle, 6.35mm ID x 11.11mm OD x 7.92mm W
BEARING reaction
1шт.
25
1286264C1
SPACER
bearing
1шт.
28
92971C1
VALVE SPRING
SPRING flow, sensor
1шт.
29
1286214C2
SPOOL
overlap
1шт.
30
9672438
PLUG,7/16" - 20 ORB
Incl. Ref. 31 Hex Hd, 7/16"-20 ORB
2шт.
31
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
41
117942A1
ACCUMULATOR
RESERVOIR ASSEMBLY - 15 cubic inch, 116 mm (4-9/16 inch) diameter
1шт.
42
1542910C1
FITTING
CONNECTOR - 7/8-14 x 1-1/16-12
1шт.
43
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
3/4 ID x 3/32 inch wide
1шт.
44
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
46
117941A1
ACCUMULATOR
RESERVOIR ASSEMBLY - 30 cubic inch, 130 mm (5-1/8 inch) diameter
1шт.
47
116371A1
FITTING
CONNECTOR - 1-1/16-12
1шт.
48
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
2шт.
Выбрано товаров: 29
