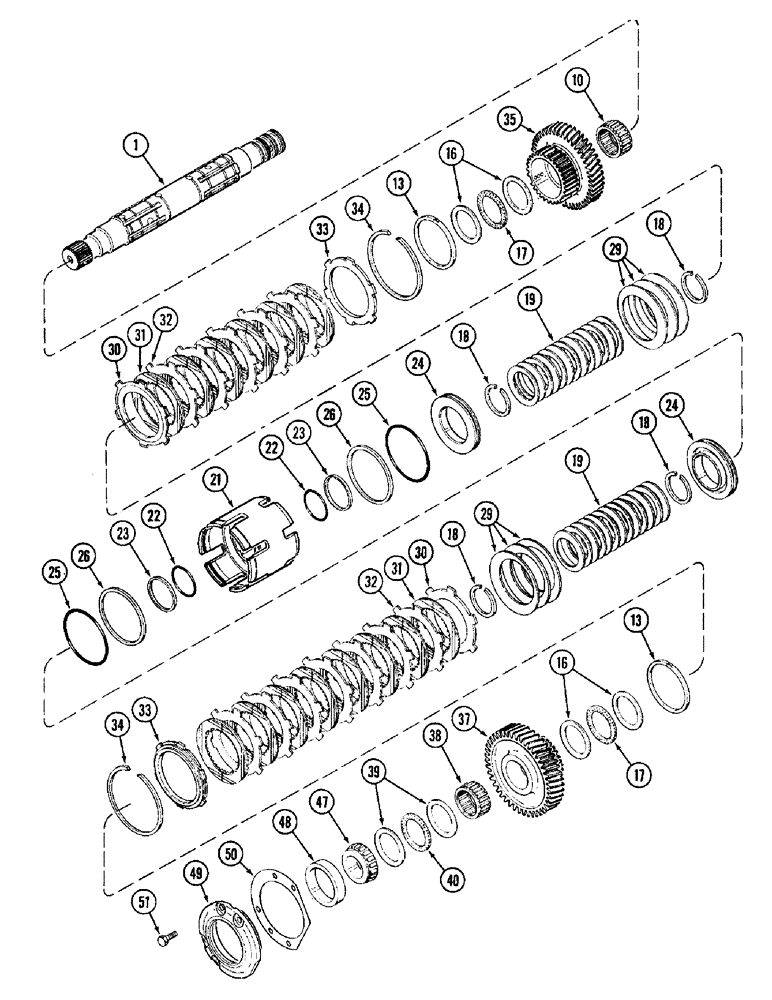

Запчасти Case IH 8910 (6-016) - TRANSMISSION SPEED, OUTPUT SHAFT AND REAR CLUTCH (06) - POWER TRAIN

1

230135A1

SHAFT

ASSEMBLY, Output, See Figure 6-014 for Pins and Plugs

1шт.

2

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1-3/4 ID x 1/8 inch Wide, Not Shown

1шт.

10

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

BEARING, Needle, Caged

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

Seal

2шт.

16

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER, Thrust

4шт.

17

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING, Needle, Thrust

2шт.

18

93350C1

RING

Retaining

4шт.

19

1286012C2

BELLEVILLE WASHER

Belleville Spring

26шт.

21

1285970C2

CLUTCH HOUSING

CARRIER, Clutch, First and Third

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING, Piston, Low Clutch Inner

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

Piston, Clutch

2шт.

24

1285998C1

PISTON

Clutch

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING, Piston, Low Clutch, Outer

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

Piston, Shift

2шт.

29

93129C1

BELLEVILLE WASHER

Belleville Spring

6шт.

30

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

Reaction

2шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Friction

14шт.

32

92934C2

DISC

Separator

12шт.

33

1342854C2

DISC

Backing

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

RING, Retaining

2шт.

35

1285984C1

GEAR

Driven, Third and Fourth, 39 Teeth

1шт.

37

1285982C1

DRIVEN GEAR

Driven, First and Second, 44 Teeth

1шт.

38

1285997C1

NEEDLE BEARING,57.14mm ID x 66.73mm OD x 38.1mm W

BEARING, Needle Caged

1шт.

39

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

WASHER, Thrust

2шт.

40

K620185

THRUST BEARING

BEARING, Needle, Thrust

1шт.

47

1286021C1

ROLLER BEARING,50.01mm ID x 21.99mm W

CONE, Tapered

1шт.

48

NSS

NOT SOLD SEPARAT

BEARING CUP, 110mm OD; Incl in 52

1шт.

49

1286001C3

ROLLER CAGE BEARING,101 mm ID x 170 mm OD x 15, 14.3 mm

Bearing

1шт.

50

1286061C1

SHIM,131mm ID x 170mm OD x 0.08mm Thk

Bearing 0.080mm Thk

1шт.

50

1286062C1

SHIM,131mm ID x 170mm OD x 0.1mm Thk

Bearing 0.100mm Thk

1шт.

50

1286063C1

SHIM,131mm ID x 170mm OD x 0.13mm Thk

Bearing 0.130mm Thk

1шт.

50

1286064C1

SHIM,131mm ID x 170mm OD x 0.3mm Thk

Bearing 0.300mm Thk

1шт.

50

1286065C1

SHIM,131mm ID x 170mm OD x 0.76mm Thk

Bearing 0.760mm Thk

1шт.

51

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

Hex, Full Threads, 10 - 1.5 x 25mm

4шт.

52

84356191

Incl 47, 48; Not Illustrated

TAPERED BEARING,110x22

1шт.
