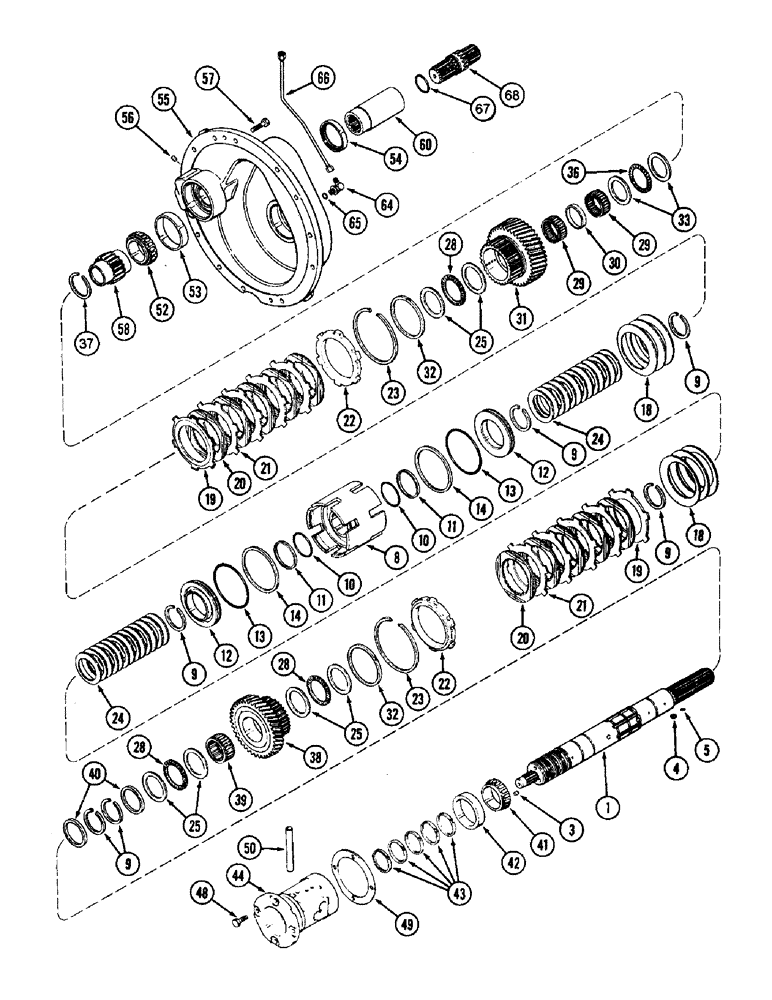

Запчасти Case IH 8910 (6-006) - TRANSMISSION SPEED, INPUT SHAFT WITH CREEPER (06) - POWER TRAIN

1

228398A1

SHAFT ASSY.

SHAFT ASSEMBLY input, Includes: Ref. 3 thru 5

1шт.

3

1342851C1

PLUG

sealing, 10 mm

4шт.

4

1963888C1

PIN,12.7mm OD x 14mm L

slotted spring

2шт.

5

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

8

220617A1

CARRIER

- clutch

1шт.

9

93350C1

RING

retaining

6шт.

10

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING piston, low clutch inner

2шт.

11

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

piston, clutch

2шт.

12

1285998C1

PISTON

clutch

2шт.

13

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING piston, low clutch outer

2шт.

14

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift

2шт.

18

93129C1

BELLEVILLE WASHER

Belleville spring

6шт.

19

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction

2шт.

20

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction

10шт.

21

92934C2

DISC

separator

8шт.

22

1342854C2

DISC

backing

2шт.

23

1285996C1

SNAP RING,151mm OD, Internal

RING retaining

2шт.

24

1286012C2

BELLEVILLE WASHER

Belleville spring

26шт.

25

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER thrust

6шт.

28

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING needle, thrust

3шт.

29

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

BEARING needle, caged

2шт.

30

93297C1

SPACER,62.45mm ID x 66.48mm OD x 9.98mm L

bearing

1шт.

31

1342495C1

DRIVEN GEAR

GEAR - second, fourth and sixth (37 teeth)

1шт.

32

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal

2шт.

33

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

WASHER thrust

2шт.

36

K620185

THRUST BEARING

BEARING needle, thrust

1шт.

37

92793C1

RING

retaining

1шт.

38

1285985C1

GEAR

GEAR odd/even clutch and fifth, 34 teeth

1шт.

39

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

BEARING needle caged

1шт.

40

1286039C1

SPACER

bearing

2шт.

41

364465C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

CONE tapered roller bearing

1шт.

42

258452C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

CUP tapered, roller, bearing

1шт.

43

1286026C1

SEALING RING,Locking, 59.41mm ID x 63.41mm OD x 2.87mm Thk

seal

5шт.

44

1981213C1

NEEDLE BEARING CAGE,63.1 mm ID x 113.95 mm OD x 156.6 mm

CAGE bearing

1шт.

48

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 30 mm

4шт.

49

1286071C1

SHIM,115mm ID x 148mm OD x 0.08mm Thk

Bearing 0.080mm Thk

1шт.

49

1286072C1

SHIM,115mm ID x 148mm OD x 0.1mm Thk

Bearing 0.100mm Thk

1шт.

49

1286073C1

SHIM,115mm ID x 148mm OD x 0.13mm Thk

Bearing 0.130mm Thk

1шт.

49

1286074C1

SHIM,115mm ID x 148mm OD x 0.3mm Thk

Bearing 0.300mm Thk

1шт.

49

1286075C1

SHIM,115mm ID x 148mm OD x 0.76mm Thk

Bearing 0.760mm Thk

1шт.

50

1981207C1

TUBE,15.913 mm OD

lube

1шт.

52

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE tapered roller, 2-1/4 inch ID

1шт.

53

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP tapered roller bearing

1шт.

54

108935A1

SEAL,60.33mm ID x 79.38mm OD x 9.5mm Thk

shaft

1шт.

Part of 108934A1 Service Kit

1шт.

55

92837C2

SUPPORT ASSY.

SUPPORT ASSEMBLY, bearing, Includes: Ref. 56

1шт.

56

37-188

DOWEL,1/2" x 1/2"

PIN dowel, hardened, 1/2 x 1/2 inch, Replaces: P/N 20229R1

8шт.

57

613-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

Replaces P/N 615-12040

11шт.

58

92794C1

PINION

GEAR - creeper, 17 teeth

1шт.

60

228465A1

SPLINED COUPLING

COUPLING shaft input

1шт.

64

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 65

1шт.

65

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Includes Ref. 66

1шт.

66

311670A1

TUBE

supply, lube, Replaces: P/N 92836C1

1шт.

67

108932A1

O-RING,1.609" ID x 1.887" OD x 0.139"

- 40.87 ID x 3.53 mm wide

1шт.

Part of 108934A1 Service Kit

1шт.

68

108933A1

SHAFT

driven, damper, with 4.45 mm wide O-ring groove

1шт.

Part of 108934A1 Service Kit

1шт.

108934A1

KIT

service, Includes: Ref. 54, 67 and 68

1шт.
