(5-040) - FRONT WHEELS, TWO WHEEL DRIVE TRACTOR

Запчасти Case IH 8910 (5-040) - FRONT WHEELS, TWO WHEEL DRIVE TRACTOR (05) - STEERING

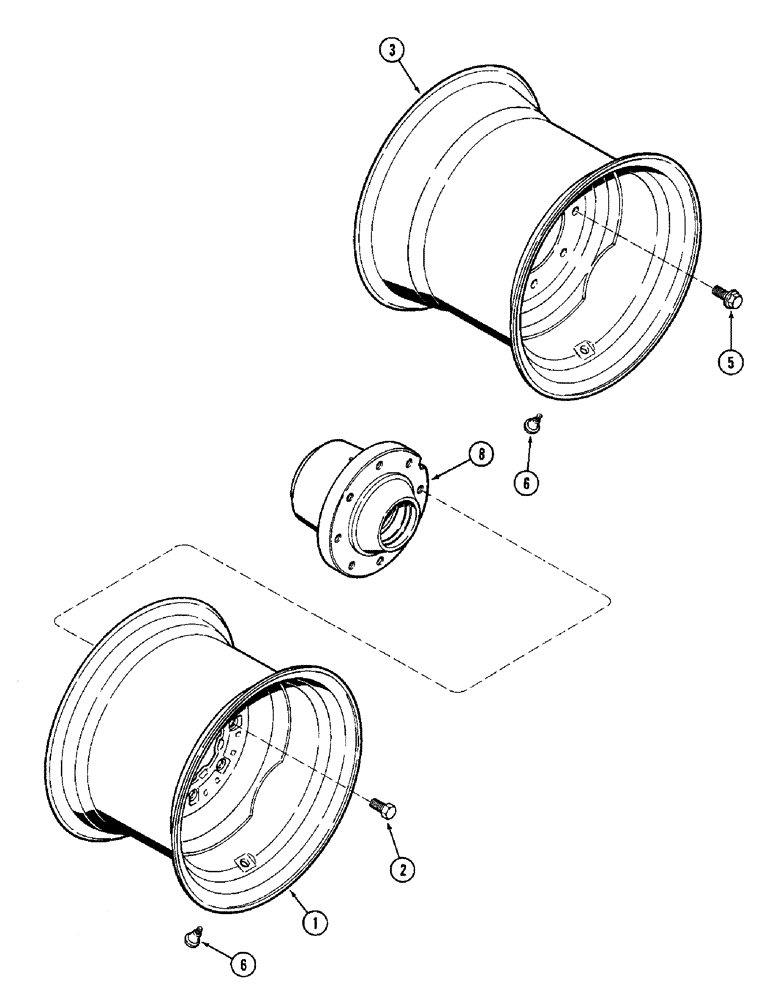

Схема запчастей Case IH 8910 - (5-040) - FRONT WHEELS, TWO WHEEL DRIVE TRACTOR (05) - STEERING
6
2
1
8
5
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1270630C1

RIM

WHEEL front, W10L x 16, for 11.00 x 16 tire

2шт.

2

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - guide wheel

16шт.

3

1270629C1

RIM

WHEEL front, W11L x 16.1, for 14L x 16.1 tire

2шт.

3

1270628C1

RIM

WHEEL front, W14L x 16.1, for 16.5L x 16.1 tire

2шт.

5

1342033C1

BOLT

- hex, flange, special

16шт.

6

A38261

VALVE

stem, tire inflation

2шт.

8

1259528C1

HUB

ASSEMBLY - wheel, see Figure 5-022

2шт.
