Запчасти Case IH 8910 (5-038) - STEERING CYLINDER ASSEMBLY, MFD TRACTOR (05) - STEERING

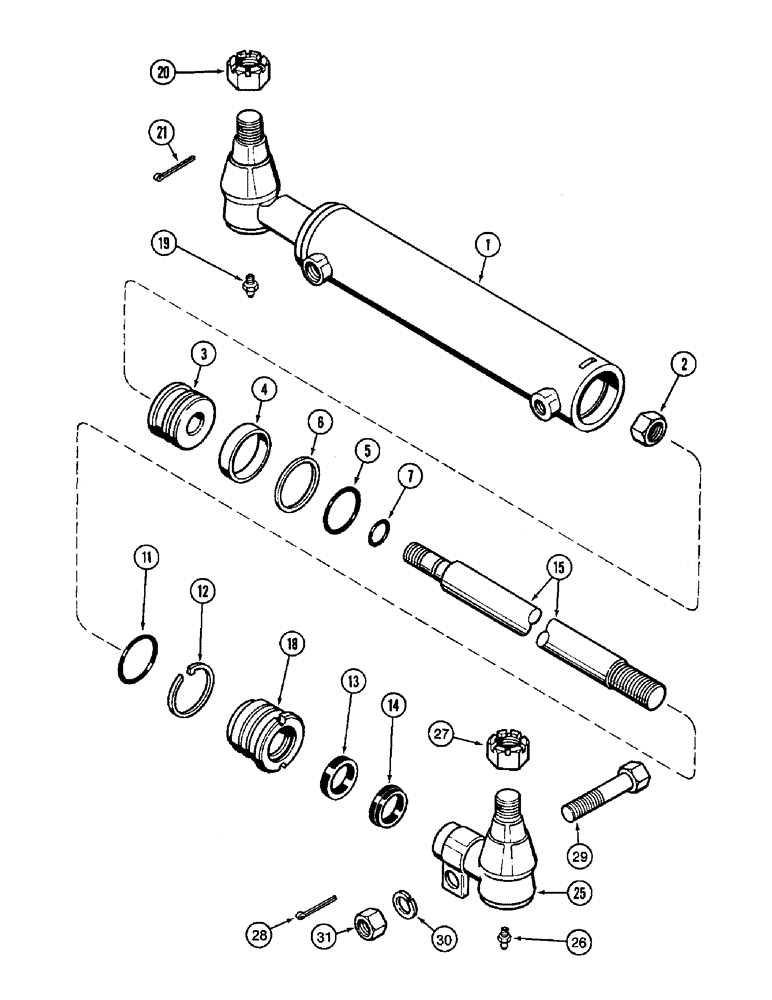

Схема запчастей Case IH 8910 - (5-038) - STEERING CYLINDER ASSEMBLY, MFD TRACTOR (05) - STEERING
14
4
11
28
30
18
20
25
29
15
6
13
26
5
21
19
12
27
3
2
31
1
7

Артикул

Название

Примечание

Количество

243302A1

AXLE, FRONT

AXLE ASSEMBLY - front, 30 kph, 4:10 ratio, see Figures 5-028 thru 5-038, If used, Includes: carrier assemblies and Ref. 1 thru 31

1шт.

243302A2R

REMAN-FRT AXLE wo DL

REMAN-FRONT AXLE REMANUFACTURED - Axle - 8910/20 11/96 Production Starting SN JJA0072001 30 KPH

1шт.

243302A2C

CORE-FRONT AXLE

Return Part Number

1шт.

243301A1

AXLE, FRONT

AXLE ASSEMBLY - front, 40 kph, 3:73 ratio, see Figures 5-028 thru 5-038, If used, Includes: carrier assemblies and Ref. 1 thru 31

1шт.

243301A2R

REMAN-AXLE

REMAN - Axle - 7210/20 Production 2/92 & 2/96. 7210/20 Prod. 2/97 & 8910/20 11/96 Starting S/N JJA0072001 40 KPH

1шт.

243301A2C

CORE-AXLE

Return Part Number

1шт.

231007A1

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, 51 (2) ID x 229 mm (9 inch) stroke, left-hand, Includes: Ref. 1 thru 21

1шт.

231008A1

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, 51 (2) ID x 229 mm (9 inch) stroke, right-hand, Includes: Ref. 1 thru 21

1шт.

435663A1R

REMAN-HYD CYLINDER

8910, 8920, Right Hand Cyl., Reman For New P/N's 231008A1 & 435663A1

1шт.

435663A1C

CORE-HYD CYLINDER

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1282023C1

LOCK NUT

NUT hex lock, cylinder rod

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, order P/N 231007A1 for left-hand cylinder assembly or P/N 231008A1 for right-hand cylinder assembly

1шт.

247612A1

SEAL KIT

KIT - seal cylinder repair, Includes: 4 thru 14

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - wear

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - outer

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - lock

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

15

231009A1

PISTON ROD

ROD cylinder, right-hand, shown

1шт.

15

231010A1

PISTON ROD

ROD cylinder, left-hand

1шт.

435662A1R

REMAN-HYD CYLINDER

8910, 8920 Both (1/97-12/98), Reman for New P/N 231007A1

1шт.

435662A1C

CORE-HYD CYLINDER

Return Number

1шт.

18

NSS

NOT SOLD SEPARAT

GLAND - cylinder, order: P/N 231007A1 for left-hand cylinder assembly or P/N 231008A1 for right-hand cylinder assembly

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

20

429-1314

NUT,7/8"-14, G8

NUT hex, slotted, 7/8 inch NF, grade 8

1шт.

21

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

25

1277261C1

BALL JOINT

JOINT ASSEMBLY - cylinder, Includes: Ref. 26 thru 28

2шт.

26

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

27

429-1314

NUT,7/8"-14, G8

NUT hex, 7/8 inch NF, grade 8

1шт.

28

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

29

414-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

BOLT - hex, 5/8 NF x 2-3/4 inch

2шт.

30

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1110

NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

Выбрано товаров: 37
