Запчасти Case IH 7250 (4-014) - CAB HEADLINER HARNESS (04) - ELECTRICAL SYSTEMS

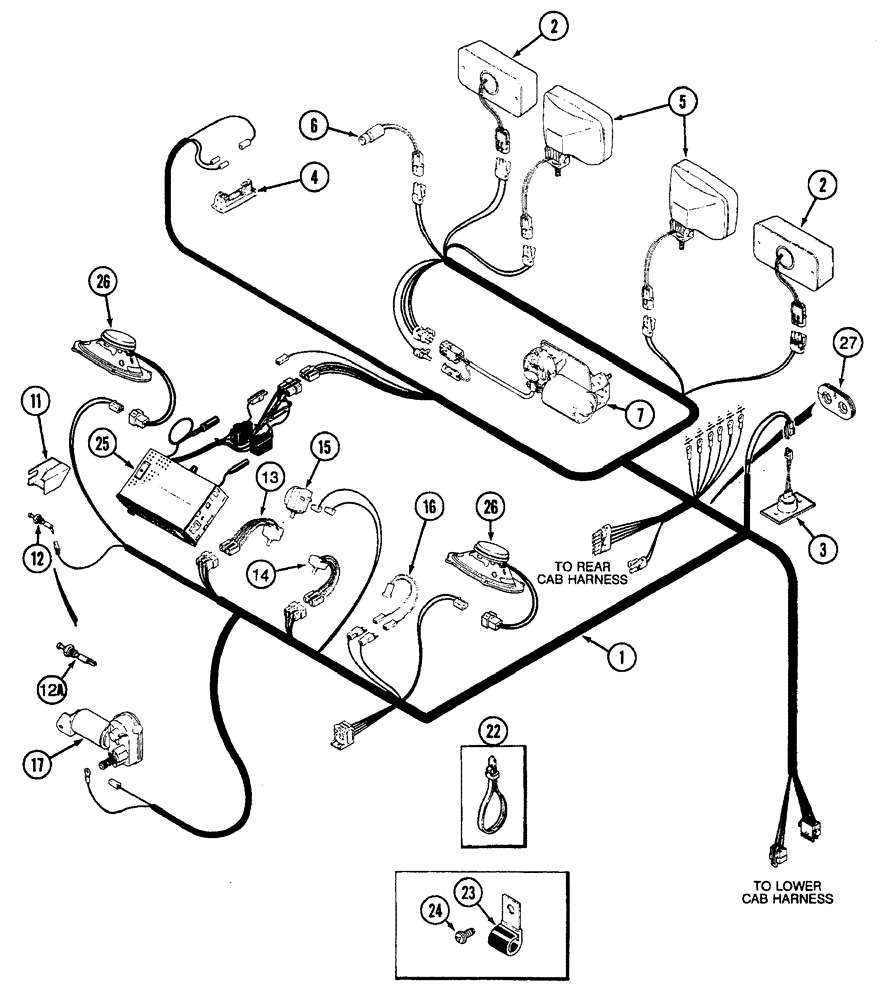

Схема запчастей Case IH 7250 - (4-014) - CAB HEADLINER HARNESS (04) - ELECTRICAL SYSTEMS
22
4
15
25
6
26
11
13
24
2
5
17
12a
1
27
3
7
23
16
12
2
14
26

Артикул

Название

Примечание

Количество

1

1964559C2

HARNESS

headliner, no longer available, order 140646A1 harness and 136893A1 door dome lamp switch, items 1A and 12A

1шт.

Speakers have different connectors If unit is equipped with round speakers and the headliner harness needs replaced, order 140646A1 headliner harness and (2) 195551A1 adapter harness.

1шт.

1a

140646A1

HARNESS

headliner, not shown, see page 4-45 for speaker adapter harness

1шт.

Speakers have different connectors If unit is equipped with round speakers and the headliner harness needs replaced, order 140646A1 headliner harness and (2) 195551A1 adapter harness.

1шт.

2

92185C1

LIGHT ASSY.

LAMP ASSEMBLY - warning, flasher, parts list Figure 4-36

2шт.

3

83882C91

LAMP

ASSEMBLY - console illumination, parts list Figure 4-40

1шт.

4

1983391C1

LAMP,12V, 10W

dome, parts list Figure 4-40

1шт.

5

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

ASSEMBLY - flood, parts list Figure 4-40

2шт.

6

122579A1

SWITCH, A/C LOW PRES

Low, air conditioning

1шт.

7

A186256

WIPER MOTOR,12V

12 volt, windshield

1шт.

11

1977350C1

COVER

switch, door

1шт.

12

245175C1

SWITCH

door, dome lamp, with bent blade terminal, if used

1шт.

12a

136893A1

SWITCH

door, dome lamp, with straight male blade terminal, if used

1шт.

13

92115C2

SWITCH

wiper, windshield

1шт.

14

92100C2

SWITCH

blower

1шт.

15

92101C1

SWITCH

thermostat

1шт.

16

1964672C1

LIGHT

indicator, amber, 14 volt, air conditioning shut down

1шт.

17

F93209

WIPER MOTOR

MOTOR, WIPER ASSEMBLY - rear, parts list Figure 4-48

1шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

23

97249C1

CLIP

CLAMP - harness

2шт.

24

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

self-tapping, truss head, No. 10-16 x 3/4 inch, polyseal

2шт.

25

REF

INSTRUCTION

RADIO - entertainment, see Figure 4-44

1шт.

26

REF

INSTRUCTION

SPEAKER - radio, see Figure 4-44 for correct speakers and adapter harness

2шт.

27

97039C1

GROMMET

windshield upper channel

1шт.
